25m/Min 3 Phases 482mm Shutter Door Roll Forming Machine

25m/Min 3 Phases 482mm Shutter Door Roll Forming Machine
25m/Min 3 Phases 482mm Shutter Door Roll Forming Machine 25m/Min 3 Phases 482mm Shutter Door Roll Forming Machine 25m/Min 3 Phases 482mm Shutter Door Roll Forming Machine 25m/Min 3 Phases 482mm Shutter Door Roll Forming Machine

Large Image :  25m/Min 3 Phases 482mm Shutter Door Roll Forming Machine

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD35000---40000
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 20 sets/month

25m/Min 3 Phases 482mm Shutter Door Roll Forming Machine

Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Voltage: 380V 50Hz 3 Phases
Condition: New Weight: 5T
Use: Roller Shutter Door Roll Forming Machine Warranty: 12 Months
Tile Type: Twin Lath Roller Shutter Slat Roll Forming Machine
High Light:

25m/min Shutter Door Roll Forming Machine

,

482mm Shutter Door Roll Forming Machine

,

5.5kw Shutter Door Roll Forming Machine

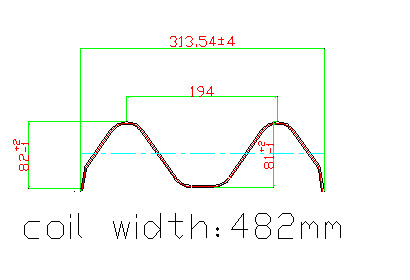

1. The profile drawing

Highway Guardrail Traffic Facility Crash Barrier Roll Forming Machine

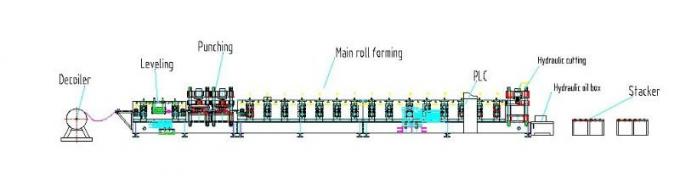

2. Working flow:

Uncoiler—Feeding—Leveling---Hole punching—Roll forming----Hydraulic cut to length—Output table

Highway Guardrail Traffic Facility Crash Barrier Roll Forming Machine

3. Main component:

1) Decoiler

Hydraulic de-coiler
Single unrolling machine, one side can put material
Adopt automatic hydraulic system
Coil weight (Max): 5000kg
Coil dia (Max): 1600mm
Oil cylinder dia: 1200mm working pressure: 10mpa
Coil Width (Max.): 500mm
Working speed: 0-25m/min
Power: 5.5KW



2) Feeding and leveling system

Feed the coil into to guide wheel (can right and left adjust)

Leveling is three roller above and four roller below, quenched and chrome coated 0.05mm



3) Punching system(adjustable)

Hydraulic punching

Oil cylinder dia: 140mm

Working pressure: 20mpa

Mould material: Cr12 quenched 58°-62°

Hydraulic power: 7.5kw



4) Roll forming machine

Main motor power: 45kw

Total weight: About 15tons

Drive: Gearbox driving with universal joint

Main shaft dia: 100mm material: 45 forge steel

Roller material: GCR15 quenched 58°-62°,chrome coated 0.05mm

Roll station:16stations

Raw material: Black steel and galvanized steel, thickness: 2.5-3mm

Working speed: 6m--14m/min(Exclude punching time)

PLC: Panasonic, made in Japan 380V 50HZ

Computer operating panel: Touching screen

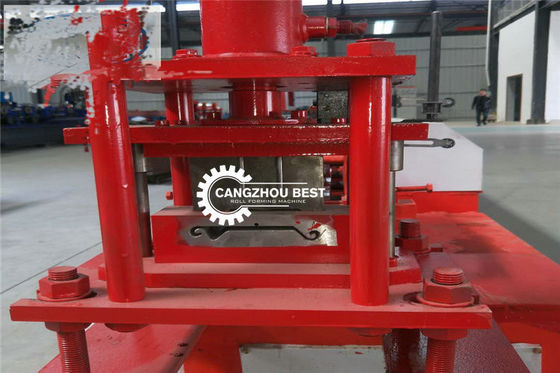

5) Cutting system

Hydraulic cutting

Blade material: Cr12,quenched 58°-62°

Oil cylinder dia: 250mm

Working pressure: 30mpa
