Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Condition: | New |
|---|---|---|---|
| New: | 380V 50Hz 3phases | Weight: | 11T |

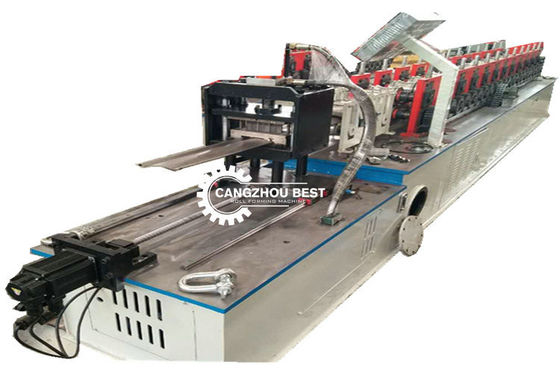

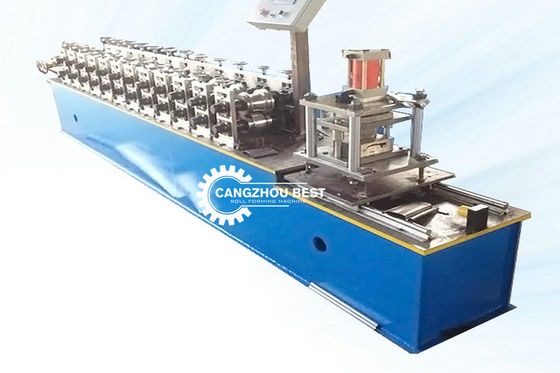

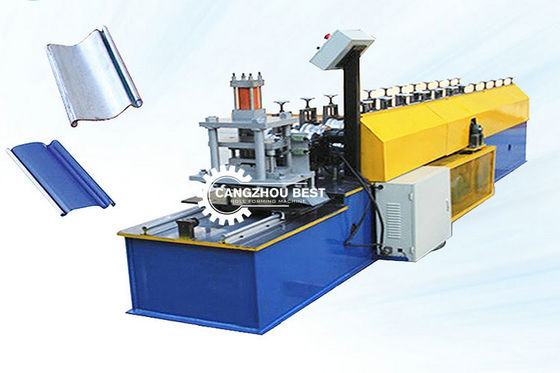

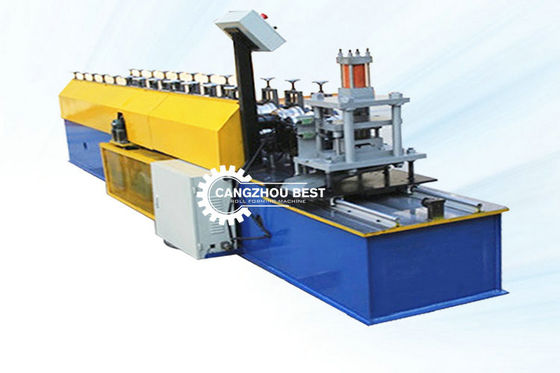

| Use: | Roller Shutter Door Roll Forming Machine | Tile Type: | Colored Glaze Steel |
| High Light: | 5T Garage Door Roll Forming Machine,3kw Garage Door Roll Forming Machine,350mm Garage Door Roll Forming Machine |
||
Specifications:
| Configurations |
Decoiling---Loading---Molding---Automatic cutting off---Discharging N.B: you can choose the Perforation machine and punching part as your demand. |
|
| Material | Raw material | colored steel plate, galvanized plate, or aluminum plate |
| Thickness | 0.4 – 1.2 mm (As customer`s need) | |
| Feeding width | 500mm (According to customer`s profile) | |
| Material hardness: | 550 Mpa---350 Mpa | |
| Manual Uncoiler | Inner Diameter | 200-300mm |
| Max Coil width | 350mm | |
| Capacity | 5T | |
| Servo feeding and Punching part | Servo feeding power | 3kw |
| This part to punch the hole, you can change the dies to punch different holes. | ||
| Punching | 42T | |
| Die material | Gcr12MoV quenched | |
|
Main Forming machine |
Forming steps | 20 stations ( Depend on Profiles ) |
| Shaft diameter | Φ50mm | |
| Shaft material | Quenched hardness 58-62 | |
| Design type | Middle plate welded | |
| Transmission | Chain box (Chain and gear box depend on thickness and customer`s need) | |
| Machine frame | 350# H steel welded; Steel plate welded/ Memorial arch frame type | |
| Roller material | Fine steel precision work processing of GCr15,Roller datum roller diameter φ120,Maximal roller diameter:φ200 | |
| Shaft material | 45# steel with tempering | |
| Cutting blade material | Gcr12MoV quenched | |
| Working speed | 8-10m/min | |
| Power of machine | 7.5KW (According to the thickness) | |
| Type of cutting | Pneumatic flying saw cutting off | |
| Cutting tolerance | 10m+/-0.5mm | |
| Material of blades | Cr12Mov, herd steel HRC 58-62℃ | |
| Cutter quantity | 1 set | |
| Working pressure | 20MPA | |
| Other Spare part | Weight | About 12 ton |
| Dimension | 16000mmX1000mmX900mm | |
| Main body color | As required | |
| Voltage | 380v/50hz/3ph(or as required) | |
| Spare cutting blade | One piece | |
| Fuse | 2 pieces | |
| Relay | 2 pieces | |
| Travel switch | 2 pieces | |
| Solenoid valve | 1 pieces |
