Product Details:
|
| Name: | Professional Customized Double Layer Corrugated Roofing Sheet Roll Forming Machine | Color: | As Your Require |
|---|---|---|---|
| Material: | PPGI GI | Shaft: | 70mm |
| Voltage: | 380V/50HZ/3PHASE | Warranty: | 2 Year |
| High Light: | 70mm Roofing Sheet Roll Forming Machine,1500mm Roofing Sheet Roll Forming Machine,15m/min Roofing Sheet Roll Forming Machine |
||

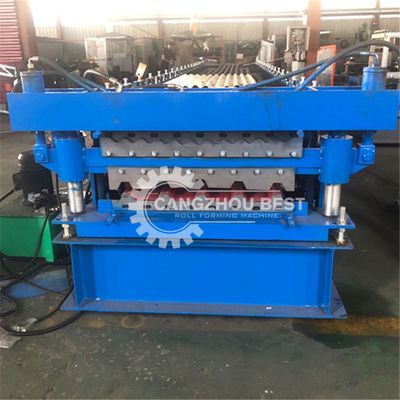

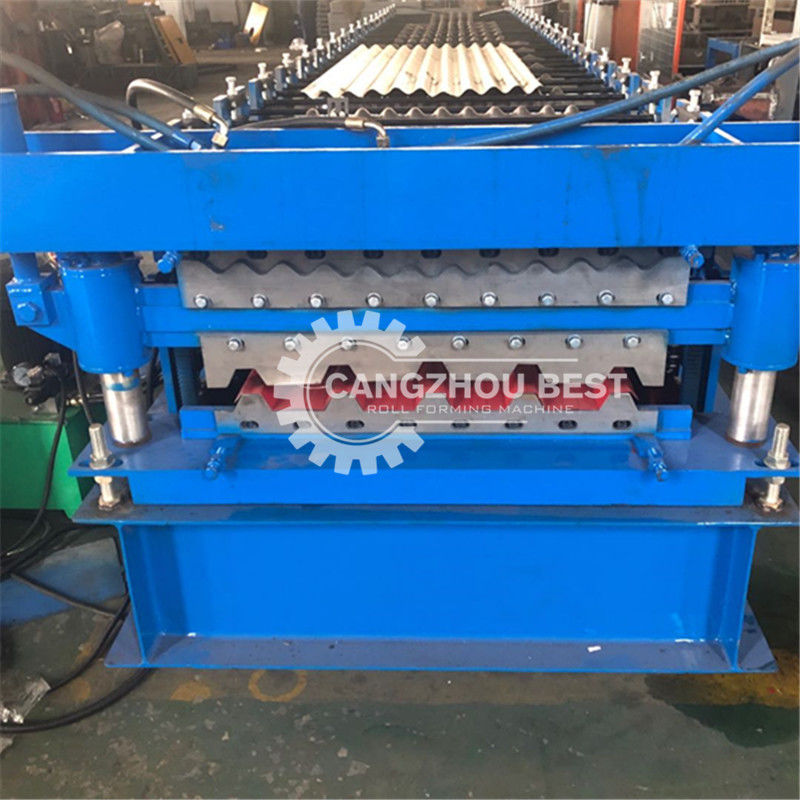

Professional Customized Double Layer Corrugated Roofing Sheet Roll Forming Machine
1. Main structure
a) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is screw which make the machine flexible and stronger.
b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
d) It is very easy to install the equipment and suitable for producing in the factory.
e) Low noise with high efficiency
Machine Component
| Decoiler | 2set |
| Roll Forming | 1set |
| Cutting Device | 1set |
| Hydraulic Pump | 1set |
| PLC Control Box | 1set |
| Output Table | 1set |
Work Flow
Decoiler------feeding------roll forming------cut to length-----output table
Decoiler
|
Max Width |
1500mm |
|
Inner Diameter |
450-550mm |
| Out Diameter | 1500mm |
| Capacity | 5000kg |
| Type | Manual Or Hydraulic |
2. Technical Data
| Material Thickness | 0.3—0.8mm |
| Un Coiler | 3 tons manual |
| Rolling Speed | 10-15m/min |
| Roller Stations | 18 stations |
| Roller material | 45# steel, coated with chrome |
| Maim Motor Power | 7.5kw |
|
Hydraulic cutting Power
|
4kw |
| Material Of Cutting | CR12 with quench treatment |
| Hardness | HRC58-62 |
| Tolerance | +-1.5mm |
| Electric Source |
380V, 50HZ,3 phase Also can satisfy customer’s require |
| Control System | PLC with touch screen |
| Way Of Drive | 1.2 inch single chain |

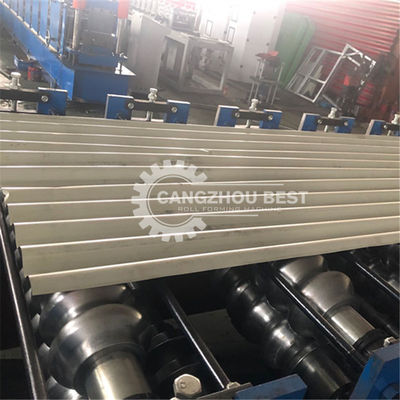

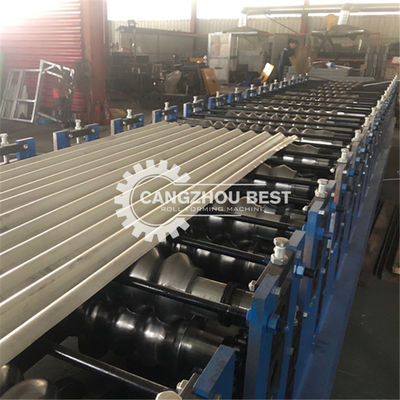

Roll Forming Machine
Material Thickness: 0.3-0.8mm PPGI and GI
Roller Stations:up16groups down20groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
Frame panel thickness: 20mm
Bottom frame: 36# H-section steel
Motor Power: 5.5kw
Diameter of shaft: 70mm
Shaft Material: 45# steel
Driven type: 1.0＂Chain
Cutting Device
Material for Cut-Off Modular:Cr12 steel after treatment
Hardness for Heat Treatment:HRC55 – 60°
Cut-Off Type: Hydraulic, Automatic Cut-Off
Motor for Hydraulic Stand: 3 kW
PLC Control Box
| Type |
PLC Frequency Control System with touch screen |
|
PLC Brand |
Delta |
|
Encoder Brand |
Omron |
|
Length Error |
±2mm |
|
Language |
English and Chinese |
Hydraulic Pump
Motor power: 3 kw
Oil type: 46# hydraulic oil
Pump brand: China brand
Packing Detall
1*40 GP container ; main machine naked and fastened with iron wire in the container.
2. rollers were painted with oil and packed with plastic film.
3. electrics devices be packed with wooden box.for Standard export packing.
4. All Components Fixed by steel wire with Container.
Our Service
| Pre-Sales-Service |
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face. Without visiting, we will send you user manual and video to teach you to install and operate. |
| After-Sales-Service |
Training how to instal the machine, training how to use the machine. Engineers available to service machinery overseas. If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things. |
