Product Details:
|
| After-sales Service Provided: | 380V 50Hz 3phases | Condition: | New |
|---|---|---|---|
| Weight: | 5T | Use: | Roller Shutter Door Roll Forming Machine |
| Tile Type: | Colored Glaze Steel | Voltage: | 380V 50Hz 3phases |
| High Light: | PPGI Cold Roll Former,0.6mm Cold Roll Former,30m/min Cold Roll Former |
||
Machine parameters of trapezoidal panel roll forming machine
| NO | Type | Specification | |
| 1 | Raw material | Type | PPGI |
| Thickness | 0.3-0.6 mm | ||

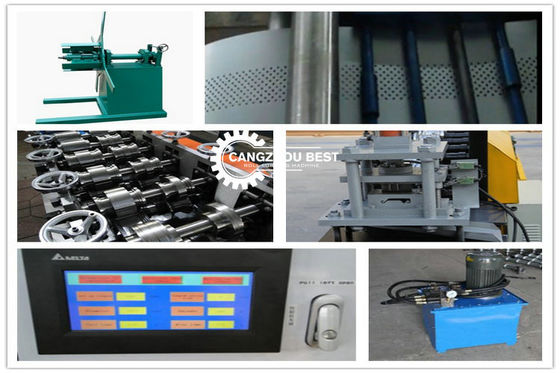

| 2 | Decoiler | Operation | Manual |
| Weight apacity | 5 Tons | ||

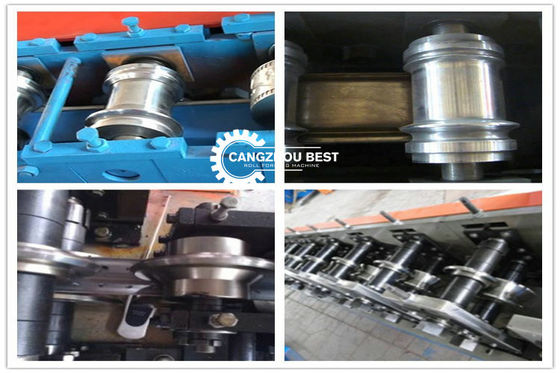

| 3 | Main body | Roller station | 13 row |
| Diameter of shaft | 70 mm | ||
| Shaft material | 45# with 0.05mm chrome | ||
| Roller material | Cr 12 Mov steel | ||
| Type | Chinese type | ||
| Frame | 300mm C-beam | ||
| Frame thickness | 16 mm | ||
| Material | Cr 12 | ||
| Operation | Hydraulic automatic | ||
| Working speed | 10-30m/min | ||
| 4 | Power | Driving way | 1 inch chain |
| Main motor | 5.5 KW | ||
| Voltage | 380V/50HZ, 3 phase | ||
| 5 | Control box | Electric box | PLC control system, inventer |
| PLC brand | Delta made in Taiwan | ||
| Inverter brand | Delta made in Taiwan | ||
| Language | Chinese and English | ||
