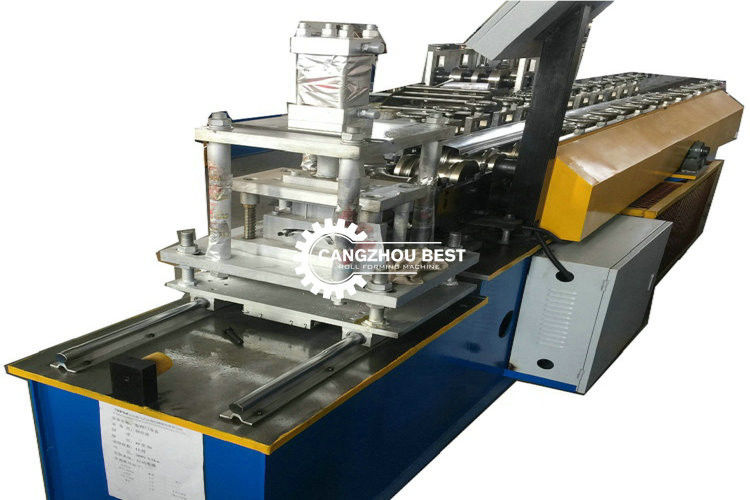

Product Details:
|
| Tile Type: | Twin Lath Roller Shutter Slat Roll Forming Machine | Control System: | PLC(imported Brand) |
|---|---|---|---|
| Usage: | Roller Shutter Door | Power(w): | Frequency Speed Control |
| Cutting: | Hydraulic Cutting | ||
| High Light: | Shutter Slat Roll Forming Machine,4kw Slat Roll Forming Machine,1.2mm Slat Roll Forming Machine |
||
Main Specifications
| Description | offered specification |
| Material thickness | 0.7-1.2mm |
| Raw material | Galvanized coils yield strength ≤G250MPa |
| Forming speed | 8-15m/min |
| Decoiler | 3 Ton passive decoiler |
| Material of main shaft | 45# high quality steel |
| Levelling device | 7 roller levelling including 3 top rollers and 4 bottom rollers |
| Cutting | hydraulic cutting; quenching HRC58-62 |
| Motor power of hydraulic station | 4kw |
| Hydraulic station pressurre | 12Mpa |
| Tolerance | 6m+-1.5mm |
| Machine Frame | H Beam Steel |

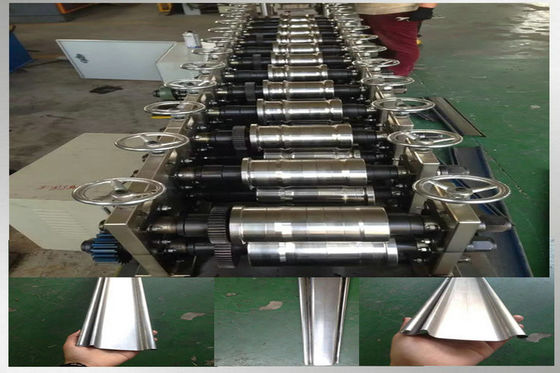

Working flow
De-coiler—→level device—→main roll forming machine—→ hydraulic cutting—→ run out table

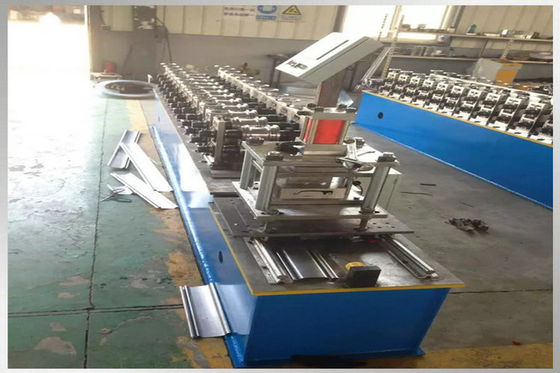

Machine component
3T Passive De-coiler
Diameter: 460-520mm expansion.
Expansion: Manually
Capacity: 3000kg
Leveling device
1.7 rolls leveling, 3 rolls up and 4 rolls down
2.Diameter is Ø 70mm, chrome and HRC60 heat treatment to secure the smooth surface
3.Max Leveling Raw Material width: 300mm
Hydraulic station
1. hydraulic station pressure: 12MP
2. power of hydraulic station: 4KW
Hydraulic Cutting
1. The cutter blade material: Cr12mov HRC58-62 degree
2. Blades number: 1 set
3. Cutting after forming: Cut the sheet after roll forming to required length
4. Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
5. Material of blade: CR12with heat treatment
6. Length measuring: Automatic length measuring
7. Tolerance of length: 6m+/- 0.5mm
Control Box
(1)Power supply: 380 V, 50 Hz, 3Phase (adjusted with the requirement)
(2)Length & quantity measurement automatically;
(3)Length & quantity controlled by PLC
(4)Length inaccuracy can be amended easily.
(6).Control panel: Button-type switch and touch screen
(7)Unit of length: millimeter (switched on the control panel)
Output Table
Length : 2m
Quantity: 2 units

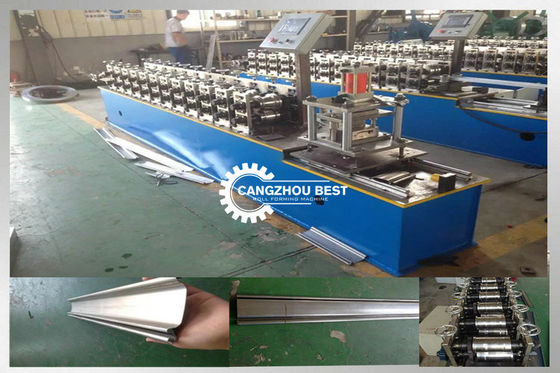

Standard Profile and Drawing
