Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V 50Hz 3phases |
|---|---|---|---|
| Ondition: | New | Weight: | 5T |
| Tile Type: | Twin Lath Roller Shutter Slat Roll Forming Machine | Ontrol System: | PLC(imported Brand) |
| High Light: | 1.5mm Shutter Door Roll Forming Machine,135mm Shutter Door Roll Forming Machine,75mm Shutter Door Roll Forming Machine |
||
Australia Type Shutter Door 12 Roller Stations Roll Forming Machine With PLC Control System
Door Rail Technical Parameter
Suitable steel plate |
Type |
Color steel plate |
thickness |
0.8-1.5mm |
|
Feeding width |
135mm | |
Effective width |
75mm | |
Production speed |
8-12m/min | |
Roller stand |
14 rows |
|
Main power |
5.5kw |
|
Pump power |
3kw |
|
Roller material |
Carbon Steel 45# |
|
Blade material |
Cr12, qunched, Cr-plating size 0.05mm |
|
Control system |
PLC Delta Inverter |
|
Main structure of the machine |
300mm H-Beam |
|
Door Rail Main Components
| S.N | Equipment name | Quantity |
| 1. | 3T passive un-coiler | 1 set |
| 2. | Feeding and leveling device | 1 set |
| 5. |
Main roll forming machine 12 stations drived by chain
|
1 set |
| 6. | Hydraulic cutting | 1 set |
| 7. | Control system (including control box) | 1 set |
| 8. | Out tables | 2 sets |
Working Flow of Door Rail
Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables
Profiles of Door Rail

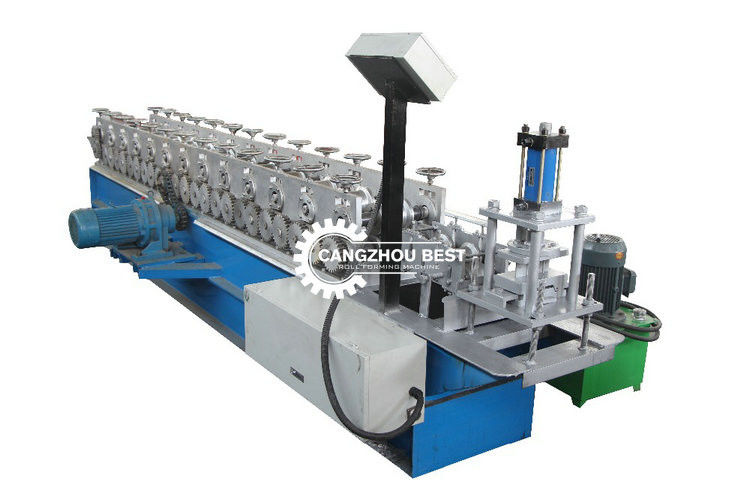

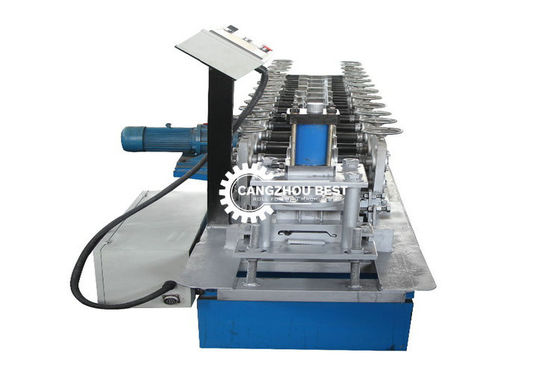

Machine
Application
