Product Details:
|
| Name: | Corrugated Rofoing Panel Roll Forming Making Machine For House Building Material | Roller Material: | Hydraulic Cutting |
|---|---|---|---|
| Payment Term: | L/C, T/T | Cutting Blade Material: | Cr12 |
| Delivery Time: | 25-30 Days | Length: | Customized |
| Control System: | PLC | Surface Treatment: | Coated |
| Speed: | 8-12m/min | Side Panel: | 20mm |
| High Light: | 20mm Corrugated Roofing Machine,12m/Min Corrugated Roofing Machine,corrugated roll former |
||

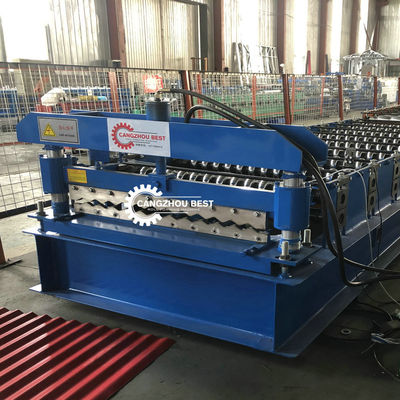

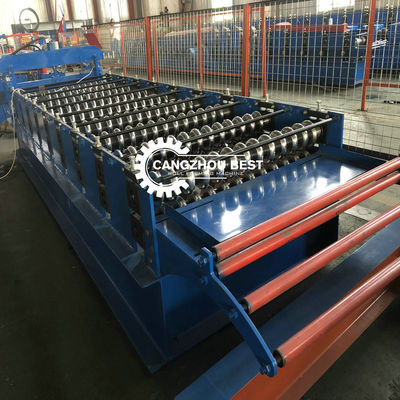

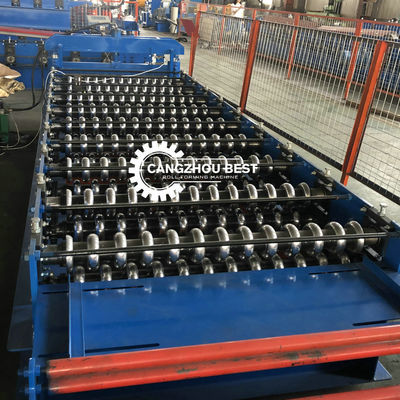

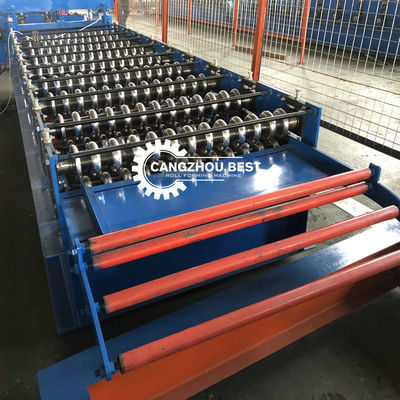

Corrugated Rofoing Panel Roll Forming Making Machine For House Building Material
- Color Steel Sheet Roll Forming Machine processing galvanized steel thickness 0.2-0.8mm,more customers use 1250mm,1200mm,1000mm coil.We can customized it as your request.
- Corrugated is very popular design in all over of the world,it is used for roof and wall.
- Color Steel Sheet Roll Forming Machine can stable and long time working to satisfied high quantity production.Machine working speed is 10-15m/min.
- You can setting length and pieces in PLC,then the roll forming machine can automatic working.It is only need one or two workers.
- Every roll forming machine everyday working about 8 hours.Workers should be everyday clean the machine and add oil.
| No. | Item | Specification |
| 1 | Can Formed Material | PPGI,GI,AI |
| 2 | Equipment operation | Automatic |
| 3 | Voltage | 380V 60Hz 3Phase or as your requirement |
| 4 | Thickness of sheet (mm) | 0.3-0.7mm |
| 5 | Material width(mm) | As your requirement |
| 6 | Cover Width of the sheet after formed | as your drawing |
| 7 | The size of the roll forming machine | 5000mmx1600mmx1400mm |
| 8 | Speed | 8-15m/min |
| 9 | Diameter of shaft | 75mm |
| 10 | Weight of the Machine | 3000-3500KGS |
| 11 | Material of rollers | C45 steel quenched and chromed |
| 12 | Motor brand | Siemens or Guomao |
| 13 | PLC | Siemens or Delta or Mitsubushi |
| 14 | Total power (kw) | 6kw |
| 15 | Power of hydraulic system | 3kw |
| 16 | Power of main molding core | 3kw |
| profile drawing | ||
3. Components of roll forming machine:
| No. | Item. | Unit. | Qty. |
| 1. | Manual decolier | set | 1 |
| 2. | Molding core | set | 1 |
| 3. | PLC control box | set | 1 |
| 4. | Hydraulic pump | set | 1 |
| 5. | Exit rack | set | 1 |
| 6. | Cutting system | set | 1 |
4. Service:
We have professional team to make different kinds of roll forming machines for our customers, from designing, processing,assembling, debugging, delivery. We can send our technicians to customer's factory for installation, and teach customer's workers how to use the machines.
If there is any problems happened to the machine, we will provide solution at once. Hope we could establish win-win business relations in the soon future!
Our main products include: Villa Keel Roll Forming Machine,Stud and Track Keel Roll Forming Machine,Omega Profiles Keel Roll Forming Machine,Profiles Bending Roll Forming Machine,Ceiling Keel Roll Forming Machine.Double Layer Roofing Tile Roll Forming Machine,Metal Roofing Roll Forming Machine .Floor Deck Roll Forming Machine,C-Purlin Forming Machine,Light Steel Forming Machine,Ridge Tile Forming Machine,Bending Machine.Container house
We can produce according to your requirements.
