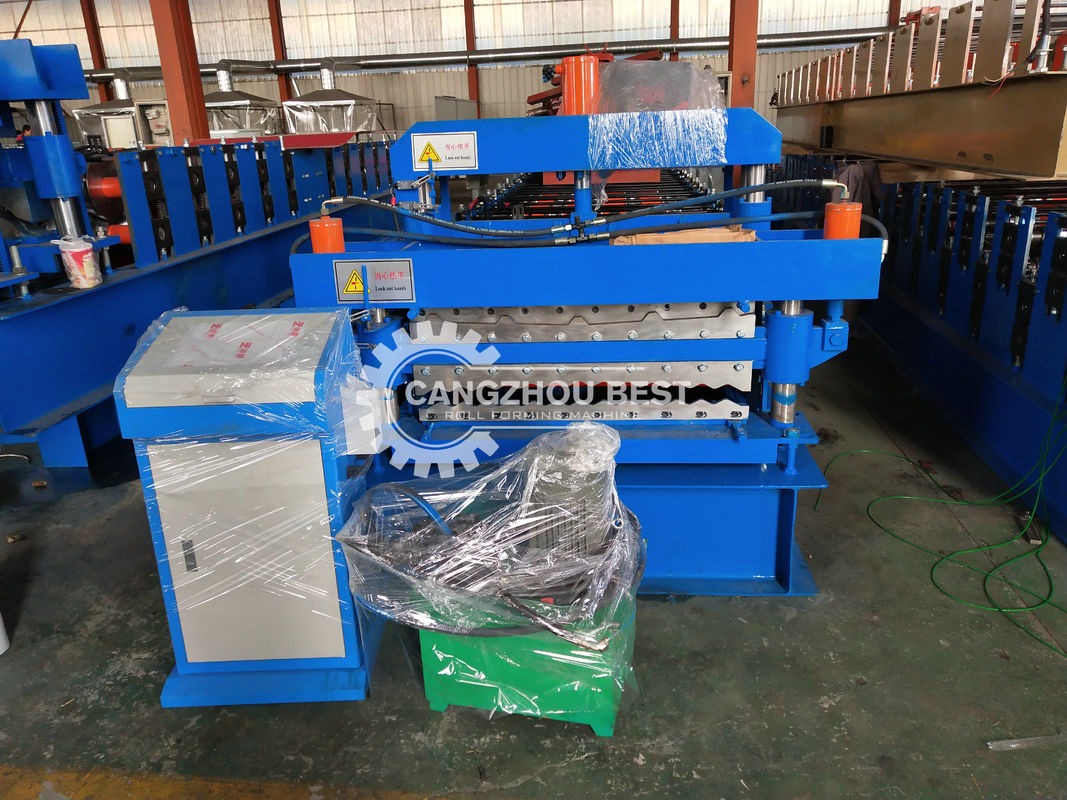

8.5kw Steel Tile Trapezoidal Roof Sheet Roll Forming Machine

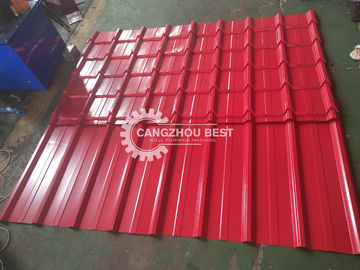

This advanced roll forming machine produces various shapes of steel roof and wall panels according to client specifications. The finished products serve as durable building materials for gymnasiums, airports, theaters, factories, warehouses, garages, exhibition centers, and other commercial structures.
Technical Specifications
| Component |
Model/Name |
Quantity |
Technical Description |
| 1. Decoiler System |
Arm type automatic decoiler (With ultrasonic control) |
1 set |
Arm-type, hydraulic expanding, electrical motor actively releases sheet, includes coil cart and pressing arm |
| 2. Main Forming System |
Pre-shearing device |
1 set |
Roller material: No.45 steel with surface hard chrome painted. Roller shaft material: No.45. Guide column supporting structure. Cycloidal pin gear speed reducer motor driving with chain/gear transmission. Cr12 quenched cutting blades. No.45 steel nitride-treated punching dies. |
|
Feeding guide device |
1 set |
|
|
Film covering device |
1 set |
|
|
Roll forming system |
1 set |
|
|
Pressing system |
2 sets |
|
|
Post-cutting device |
1 set |
|
|
Complete safety cover |
1 set |
|
| 3. Output System |
Support table |
2 sets |
For supporting finished plates |
| 4. Hydraulic System |
Hydraulic station |
1 set |
Separated hydraulic station for main machine and decoiler |
| 5. Electric Control System |
Control system |
1 set |
PLC control with encoder automatic cutting length. Touch screen + button operation. AC frequency for speed adjustment. |
Detailed Component Information
Decoiler System
5T Manual Decoiler: Features mandrel and base components with mechanical manual shrinking/expanding. Four segments with expansion range 460-520mm. Center height: 0.65m. Feeding speed matches roll forming machine speed.
Roll Forming Machine
Rollers designed with Auto-CAD software, manufactured from 45# high-grade steel using CNC machine tools, hard chrome coated. 70mm diameter shafts. 14mm thick frame panels. 36# H-section steel bottom frame. Up to 18 roller stations.
Cutting System
PLC-controlled hydraulic cutting with automatic length measurement. Non-contact photoelectric stroke switch. Cuts formed sheets to required length with automatic machine stop/start sequence.
Hydraulic System
Gear wheel oil pump controlled system with separate hydraulic tank, oil pump, pipes, and electromagnetism valves. Top brand components ensure stability and prevent leakage. Energy-saving design activates only during cutting operations.
Electric Control System
PLC-controlled automatic length and quantity measurement. Touch screen with LED display. Motor overload, system over-current, and short circuit protection. Displays total production length and quantity.
Production Process Flow
Factory Overview
Frequently Asked Questions
How to request an accurate quotation for the roll forming machine?
We provide accurate quotations based on drawing profiles. Please share your profile drawing first. Machine design variations, frame type, PLC brand, and motor selection affect pricing.
What are your payment terms?
30% T/T deposit, balance paid before shipping after inspection. We also accept L/C, O/A, and D/P payment methods.
What is your after-sales service policy?
24-month warranty period. If broken parts cannot be repaired, we provide free replacements (customer covers express costs). Lifetime technical support for all roll forming machines.
How to visit your company?
Fly to Beijing Airport: Take high-speed train from Beijing Nan to Cangzhou Xi (1 hour), we provide pickup. Fly to Shanghai Airport: Take high-speed train from Shanghai Hongqiao to Cangzhou Xi (4.5 hours), we provide pickup.
