Product Details:
|
| Product Name: | Traditional 13/3 Corrugated Iron Cladding Profile Steel Roof Sheet Roll Forming Machine | Color: | Blue Or As Your Request |
|---|---|---|---|
| Driven System: | Chain Or Gear Box | Cutting Type: | Hydraulic |
| Warranty: | 2 Years | Life Time: | More Than 10 Years |
| High Light: | Traditional roofing sheet manufacturing machine,13/3 roofing sheet manufacturing machine,Φ450mm Roofing Sheet Manufacturing Machine |
||
Traditional 13/3 Corrugated iron cladding profile steel roof sheet roll forming machine
Machine components
De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Production support table-----------------------1set
Parameter
1.DECOILER
(1) Max. Width: 1250mm
(2) Inner Diameter: Φ450 – Φ550mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs
2.ROLL FORMING DEVICE
(1) Material Thickness: 0.3-0.8mm PPGI and GI
(2) NO. of roller Stations: 16 groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
(5) Diameter of shaft: 70mm
3.CUTTING DEVICE
(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC55 – 60°
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 KW
4.PLC CONTROL SYSTERM
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5)Language: English and Chinese
(6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)

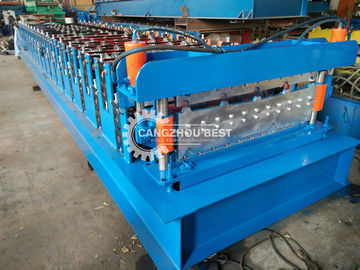

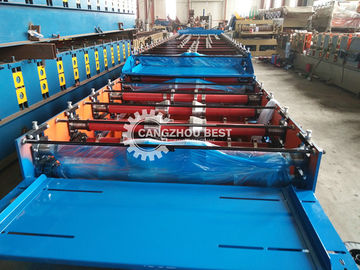

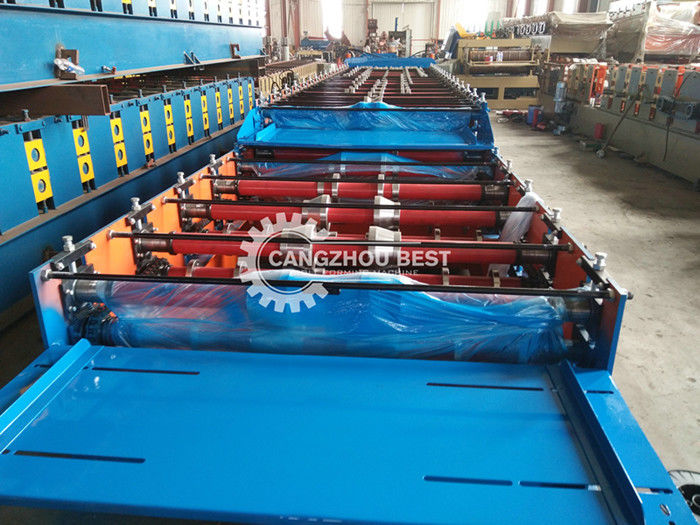

Machine Photo
Packing& Loading
After-sales service
Technical Support
Fully providing technology supports both within and after the warranty period. Feed back to our customers at the first time.
Spare Parts
Promptly providing spare parts and wearing parts.
Upgrade
Improve technology and upgrade of equipments.
sandwich panel production line good price
RFQ
A: Please look at my contact card. You can talk to me anytime. Or send me enquiry email, I will reply you in 24 hours and offer the optimum solution to you
A: Engineers available to service machinery overseas. But the customers/buyer should pay for installation and commissioning fee 80$/day to our point account. We will provide the technical support for the whole life of the equipment and free training.
A: 1. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2 Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.A: Our company has been producing roll forming machines for almost 20years.We have rich experience for manufacturing and designing the machine.
