W Beam / Thrie Beam 1600mm Dia Panel Roll Forming Machine

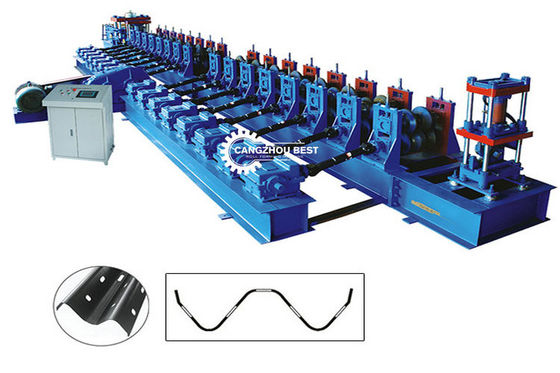

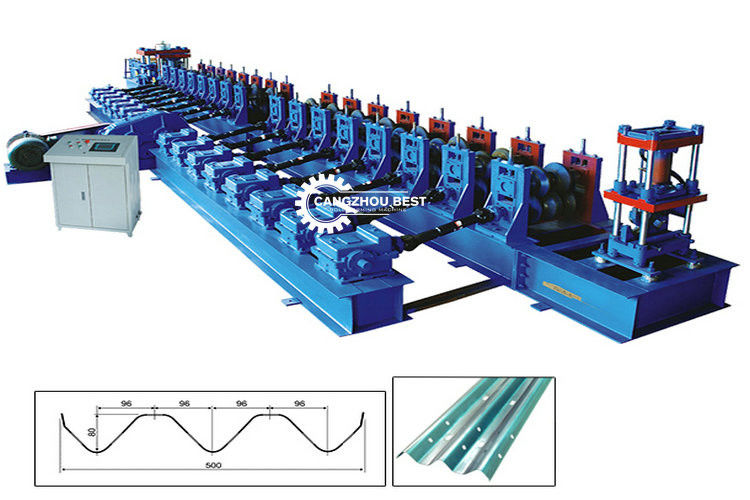

Large Image : W Beam / Thrie Beam 1600mm Dia Panel Roll Forming Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	BEST
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD$60000---$80000
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	20 sets

Contact Now

W Beam / Thrie Beam 1600mm Dia Panel Roll Forming Machine

Description

Efficient Highway Guardrail Roll Forming Machine W Beam / Thrie Beam Panels Usage:	Engineers Available To Service Machinery Overseas	Warranty:	1 Year
Weight:	15 T	15 T:	380V 50Hz 3phases
Condition:	New	Color:	As Your Request
Highlight:	1600mm Panel Roll Forming Machine , w600mm Panel Roll Forming Machine , 15m/min Panel Roll Forming Machine

Structure of Guard Rail Roll Forming Machine

1. Decoiler

Passive loading with one head on one side
Max. loading weight: 8000Kg
Max. Diameter of coil: 1600mm
Max. width of coiler: 600mm

2. Feeding-in & Leveling

Metal sheet is sent to guiding wheels (both left and right side are adjustable)
Metal sheet is sent to delivering roller diameter is 180mm, material is steel S45C, quenched 48°C-52°C
Leveling is done by three rollers upside and four rollers downside, which are all quenched surface treatment.

3. Punching (both left and right side are adjustable)

Hydraulic punching
Diameter of piston: 140mm
Working pressure: 20Mpa
Mould material: Cr12, quenched 58°C-62°C
Power of hydraulic station: 15 KW
Dimension(mm): 1500(L)X1100(W)X1200(H)

4. Forming

Main motor power: 22 KW
Cycloid pinwheel reducer BWD14-43-45KW
Transmission: gearbox with universal coupling
Shaft material: Using high-quality steel 45 quenched and tempered after finishing treatment
Shaft diameter: 100mm
Roller material: GCR15, quenched 58°C-62°C, electroplate surface treatment
Number of stations: 17 stations
Speed adjusting use frequency conversion, 5m-15m/min (not including punching)
Frequency converter: Panasonic(380V,50Hz)
PLC controlling
Touch screen operation panel

5. Cutting

Hydraulic cutting
Material of cutting blade: Cr12, quenched 58°C-62°C
Diameter of piston:250mm
Working pressure: 30Mpa
Working stroke: 80mm

6．Dimension of production line

11000mm(L)X1800mm(W)X1500mm(H)

7．Run out table

Square pipe (60mm*40mm) welded (Height is adjustable)
Dimension: 1500mm(L)X800mm(W)X600mm-1000mm(H)

Main Components of Guard Rail Roll Forming Machine

NO.	Name	Unit	Qty
1.	Roll Forming Machine	Set	1
2.	Decoiler	Set	1
3.	Feeding & Leveling	Set	1
4.	PLC Control System	Set	1
5.	Hydraulic Cutting Device	Set	1
6.	Hydraulic Station	Set	1
7.	Run Out Table	Set	2

TECHNICAL PARAMETERS

Main Technical Data of Guard Rail Roll Forming Machine

Product Name	Item	Description
Guard Rail Roll Forming Machine	Max. loading weight	8000Kg
	Max. the diameter of coil	1600mm
	Max. the width of coiler	600mm
	Diameter of piston	140mm
	Working pressure	20Mpa
	Mould material	Cr12, quenched 58°C-62°C
	Power of hydraulic station	15 KW
	Punch Station Dimension(mm)	1500(L)X1100(W)X1200(H)
	Main motor power	22 KW
	Cycloid pinwheel reducer	BWD14-43-45KW
	Shaft material	High-quality steel 45 quenched and tempered after finishing treatment
	Shaft diameter	100mm
	Roller material	GCR15, quenched 58°C-62°C, electroplate surface treatment
	Number of stations	17 stations
	Working Speed	10m-15m/min
	Frequency converter	Panasonic(380V,50Hz)
	Material of cutting blade	Cr12, quenched 58°C-62°C
	Diameter of piston	250mm
	Working pressure	30Mpa
	Working stroke	80mm
	Dimension of production line	11000mm(L)X1800mm(W)X1500mm(H)

Working Flow of Guard Rail Roll Forming Machine

Raw material loading—feeding-in with guiding (metal sheet is guided into the first forming station)--leveling—punching—rolling & forming—hydraulic cutting--run out table
