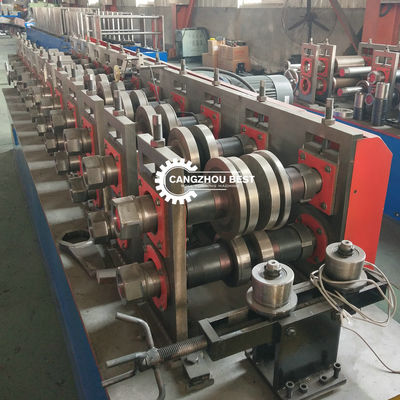

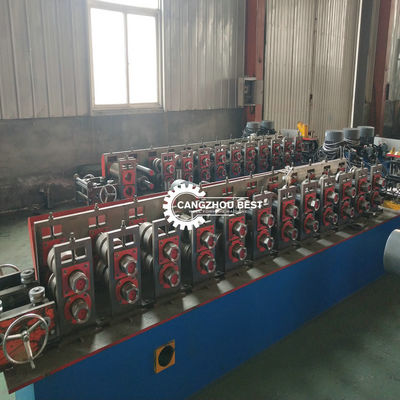

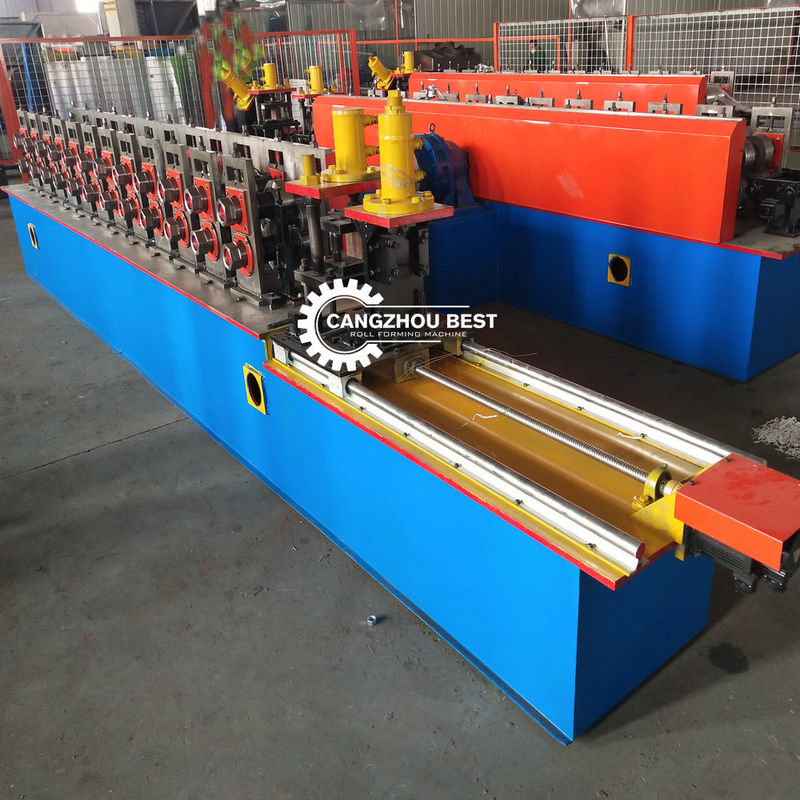

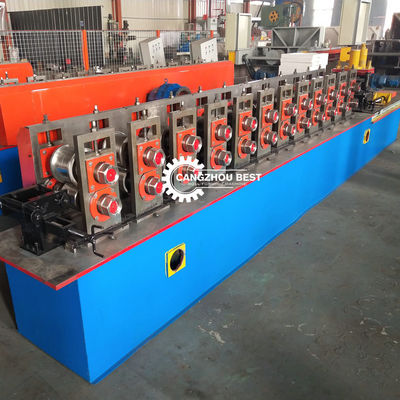

Metal Servo Motor 35m/Min Stud And Track Roll Forming Machine

Large Image : Metal Servo Motor 35m/Min Stud And Track Roll Forming Machine

Product Details:

Place of Origin:	China
Brand Name:	CHBEST
Certification:	CE,BV,SGS
Model Number:	YX-50

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD12500-35500/set
Packaging Details:	20GP/40GP container
Delivery Time:	5-60days
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	20sets/month

Contact Now

Metal Servo Motor 35m/Min Stud And Track Roll Forming Machine

Description

Name:	20-35m/min High Speed Metal Stud And Track CU Channel Roll Forming Machine Servo Motor Driven	Power(W):	5.5+3+2.2kw
Certification:	CE; ISO9001:2008	Tolerance:	+/-0.1mm
Production Capacity:	20-35m/min	Place Of Origin:	Hebei,China
Screen Type:	Touching Screen	Driven Type:	Gear
Voltage:	380V.50HZ.3Phase	Cutting System:	Hydraulic
Highlight:	35m/min Stud And Track Roll Forming Machine , 0.1mm Stud And Track Roll Forming Machine , touchscreen Roll Forming Machine

Metal Servo Motor 35m/Min Stud And Track Roll Forming Machine

High-Speed Metal Stud and Track CU Channel Roll Forming Machine

Servo motor driven system with production speeds of 20-35m/min, designed to European quality standards for superior performance and durability.

Engineered to European quality standards for exceptional reliability
Premium materials and components selected based on 20+ years of industry experience
Double the production capacity compared to competitor machines
Maximum working speed of 60m/min for high-volume production
Simple installation and intuitive operation for minimal training requirements

Technical Specifications

Weight capacity of decoiler	2.5T
Appearance Size (LWH)	4000800800mm
Raw material / feeding sheet material	Colored steel & galvanized steel
Roller material	45# high grade steel
Shaft material	45# high grade steel
Kind of drive	Chain drive
Cutting system	Automatic hydraulic cutting
Cutting blade material	Cr12 high grade steel
Frame material	300 H-high grade steel
Control system	Totally automatic PLC control system
Main power	7 kw
Roller stations	100 rows per layer
Speed of production	8-10m/min
Thickness of colored steel	0.2-0.8mm
Feeding width	1000mm
Effective width	850/860mm

Equipment Components

Steel strip supporting frame
Feeding platform
Automatic shearing system
Hydraulic system
Steel strip unfolding system
Computer control system (imported computer)
High-precision automatic counter
Receiving table

Technical Description

Automatic Inner Tight Decoiler:

Coil inner diameter: 450mm-550mm
Maximum width of coiling: 600mm
Maximum weight of loading: 2500kg

Main Forming Machine:

Number of forming steps: 11 rows
Material of shaft: 45# steel, Outer diameter 60mm
Main motor power: 5.5kw
Speed of forming: 0-50m/min

Hydraulic Cutter:

Material of blade: Cr12 mould steel with quenched treatment 60-62
Cutting system: Advanced hydraulic drive, automatic tracking cut after forming
Features: No distortion, no wasting, high safety factor

Electrical Control System:

Display brand: DELTA
Main computer (PLC): DELTA DVP14

Hydraulic System:

Advanced hydraulic system from Taiwan
Power: 3kw

Equipment Coating & Package:

Coating: International general shade-guide
Package: Simple waterproof package

Warranty & Support

18-month warranty with lifetime technical support for the equipment.

Installation & Service Charges

Purchaser responsible for all overseas installation charges including food, lodging, and round trip air tickets. Additional subsidy of 60USD/day until installation completion. For out-of-warranty overseas debugging, customer pays all charges plus 100USD/day until completion.

Contact for More Information

Please inquire for additional details and customized solutions.
