Tee Bar T Grid Ceiling 0.8mm Light Steel Keel Machine

Large Image : Tee Bar T Grid Ceiling 0.8mm Light Steel Keel Machine

Product Details:

Place of Origin:	China
Brand Name:	CHBEST
Certification:	CE,SGS,BV
Model Number:	YX-T

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD9500-35500/set
Packaging Details:	40GP/20GP container
Delivery Time:	5-60days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	20sets/month

Contact Now

Tee Bar T Grid Ceiling 0.8mm Light Steel Keel Machine

Description

Name:	Light Steel Keel Tee Bar T-Grid Ceiling Roll Forming Machine Manufacturer	Place Of Origin:	Hebei, China
Rolling Thickness:	0.3-0.8mm	Main Motor Power:	5.5kw
Control System:	PLC	Tile Type:	Steel
Power:	380V 50Hz	Production Capacity:	25-30m/min
Key Selling Points:	High Productivity
Highlight:	0.8mm light steel keel machine , 25m/min light steel keel machine , 5.5kw light steel keel machine

Tee Bar T Grid Ceiling 0.8mm Light Steel Keel Machine

Professional manufacturer of light steel keel Tee Bar T-Grid ceiling roll forming machines for industrial applications.

Key Product Features

Touch screen control system for easy operation and monitoring
Superior surface finish quality - preserves galvanized coating and color paint integrity
Precise 1:1 profile matching to design specifications
Robust mechanical construction for durability and minimal maintenance
Low material waste rate for cost-effective production

Equipment Overview

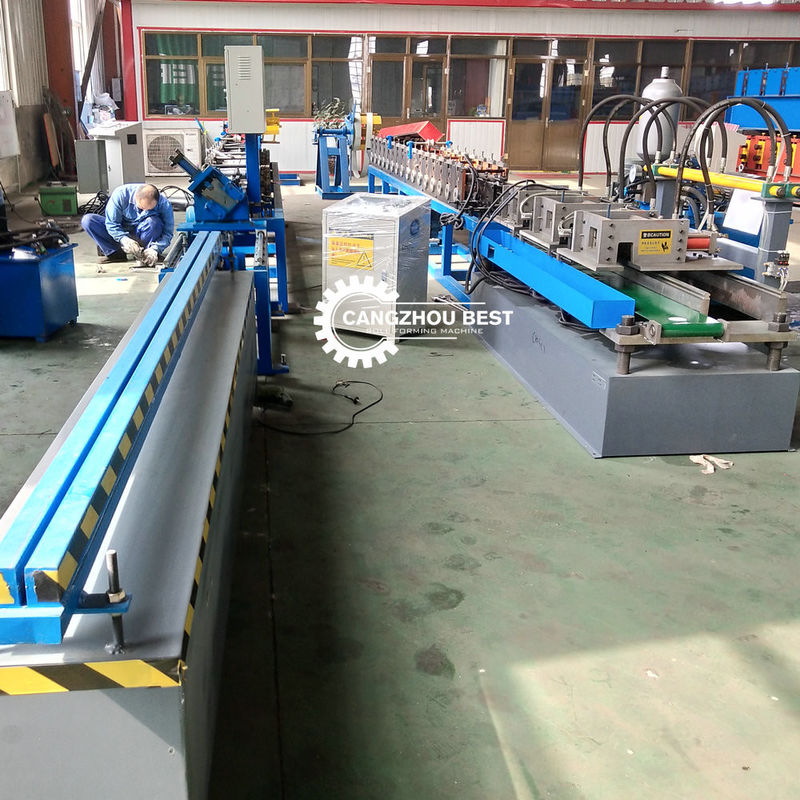

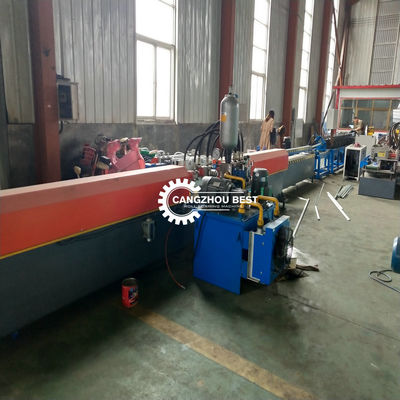

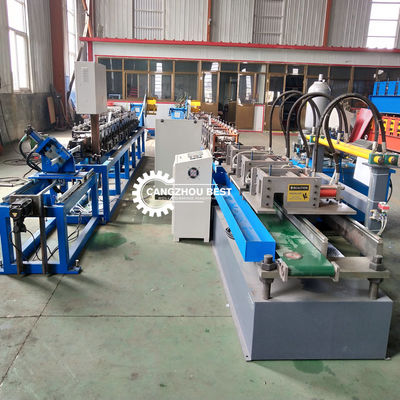

This advanced roll forming equipment is designed for producing various steel profiles including door frames, window rail supports, storage racks, drawer sliders, light steel keels, pipes, and highway guardrails. The complete production line integrates a material feeding rack, main forming machine, and hydraulic precision punching-cutting system with zero material waste technology.

Main Tee Production

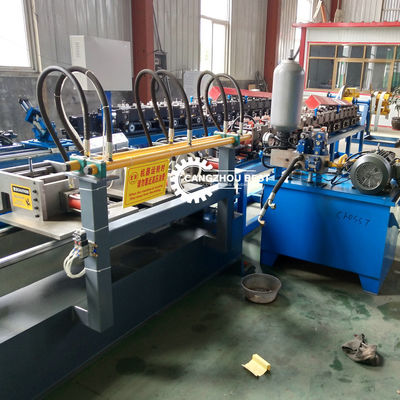

Equipped with inverter motor technology achieving production speeds of 30 meters per minute. Features hydraulic automatic punching and cutting synchronized with the main forming machine for simultaneous end and middle hole processing.

Cross Tee Production

Utilizes both inverter and servo motor systems maintaining 30 meters per minute production speed. Includes servo tracking system for automatic speed synchronization and precision cutting operations.

Technical Specifications

Component	Specifications
Manual Decoiler	Material coil inner diameter: 450mm-550mm \| Max coil width: 300mm \| Carrying capacity: 1.5T
Forming Device	Shaft material: No.45 steel \| Roller material: Cr12 chrome coated \| Forming speed: 30m/min \| Main motor power: 5.5 kw \| Roller stations: 10-12 \| Voltage: 380v, 50Hz, 3 phase
Hydraulic Cutter	Blade material: Cr12 mould steel \| Cutting system: Advanced hydraulic drive \| Automatic cutting after forming with no distortion or material waste
Control System	Type: PLC Frequency Control System with touch screen \| Length Error: ±2mm \| Customizable electrical components
Output Table	Simple design for finished product loading \| Length: 6m

System Components

No	Name	Unit	Qty	Details
1	Manual Decoiler	set	2	Max width 300mm \| Inner diameter 460-510mm \| Max loading capacity 1000kg \| Manual expansion operation \| Safety brake system
2	Feeding Table	set	1	Material feeding system
3	Forming Rollers	set	1	16 forming stations \| Cr12 roller material \| HRC 58-60 hardness \| 40mm diameter shafts \| 40Cr shaft material \| 25mm thick sidewalls \| 5.5kw motor with frequency inverter
4	Hydraulic Cutting with Hole Punching	set	1	Taiwanese hydraulic components \| 2 edge cutting sets \| 23 middle joint hole punching sets \| Japanese SKD-11 steel molds \| Advanced NC wire cutting treatment
5	Profile Discharger	set	1	Fully automatic mechanical drive \| Synchronized with forming machine operation
6	Electric Control System	set	1	Taiwanese frequency converter \| Fatek PLC \| Weinview touch screen \| Profile length cutting with machine stop function \| Emergency stop controls \| 380V 50Hz 3-phase power

Why Choose Our Equipment

Custom roll forming machine design and manufacturing capabilities
Over 20 years of industry experience and technical expertise
Optimal balance of quality and competitive pricing
Precise measurement systems and user-friendly operation
Comprehensive technical support including installation, debugging, and maintenance services
Global export experience with established reputation for reliability
