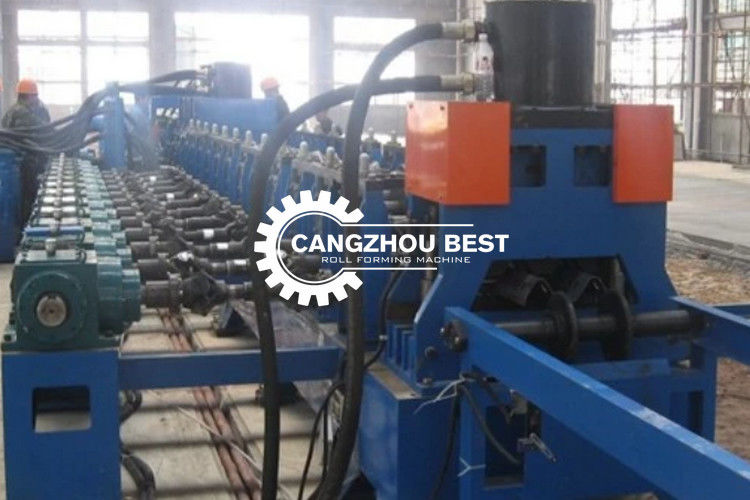

2.0mm steel 2 Waves W Beam Guardrail Machine

12 Months Warranty W-Beam Guardrail Roll Forming Machine with CE SGS Certificated

Technical Specifications
1. Decoiler
With two tapered electric bulgy clamps, and its carrying capacity is 8 tons. The inner diameter of the roll material is about 500 to 600mm, the maximum diameter of steel coil is 1800mm. Clamp motor power is 2.2kw with 4-pole normal motor. Adopt ZQ250 speed reducer, its speed ratio is 31:5.
2.Leveling Machine
Wallboard seven-roller leveler with two-roll pinch and five-roll leveling. Leveling roller diameter is 110mm. The leveling machine before and after has vertical guide roll. Feed inlet port equipped with nip rolls.
material: 40Cr, quenched hardness: HRC48°~52°, motor power:7.5kw, 6-pole normal motor, ZQ350speed reducer, speed ratio: 20:49, φ200 arrester brake.

3.Punching Machine

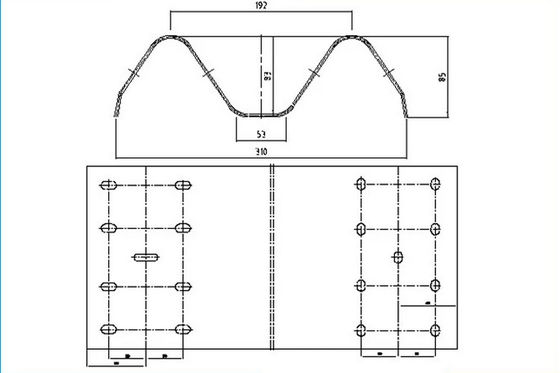

Adopt YL32-315 four-column hydraulic punching machine, and hydraulic station motor power is 22kw. One set of two waves guardrail plates punching cutting die, design and process mainly according to users' design drawings. The material of mold inserts and plunger chip is Cr12MoV alloy steel. The punching machine before and after equipped with adjustable guide roll. (guide roll material: Cr12MoV, hardness: HRC58º~60º) Besides, it also equipped with a set of spare blade and plunger chip.

4.rapid feeding material mechanism
It has two pairs of feeders and requires two becomes one.
pinch automatically, motor power:2.2 kw, ZQ250 speed reducer, hand-turn compressing

5.Photoelectric Length-measuring Device
number: two pairs, cut length: 4320mm, length accuracy < ±3.0mm

6. Main Forming Engine
This unit includes 11 molding processes with independent open arch structure.
The mechanical spreading width : 550mm.
Arch material : HT200 , tempered.
The column cross-section size: 80 x 70, with sufficient strength and reliable quality assurance. Vertical guiding roller numbers: 3
Roller diameter of vertical guiding roller: 80
Material: 40Cr steel, quenched and tempered.
Bearing type: Fixed surface 7216, regulation 32216, each has 4.
Numbers of dual-axis gear box: 1
Numbers of single-shaft transmission gear box: 9
Bevel modulus: M=9
Gear box material: HT200.
Host power: 45KW r, electromagnetic speed regulating,
Speed reducer: ZQ650
Speed ratio: 48.57
Use 1 inch double chain drive between the transmission gear box ; universal transmission shaft between the roller shafts, and the universal transmission shaft type is140-275. Use 1.5 inch dual chain drive between the speed reducer.

7.Forming Mold
A set of two wave guardrail plate roll forming die, designed and processed according to the national standard. The material is GCr15, and the overall quenching hardness is HRC58°~ 62°.

8.material Receiving Platform
Roller type material receiving station, 5m length, 6# steel welded.

9.Control System
Common control system. Can manually and automatically control the harmony of various parts of of the whole production line.

10.Others
The equipment total power is 78.9Kw, with 30000mm * 4000mm length * width. The maximum rolling height is 85mm, the maximum rolling thickness is 4.0mm, and the maximum rolling speed is 3 ~ 12m/min. Structural materials of welding machine seat must meet the requirements, welding must be up to the national standard . Equipment after rust cleaning should be firstly coated with steel special anti-rust paint comprehensively covering, and then coated with high quality topcoat. The rotating part should be divided by warning color.

FAQ
1.Q: Are you manufacturer or trading company?
A: We are manufacture
2.Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
3.Q: what is the MOQ?
A: One set
4.Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.
5.Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
6.Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
7.Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
2) We welcome you visit us and test machine by yourself in our factory.
8.Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians.
9.Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.
10. Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?
A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
