Product Details:
|
| Product Name: | Light Gauge Steel Frame Machine-C89 Villa Frame Rolling Forming Machine | Control System: | PLC |
|---|---|---|---|
| Cutting Type: | Mold Cutting | Warranty: | 2 Years |
| Lifetime: | 10years | Roller Material: | Cr12 Mov |
| Shaft Material: | 45#steel | ||
| High Light: | C89 steel framing machine,villa steel framing machine,0.7mm Steel Framing Machine |
||

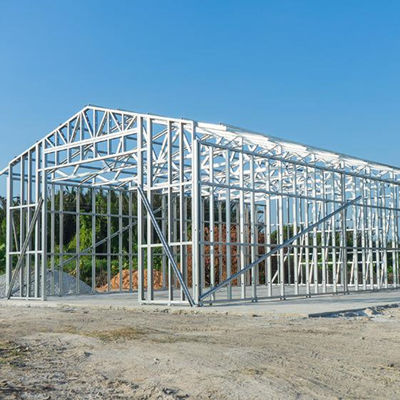

Our Light Gauge Steel House Frames Forming Machine, its processing thickness and formed sizes are international standards. The thickness is from 0.7mm to 1.2mm, the suitable material is galvanized steel strip Q235 or G550. The formed sizes are C89*41, C100*41 and C140*41. C89*41 and C140*41 are more popular.
Working flow
Decoiler------feeding------roll forming---------punching-------cut to length-----output table
Profile Drawing
Machine Components
| Name | Quantity(set) |
| De-coiler | 1 |
| Feeding guiding Device | 1 |
| Roll Forming Part | 1 |
| Hydraulic cutting Device | 1 |
| Computer control box | 1 |
| Hydraulic System | 1 |
| Run-out table | 1 |
Parameter
| Main rolling forming machine |
| 1. Transmission, we use gear, chain as tranmission. |
| 2. Main servo motor: 5.5kw |
| 3. Roller material: SKD11 |
| 4. Shaft mateiral : 40Cr |
| 5. Forming speed: 30m/min |
| 6. Production capacity: 80 to 100 square meter per day, if you work 8 hours per day. |
| Shearing System |
| Hydraulic station |
| 1. Power: 5.5kw |
| 2. Oil tank: 120OL |
| 3. Brand: Yuken series |
| Fuel tank capacity:160Lwith cooling unit,even long time processing,it won’t generate heat. |
| post-molding shear,single blade blanking with Japanese SKD die block steel. |
| Design software |
| Brand: vertex system |
| It is optaical, you can choose others. Or if your house sizes are fixed, you do not need to buy. |
| And if you feel manual inputting parameters is okay, and you also do not need to buy the software. |
| PLC Control Sytem |
| 1. USB input the documents |
| 2. IPC computer on set(operator windows system 7 required) |
| 3. It allows you to control holes position, distance. |
| 4. Control shearing position. |
| 5. Control production pieces. |
VERTEX BD 2017 design software

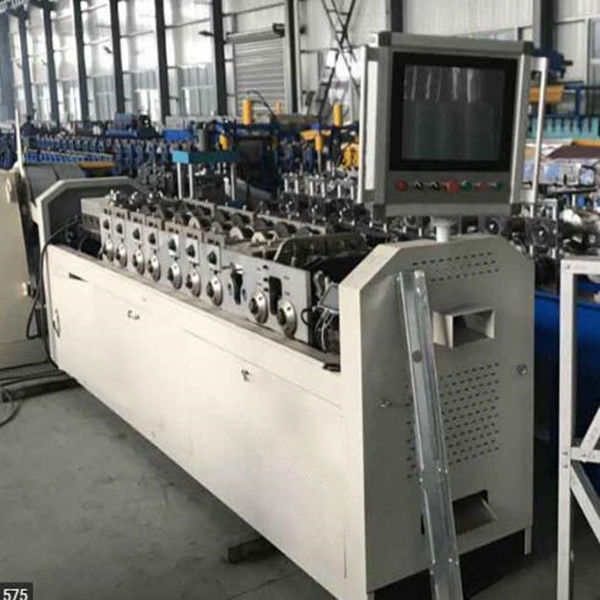

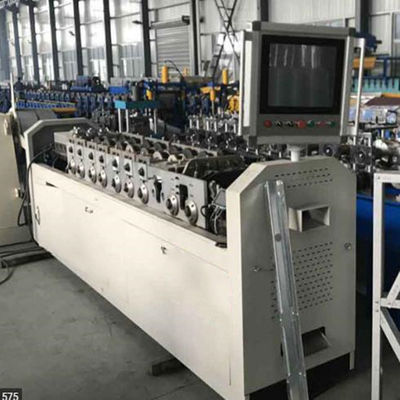

Machine Picture
Re-sale Service :
1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.
