2*3 Inch House Material 3kw Downspout Roll Forming Machine

2*3 Inch House Material 3kw Downspout Roll Forming Machine
2*3 Inch House Material 3kw Downspout Roll Forming Machine
2*3 Inch House Material 3kw Downspout Roll Forming Machine 2*3 Inch House Material 3kw Downspout Roll Forming Machine 2*3 Inch House Material 3kw Downspout Roll Forming Machine

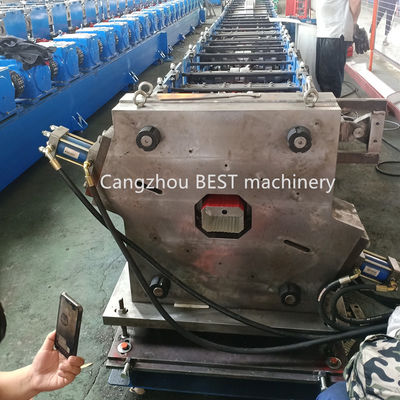

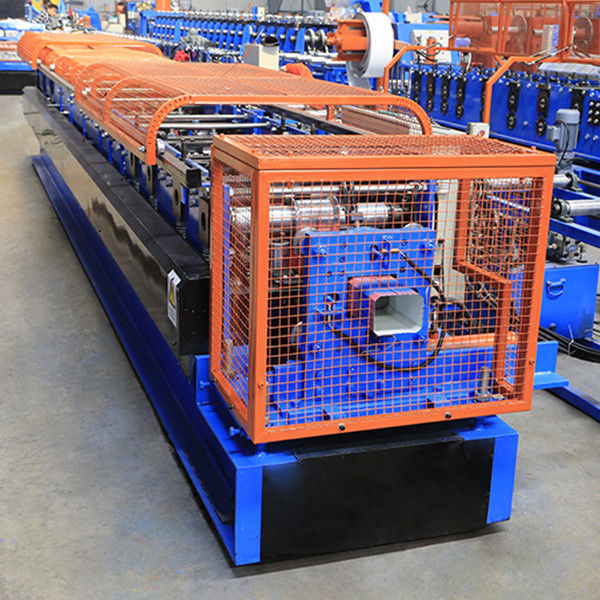

Large Image :  2*3 Inch House Material 3kw Downspout Roll Forming Machine

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY90
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $15200-$28500/set
Packaging Details: plastic film for naked machine
Delivery Time: 40-50 days
Supply Ability: 10 sets/month

2*3 Inch House Material 3kw Downspout Roll Forming Machine

Description
Product Name: 2*3 Inch House Material Steel Roof Gutters Downspout Roll Forming Machine Machine Dimention: 9mx1.4mx1.4m
Driven System: Chain Or Gearbox Cutting Type: Hydraulic
Warranty: 2 Years Life Time: More Than 10 Years
Mail Power: 3 Kw
High Light:

chain driven downspout forming machine

,

2*3 downspout roll forming machine

,

3kw downspout roll forming machine

2*3 inch House material steel roof gutters downspout roll forming machine

High standard steel downspout rain water gutter rolling forming machine includes in unpowered decoiler unit, sheet guiding equipment, roll forming system, cutting equipment, hydraulic station, electric controlling system and product supporter.Curving pipe forming machine is the complementary equipment for down pipe forming machine. It can make curve for down pipe to meet the requirement of practical engineering projects.


Machine components

De-coiler-------------------------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Production support table-----------------------1set
Bending machine---------------------------------1set


SPECIFICATIONS FOR ROLL FORMING MACHINE

Main roll forming machine
Material of roller

High grade 45# forged steel plated with hard chrome plating
Working Speed
m/min
8-15
roller stations
station
16


Motor power
Main motor power
kw
5.5
Hydraulic Station Power
kw
3
Hydraulic Station Pressure
Mpa
12

Otehrs
Electrical Control System
PLC brand
Panasonic Japan
Material Thickness
mm
0.25-0.8mm
Cutting accuracy
mm
±2


Machine Parts


Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment, coated


Main Features

Name:PLC
Brand: Panasonic Japan
Panasonic PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working. In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.


Brand:China
It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.
The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.
Power of The Pump:4kw
Hydraulic oil :40#


Main Features

Name: Encoder
Brand:OMRON
We understand that the encoder is a very important part of the cutting to length system, so we only adopt the best quality from OMRON Japen. And we offer enough matching couplings to make the machine will never shut off due to the encoder problem.


2*3 Inch House Material 3kw Downspout Roll Forming Machine 0

2*3 Inch House Material 3kw Downspout Roll Forming Machine 1
2*3 Inch House Material 3kw Downspout Roll Forming Machine 2
