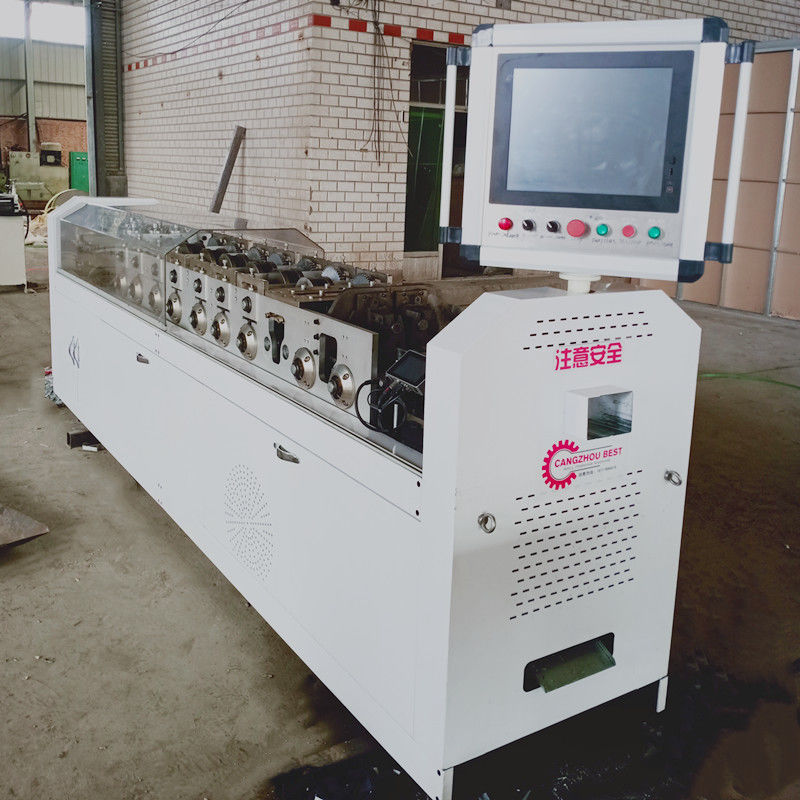

C140 Light Keel 45# Steel Villa Forming Machine

C140 Light Keel 45# Steel Villa Forming Machine
C140 Light Keel 45# Steel Villa Forming Machine C140 Light Keel 45# Steel Villa Forming Machine

Large Image :  C140 Light Keel 45# Steel Villa Forming Machine

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY50x24
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Supply Ability: 20 sets/month

C140 Light Keel 45# Steel Villa Forming Machine

Description
Product Name: C89 C100 C140 Light Gauge Steel Frameing Villa Roll Forming Machine Control System: PLC
Cutting Type: Mold Cutting Warranty: 2 Years
Lifetime: 10years Roller Material: Cr12 Mov
Shaft Material: 45#steel
High Light:

45# steel villa forming machine

,

C140 villa forming machine

,

light keel villa forming machine

C89 C100 C140 Light Gauge Steel Frameing Villa Roll Forming Machine

Light steel villa is a kind of modular house, consisting of cold form, thin-walled light steel keel system. It is a new type of energy conservation and environment protection house which is easy and convenient to install.

C140 Light Keel 45# Steel Villa Forming Machine 0

Working flow
Decoiler------feeding------roll forming---------punching-------cut to length-----output table

Profile Drawing
C140 Light Keel 45# Steel Villa Forming Machine 1


Machine Components

Name Quantity(set)
De-coiler 1
Feeding guiding Device 1
Roll Forming Part 1
Hydraulic cutting Device 1
Computer control box 1
Hydraulic System 1
Run-out table 1


Parameter

Configurations Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control.
Control System PLC Panasonic Inverter
Main Frame 350mm H-Beam
Main Power 5.5 kw
Pump Power 3kw
Power Supply 3-Phase,380V,50Hz
Forming Speed 12-14m/min
Hydraulic Pressure 18-20MPa
Forming Size 80mm
Feeding Thickness 1.5-3.2mm
Roller Station 12 Stands
Roller Diameter 60mm
Backboard Thickness 16mm
Chain Size 66mm
Cutter Standard Cr12
Roller Standard Cr12
Cr-Plating Size 0.05mm
Overall Size 9500×1400×1350mm
Total Weight 6T



VERTEX BD 2017 design software
1. The wall, floor and roof structure is produced automatically, saving design time.
2. Automatic 3D molding, insure 100% accuracy.
3. With analysis project function, the software can calculate bearing capacity.
4. Create frame work 3D map and 3D decoration view.
5. The whole building frame can be resolve to independent unit drawing.
6. Calculate the bill of material, including the needed steel, plates, thermal insulation material,doors and windows, screws and other matching material.
7. Create the processed data including the marked work piece, docking with the equipment.
8. Software maintenance and training fee.
9. Maintenance and supporting fee is USD 2200.00/Year. It’s for software update and optional.

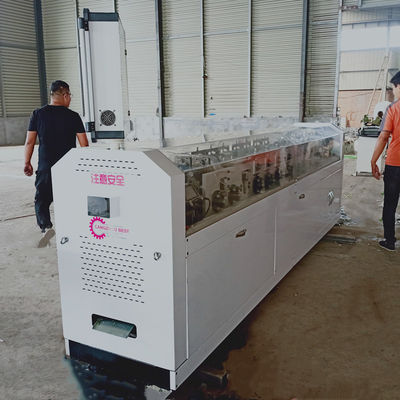

Machine Picture
C140 Light Keel 45# Steel Villa Forming Machine 2





C140 Light Keel 45# Steel Villa Forming Machine 3

 C140 Light Keel 45# Steel Villa Forming Machine 4



Re-sale Service :
1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.


RFQ

Step 1: Tell us your requirements
Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative
Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.
Step 4: Advanced payment and production
Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract.
Step 6: Balance payment and shipping
Step 7: Handing Shipping files to help clients get goods from transporter in time.
Step 8: Clients get goods and go into warranty time.
