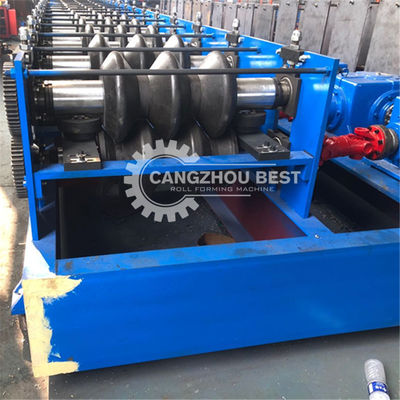

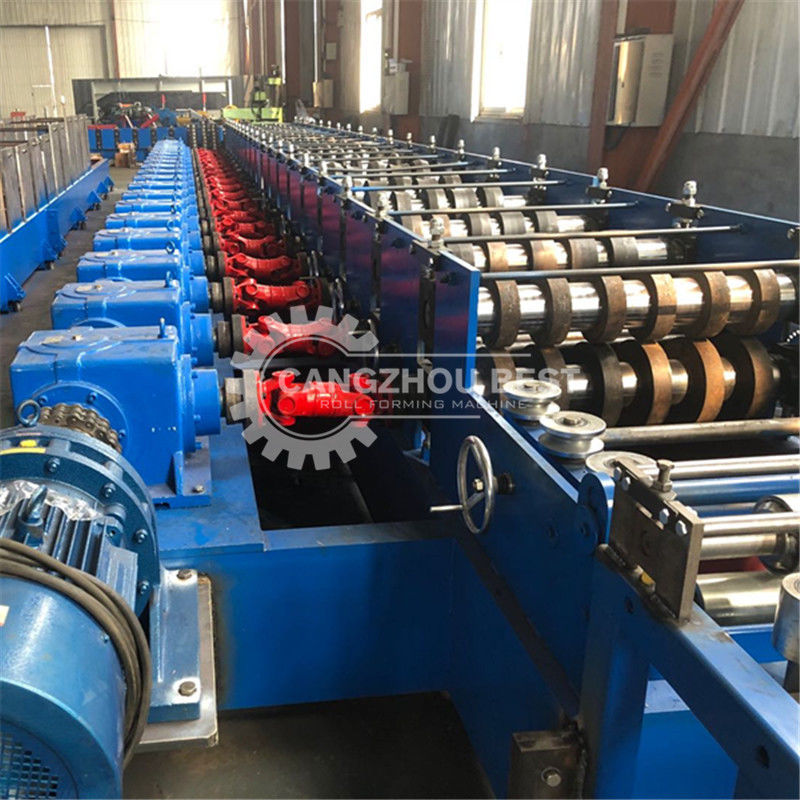

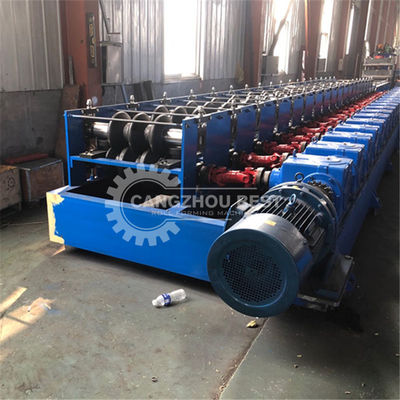

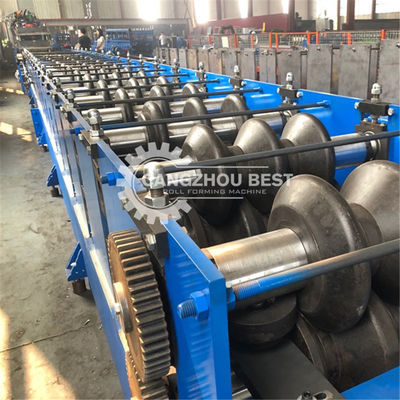

Metal Steel W Beam C Post 5mm Crash Barrier Roll Forming Machine

Metal Steel W Beam C Post 5mm Crash Barrier Roll Forming Machine
Metal Steel W Beam C Post 5mm Crash Barrier Roll Forming Machine Metal Steel W Beam C Post 5mm Crash Barrier Roll Forming Machine Metal Steel W Beam C Post 5mm Crash Barrier Roll Forming Machine Metal Steel W Beam C Post 5mm Crash Barrier Roll Forming Machine

Large Image :  Metal Steel W Beam C Post 5mm Crash Barrier Roll Forming Machine

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY312
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD+8000+SET
Packaging Details: plastic film for naked machine
Delivery Time: 20-35days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10sets/month

Metal Steel W Beam C Post 5mm Crash Barrier Roll Forming Machine

Description
Product Name: Metal Steel W Beam Crash Barrier 5mm C Post Highway Guardrail Roll Forming Machine Color: Blue Or As Your Request
Coil Diamter: 450-550 Control System: PLC
Cutting Type: Hydraulic Warranty: 2 Years
High Light:

5mm Crash Barrier Roll Forming Machine

,

PLC Crash Barrier Roll Former

,

550mm Crash Barrier Roll Forming Machine



Metal Steel W Beam Crash Barrier 5mm C Post Highway Guardrail Roll Forming Machine





Working flow
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table


Machine Component

De-coiler 1 set
Leveling device 1 set
Forming machine 1 set
punching device 1 set
Cutting device 1 set
PLC control box 1 set
Hydraulic pump station 1 set
Production support table 1 se



Decoiler


Type Manual type(standard) Hydraulic type(option)
Width 600mm 800mm
Capacity 5000kgs 5000kgs-15000kgs
Inner diameter 450-550mm 450-550mm
Outter dimater 1500mm 1800mm


roll forming machine



Material Thickness: 0.3-0.8mm PPGI and GI

NO. of roller Stations: 14groups
Material for Rollers: high grade Gcr15 steel polished and coated with chrome HRC55-60°
Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

Diameter of shaft: 90mm

Frame panel thickness: 20mm

Bottom frame: 36# H-section steel
Motor Power: 22kw

Driven type: Chain or gear box
Speed:8-12m/min




Punching device


Item Parameter detail
Frame processing the whole levelling surface is made by drilling machine
Mould material Cr12mov
Mould processing wire eletrode-cutting for the mould shape, it will save pressure
Hole size According to your request
Hole number According to your request
Pressure 20Mpa


Cutting device
(1) Material for Cut-Off Modular:Cr12 steel
(2) Hardness for Heat Treatment:HRC55 – 60
(3) Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Cut-Off Modular:1 set
(5) Motor for Hydraulic Stand: 11 kw

Stacker


Type

Manual


Auto(option)


Length 2pieces, length is adjustable according to your requirement

PLC


Main item Parameter detail
PLC

Delta(standard) or according to your request


Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase

Hydraulic pump


Main Item Parameter detail
Motor

3kw China brand or according to your request


Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan




Payment terms and after-sale service:

1) FOB Tianjin Port or CIF
2) Payment: 30% T/T deposit, and pay the balance before shipping.
3) Delivery time: 60 working days.
4) Guarantee period: 18months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
5) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.
6) Installation and training:
1. If buyers visit our factory and check the machine, we will teach you how to install and us the machine, and also train your workers/technician face to face.
2. Without visiting, we will send you user manual and CD to teach you to install and operate.
3. COST OF INSTALLATION:
The buyer should pay the installation charges (USD 100 one man one day). To the seller’s appointed account by T/T before the seller’s technicians go to the buyer’s factory. The buyer pays the seller’s technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc.
