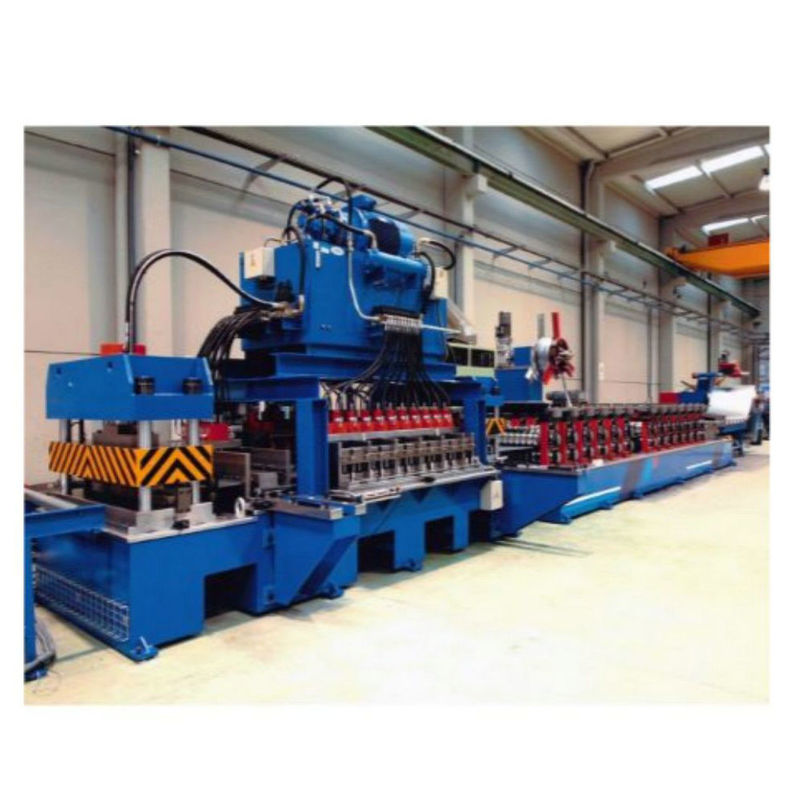

Spiral Galvanized Grain Silo Tank 200kw Custom Roll Forming Machine

Spiral Galvanized Grain Silo Tank 200kw Custom Roll Forming Machine
Spiral Galvanized Grain Silo Tank 200kw Custom Roll Forming Machine Spiral Galvanized Grain Silo Tank 200kw Custom Roll Forming Machine Spiral Galvanized Grain Silo Tank 200kw Custom Roll Forming Machine Spiral Galvanized Grain Silo Tank 200kw Custom Roll Forming Machine

Large Image :  Spiral Galvanized Grain Silo Tank 200kw Custom Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE, BV, SGS
Model Number: YX-230
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD33000-USD85000/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20set/month

Spiral Galvanized Grain Silo Tank 200kw Custom Roll Forming Machine

Description
Name: Spiral Galvanized Grain Silo Tank Roll Forming Machine For Corrugated Sheet Side Panel Material: Galvanized
Key Selling Points: Easy To Operate Warranty: 2 Years
Customized: Yes Place Of Origin: Hebei, China
PLC: Delta Roller Material: GCr15
Usage: Building Cutting Blade Material: Cr12
High Light:

200kw Custom Roll Forming Machine

,

gearbox drive roll forming machine

,

15m/min custom roll forming machine

Spiral Galvanized Grain Silo Tank Roll Forming Machine For Corrugated Sheet Side Panel



1.Machine Production:

Machine sizes:
46m*3.2m*1.8m
Power:
200kw
Machine weight:
75T
Roller diameter:
Φ150mm
Molding row:
26rollers
Transmission Mode:
Gearbox drive
Roller material:
Cr12mov(HCR58-62)
Machine Speed:
8-15m/min



2.Technical Parameter

1) Main power: 200KW motor made in China
2) Roll stations: 26 stations
3) Gearbox drive
4) Diameter of shaft:150mm
5) Cutting system: hydraulic non-stop cutting
6) cutting Length tolerance:3±1.5mm
7) Working speed: 8-15m/min(not including the cutting time)
8) Thickness: 0.3mm--2mm,G350--550Mpa tensile galvanized or prepainted steel sheet.
9) Coil input width size:1250mm
10) Material of roller: 45# ,HRC45--52
11) Material of blade mould: Cr12, quenched 58-62
12) Size of machine: 46m*3.2m*1.8m
13) Machine structure: wall structure (see the picture below)
15) Hydraulic power: 200kw
16)Hydraulic pressure :12Mpa
17) The solenoids are from in Taiwan
18) the hydraulic pipes are from Chinese famous brand
18) way of control: PLC control,Siemens made in Germany
19)Yaskawa inverter made in Japan
20) All of the contactors are Schneider/Omron brand
21) All of the switches are Omron brand
22)Omron encoder measures the length
23)Electrical: 380V,50Hz,3Ph
24)air plugs installed on the PLC cabinet



3. Our advantage

1) Reliable design
All of our product designs are provided by our designers., the strength of silo,resistance coefficient of the typhoon and the bending resistance data are perfectly calculated by experts.

2) State of the art manufacturing technology
Every parts of the cement silo are manufactured by advanced cutting and drilling technology, they are implemented with unique surface cleaning procedure then painted with fine coating.

3) Short production period
Our cement silo is in modular production, every components are produced by stream-lined workshop, in this way, we can significantly reduce the production cycle, so as to ensure fast delivery.

4) Excellent sealing condition
Between every junctions, we insert special silicone rubber and compress them from 5mm into 1mm, the strong elasticity effect will automatically fill in every possible leaks, we also use glass cement to seal the surface of the junction, so as to re-ensure the sealing condition and prevent any infiltration of moisture.

5) Easy delivery and installation
Our silos are produced in parts, they can be easily packed into containers regardless of the size, since all the manufacturing process are finished in factory, all you need to do is to assemble the parts of silos after delivery, that will save you quite amount of time.



4. Our Services

Guarantee:

18 months free service/ pay service all the machine life

Installation and training:

If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.



5. Photos:

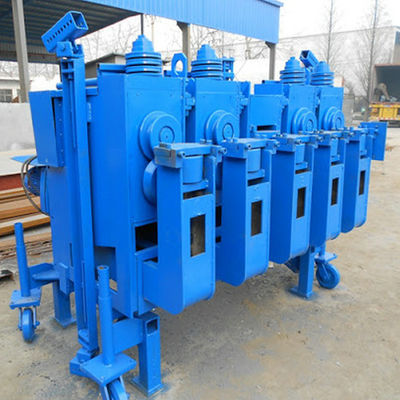

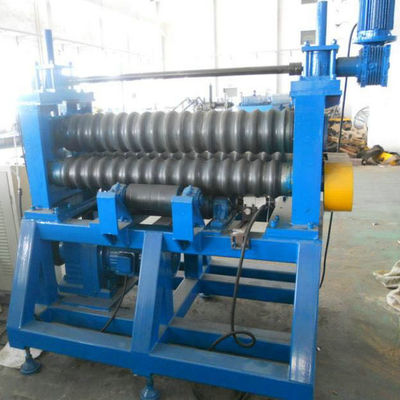

Spiral Galvanized Grain Silo Tank 200kw Custom Roll Forming Machine 0

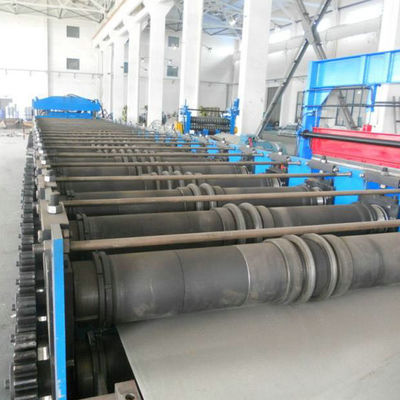

Spiral Galvanized Grain Silo Tank 200kw Custom Roll Forming Machine 1
