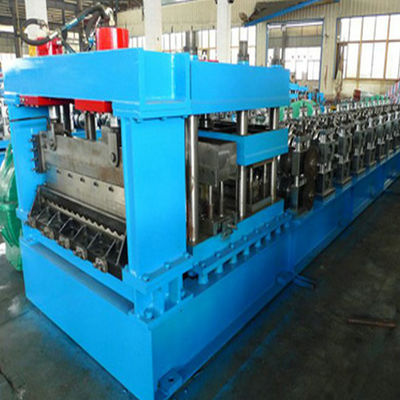

15m/Min Delta Plc Control Silo Roll Forming Machine

15m/Min Delta Plc Control Silo Roll Forming Machine
15m/Min Delta Plc Control Silo Roll Forming Machine 15m/Min Delta Plc Control Silo Roll Forming Machine 15m/Min Delta Plc Control Silo Roll Forming Machine 15m/Min Delta Plc Control Silo Roll Forming Machine

Large Image :  15m/Min Delta Plc Control Silo Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE, BV, SGS
Model Number: YX-230
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD33000-USD85000/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20set/month

15m/Min Delta Plc Control Silo Roll Forming Machine

Description
Name: Automatic Grain Bin Corrugated Steel Silo Roof Roll Forming Machine PLC Control Marketing Type: Ordinary Product
Key Selling Points: Easy To Operate Punching Device: Iincluded
Customized: Yes Place Of Origin: Hebei, China
PLC: Delta Roller Material: GCr15
Usage: Building Cutting Blade Material: Cr12
High Light:

plc silo roll forming machine

,

Delta silo roll forming machine

,

15m/min silo roll forming machine

Automatic Grain Bin Corrugated Steel Silo Roof Roll Forming Machine PLC Control



1. Machine Production:

Machine Details:

Decoiler / Uncoiler:

Coil Width : Max. 1500mm

I.D : 510-610mm

O.D: Max. 1300mm

Capability: Max. 10 Tons

Decoiler type: Manual / Hydraulic/Automatic



Feeding & Leveling:

Pinch feeding: 3 Units ( 6 Rollers )

Leveling : 7 Rollers ( Upper 3 Rollers, Bottom 4 Rollers )



Punching device:

Punching motion: Hydraulic Punching, Post-punching

Punching dies: Cr12 Mov Steel, HRC58-62

Punching station: 1-2 Unites ( depend on hole patterns )

Punching in longitude controlled by PLC, punching at horizontal adjusted by manual hand wheel.

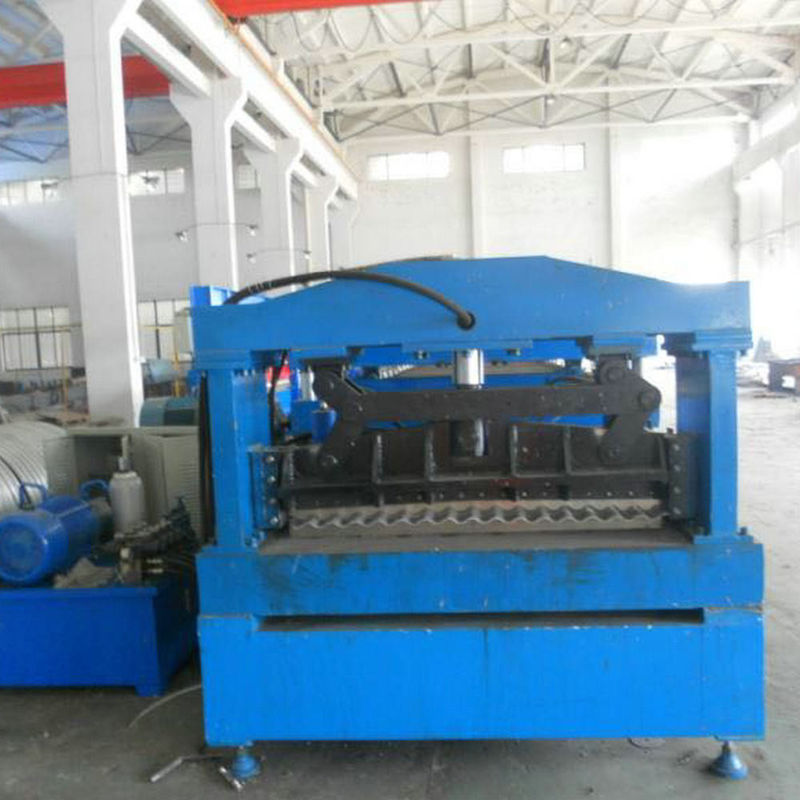

Cutting device:

Cutting motion: Hydraulic Cutting, post-Cutting ( cutting sheet after forming )

Cutting blades: Cr12Mov with heat treatment HRC58-62

Length Measuring: Automatic length measuring by encoder & PLC.

Cutting Tolerance: +/-1.5mm(per 3m)



Roll Forming Machine:

Forming Stations: 17 Stations

Rectifying: 1 unit

Roller material: GCr15 steel, heat treatment

Diameter of shaft: 100mm

Shaft material: High grade 45# steel

Drive type: Gear-box

Forming speed: 0-15m/min

Main power: 22KW(11kw*2)

Servo motor: 2 Units



Electrical control :

PLC: PANASONIC Brand or Custom-made

Inverter: YASKAWA Brand or Custom-made

Touch screen: MCGS Brand or Custom-made

Operation type: Touch screen & Button



Hydraulic Station:

Hydraulic station: Famous Chinese brand

Hydraulic power: 30KW



Runout Table :

Table type: Simple non-power type

Function: To support the finished panels





2. Our advantage

Reliable design All of our product designs are provided by our designers., the strength of silo,resistance coefficient of the typhoon and the bending resistance data are perfectly calculated by experts.
State of the art manufacturing technology Every parts of the cement silo are manufactured by advanced cutting and drilling technology, they are implemented with unique surface cleaning procedure then painted with fine coating.
Short production period
Our cement silo is in modular production, every components are produced by stream-lined workshop, in this way, we can significantly reduce the production cycle, so as to ensure fast delivery.

Excellent sealing condition Between every junctions, we insert special silicone rubber and compress them from 5mm into 1mm, the strong elasticity effect will automatically fill in every possible leaks, we also use glass cement to seal the surface of the junction, so as to re-ensure the sealing condition and prevent any infiltration of moisture.
Easy delivery and installation Our silos are produced in parts, they can be easily packed into containers regardless of the size, since all the manufacturing process are finished in factory, all you need to do is to assemble the parts of silos after delivery, that will save you quite amount of time.


3. Payment terms and after-sale service:

1) FOB Tianjin
2) Payment: 30% T/T deposit, and pay the balance before shipping.
3) Delivery time: 60 working days.
4) Guarantee period: 18 months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
5) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.
6) Installation and training:
1. If buyers visit our factory and check the machine, we will teach you how to install and us the machine, and also train your workers/technician face to face.
2. Without visiting, we will send you user manual and CD to teach you to install and operate.
3. COST OF INSTALLATION:
The buyer should pay the installation charges (USD 100 one man one day). To the seller’s appointed account by T/T before the seller’s technicians go to the buyer’s factory. The buyer pays the seller’s technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc.
