C89 C100 C140 Light Steel Keel 14mm Metal Roll Forming Machine

C89 C100 C140 Light Steel Keel 14mm Metal Roll Forming Machine
C89 C100 C140 Light Steel Keel 14mm Metal Roll Forming Machine C89 C100 C140 Light Steel Keel 14mm Metal Roll Forming Machine C89 C100 C140 Light Steel Keel 14mm Metal Roll Forming Machine C89 C100 C140 Light Steel Keel 14mm Metal Roll Forming Machine

Large Image :  C89 C100 C140 Light Steel Keel 14mm Metal Roll Forming Machine

Product Details:
Place of Origin: China, Hebei
Brand Name: CHBEST
Certification: CE/ISO
Model Number: CHBEST-130
Payment & Shipping Terms:
Minimum Order Quantity: 1sets
Price: USD+7500+SET
Packaging Details: Standard
Delivery Time: 35days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 15sets/month

C89 C100 C140 Light Steel Keel 14mm Metal Roll Forming Machine

Description
Name: C89 C100 C140 Light Steel Keel Ceiling Metal Roll Forming Machine For Building Color: As Your Require
Voltage: 380V/50HZ/3PHASE Material: PPGI/GI
Frame Panel Thickness: 14mm Warranty: 2 Year
High Light:

c89 metal roll forming machine

,

c100 metal roll forming machine

,

14mm metal roll forming machine

C89 C100 C140 Light Steel Keel Ceiling Metal Roll Forming Machine For Building





Light Gauge Steel Frame Machine--C89 villa frame rolling forming machine is designed to make the C89 light frame in batch fully automatic.

Mainly it is used for drywall building part. the 89 model is generally used as the outer wall and the inner wall of the third floor or the partition wall (this equipment can be completed under the third floor); Generally used as an outer wall of six or less layers (in order to save materials, the outer wall is generally 140 models, and the inner wall is 89 models).



Machine Component

Decoiler 1set
Roll Forming Machine 1set
Cutting Device 1set
Multi Revsiting 1set
PLC Control Box 1set
Hydraulic Pump 1set
Output Table 1set



Decoiler

Max. Width:300 mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1000 mm
Max. Loading Capacity: 3000 kgs

Type: Manual Or Hydraulic (Optional)

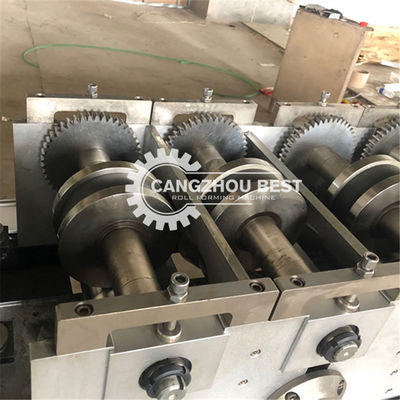

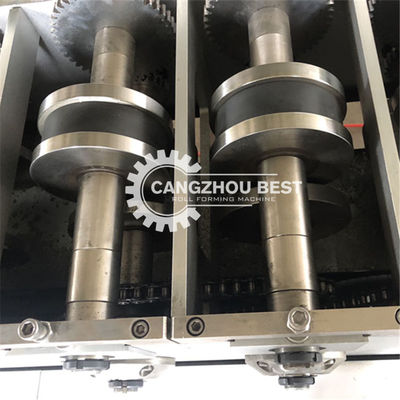

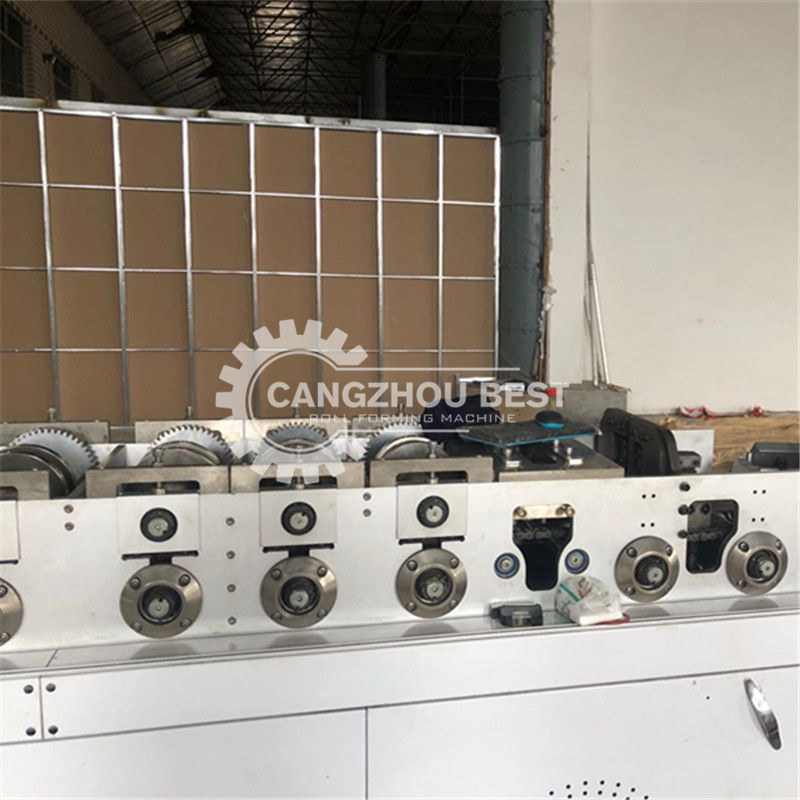

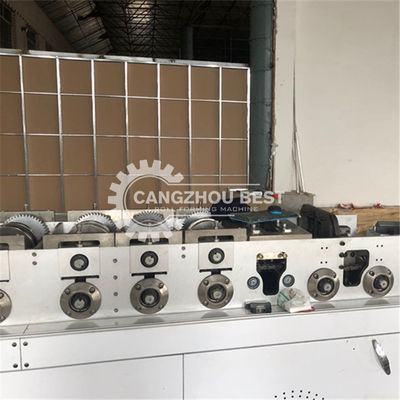

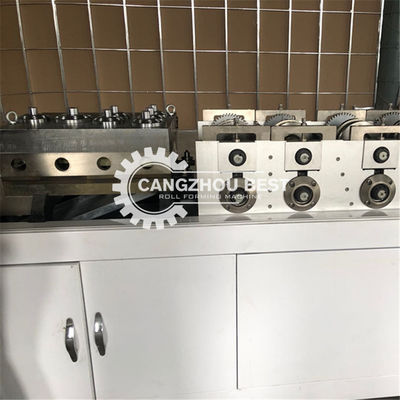

Roll Forming Machine

Material Thickness: 0.6-1.2mm PPGI and GI

Roller Stations: 14 groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°

Diameter of shaft: 65mm

Bottom frame: 36# H-section steel
Motor Power: 3kw

Driven type: 1.0"Chain

Diameter of shaft: 65mm

Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°



Cutting Device

Type

Hydraulic, Automatic Cut-Off

Power 3kw
Cutting Blade Material

Cr12 steel after treatment Hardness for Heat Treatment:HRC55 – 60°





Multi Revsiting Device

Rollers: 1 group

Material for roller: 45# steel polished and coated with chrome HRC55-60°

Functon:it uses for revising the finished product to make the product straight.



Control System

Type: PLC Frequency Control System with touch screen
PLC Brand: Delta
Encoder Brand: Omron

Length Error: ±2mm

Language: English and Chinese



Hydraulic Pump

Main Item Parameter detail
Motor 3kw China brand or according to your request
Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system Cooling fan



Output Table

No power type
Length: 2m







Work Flow

Decoiler------feeding------roll forming------cut to length----multi-revising -----output table

C89 C100 C140 Light Steel Keel 14mm Metal Roll Forming Machine 0



Packing Detall

1.

40 GP container ; main machine naked and fastened with iron wire in the container.

2.

Rollers were painted with oil and packed with plastic film.

3.

Electrics devices be packed with wooden box.for Standard export packing.

4.

All Components Fixed by steel wire with Container.





RFQ

Step 1: Tell us your requirements
Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative
Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.
Step 4: Advanced payment and production
Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract.
Step 6: Balance payment and shipping
Step 7: Handing Shipping files to help clients get goods from transporter in time.
Step 8: Clients get goods and go into warranty time.









C89 C100 C140 Light Steel Keel 14mm Metal Roll Forming Machine 1C89 C100 C140 Light Steel Keel 14mm Metal Roll Forming Machine 2
