8mm U Rack PLC Highway Guardrail Roll Forming Machine

8mm U Rack PLC Highway Guardrail Roll Forming Machine
8mm U Rack PLC Highway Guardrail Roll Forming Machine 8mm U Rack PLC Highway Guardrail Roll Forming Machine

Large Image :  8mm U Rack PLC Highway Guardrail Roll Forming Machine

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 50-60 days
Supply Ability: 10sets/month

8mm U Rack PLC Highway Guardrail Roll Forming Machine

Description
Product Name: 8 Mm Thcikness High Way Guardrail U Rack Roll Forming Machine Color: Blue Or As Your Request
Machine Power: 30kw+15kw Control System: PLC
Warranty: 2 Years Life Time: More Than 10 Years
High Light:

8mm Highway Guardrail Roll Forming Machine

,

PLC Highway Guardrail Roll Forming Machine

,

u rack guardrail roll machine

8 mm thcikness High Way Guardrail U Rack Roll Forming Machine



Main Features

1) Simple structure in linear type ,easy in installation and maintation.
2) Modular Design: Easy To Maintain And Interchange.
3) Simple And Easy Operation: With Touch Screen/Operation Buttons.
4) 1 Year Warrenty: For Whole Roll Forming Machine (Except For Wear And Tear Parts)
5) Worldwide Service: Impressive Roll Forming Solution And Transport Lead Time.



Working flow
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table


Machine Component

De-coiler 1 set
Leveling device 1 set
Forming machine 1 set
punching device 1 set
Cutting device 1 set
PLC control box 1 set
Hydraulic pump station 1 set
Production support table 1 se




Technical parameter:


1. Matching material: feed width:480mm, forming thickness(2.0-3.2mm),Q235 galvanized steel strip.

2. Material thickness: 2-3.2mm

3. Width: 483mm ( or according to customers requirement )

4. Effective material width: 312mm (or according to customers requirement)

5. Main motor power for forming: 22kw

6. Decoiler: Hydraulic decoiler

7. Weight capacity of Decoiler: 5 Ton

8. Forming speed: 10-12m/min

9. Hydraulic station power: 11 kw

10.Roll forming stations: about 17

11. Hydraulic pressure: 20 mpa

12. Controlling system: PLC

13. Total weight: about 25 Ton

14. Voltage: 380V/ 3phase/ 50 Hz or according to customer local input power.

15. Material of roller shaft : High grade 45# steel

16. Material of Roller: GCr15 bearing steel,quenched treatment.

17. Surface of roller coated with Hard Chrome 0.05mm thickness

18. Type of forming machine: single station with chain transmission

19. Type of cutting: Hydraulic cutting

20. Material of blade: Cr12 mould steel with quenced treatment

21. Press module material: 40GCr ( nitrogen treated )

22. Electrical control: PLC frequency control system with touch scree

23. Cutting tolerance: +/- 0.5mm

24. Heat treatment of cutting blade: HRC 58-60

25. Material of cutter blade: Cr 12 mould steel with quenched treatment.

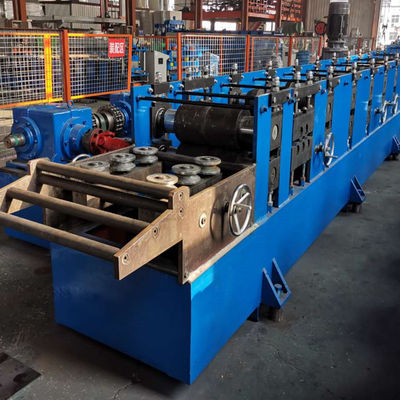

Mahcine photo

8mm U Rack PLC Highway Guardrail Roll Forming Machine 08mm U Rack PLC Highway Guardrail Roll Forming Machine 1

Processing Flow

8mm U Rack PLC Highway Guardrail Roll Forming Machine 2

Re-sale Service :
1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.
