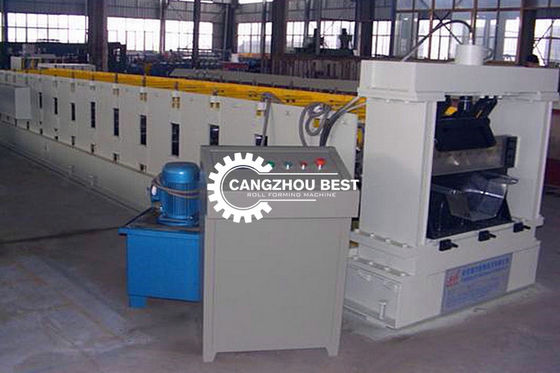

Electric Cutting 17 Stations 17.7kw K Span Machine For Roof

Electric Cutting 17 Stations 17.7kw K Span Machine For Roof
Electric Cutting 17 Stations 17.7kw K Span Machine For Roof Electric Cutting 17 Stations 17.7kw K Span Machine For Roof

Large Image :  Electric Cutting 17 Stations 17.7kw K Span Machine For Roof

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD$80000---100000
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 20 sets/month

Electric Cutting 17 Stations 17.7kw K Span Machine For Roof

Description
Voltage: 380V Or As Customize Condition: New
Weight: Around 10.0 Tons (depend On Final Design) After-sales Service Provided: Field Maintenance And Repair Service
Tile Type: Colored Glaze Steel Use: Roof
High Light:

17.7kw k span machine

,

17 stations k span machine

,

17.7kw k span roof machine



Electric Cutting 17 Stations 17.7KW Large Span Roof Panel Roll Forming Machine 45# Steel



Main Specifications Of Large Span Roof Panel Roll Forming Machine

Thickness of sheet: 0.8-1.5mm

  • Mounting dimension of Large Span Roll Forming Machine: 8900mmx2250mmx2300mm
  • Total weight: about 13 Ton
  • Forming Station: 17 stations
  • Control system: electric control
  • Main motor power: 17.7KW
  • Forming Power is 7.5KW
  • Curving motor power: 4KW
  • Electric cutting motor power: 4kw
  • Conical Power is 2.2KW
  • Material of rollers: 45# steel, quenched HRC58-62
  • Material of shaft: 45# steel, adjusted
  • Material of cutting blade: Cr12 steel
  • Quenching hardness: HRC58-60

Technical Details

Machine Specifications
Weight About 13000kgs
Size About 9.5m x 2.3m x2.5m (length x width x height)
Color Main color: white
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 0.6-1.6mm
Coil width 914mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 12-14
Diameter of forming rollers shafts 75mm
Working Speed Straight sheet: 15m/min
Arch sheet: 13m/min
Sewing: 10m/min
Max span 38-42m
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 15kw
Hydraulic unit motor power: 4kw
Bending power: 4kw
Electric voltage According to customer’s requirement
Main Components
Decoiler (manual and automatic for options) 1 set
Guiding device 1 set
Roll Forming system 1 set
Curving/Bending system 1 set
Hydraulic Cutting system 1 set
PLC control box 1 set
Hydraulic unit 1 set
Products table 1 set
Sewing equipment 1 set

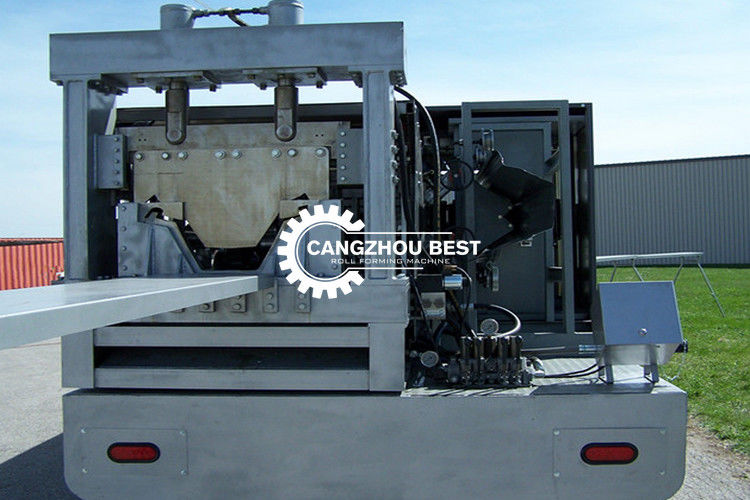

K-Span Roll Forming Machine
End product view



K-Span Roll Forming Machine
End product view

K-Span Roll Forming Machine
