Product Details:
|
| Name: | Newest Plc Control 850mm Corrugated Metal Roofing Sheet Roll Forming Machine | Color: | As Your Require |
|---|---|---|---|
| Material: | PPGI/GI | Control System: | PLC |
| Roller Station: | 11groups | Warranty: | 2year |
| High Light: | 850mm corrugated roof sheet making machine,stable roof making machine,3kw Corrugated Roof Sheet Making Machine |
||
Newest Plc Control 850mm Corrugated Metal Roofing Sheet Roll Forming Machine
| No. | Name | Qty. |
| 1 | Decoiler | 1set |
| 2 | Feeding and guiding device | 1set |
| 3 | Roll forming machine | 1set |
| 4 | Punching machine with servo feeding | 1set |
| 5 | Hydraulic cutting device | 1set |
| 6 | PLC control box | 1set |
| 7 | output table | 1set |

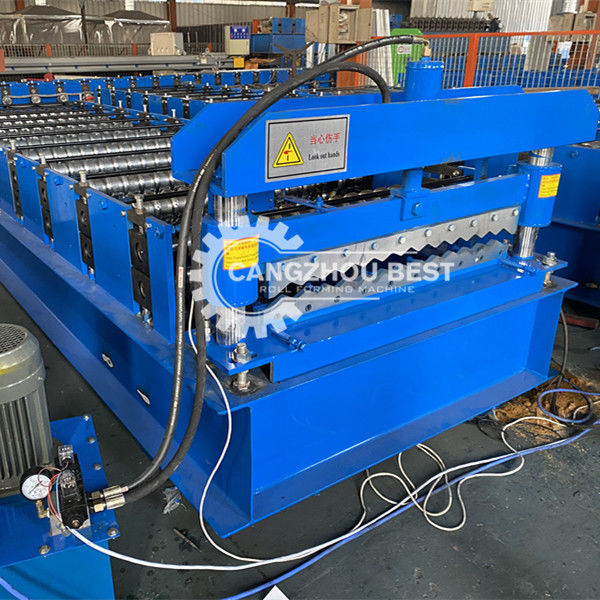

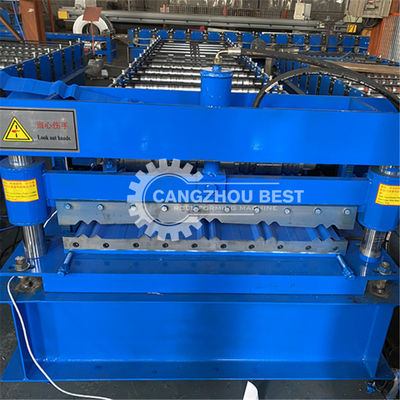

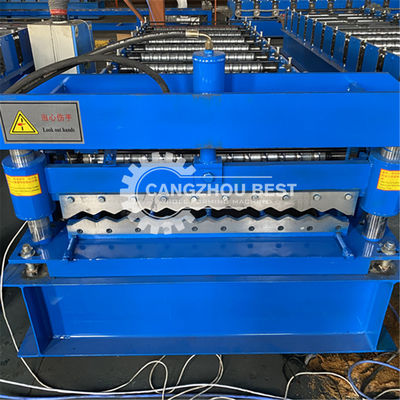

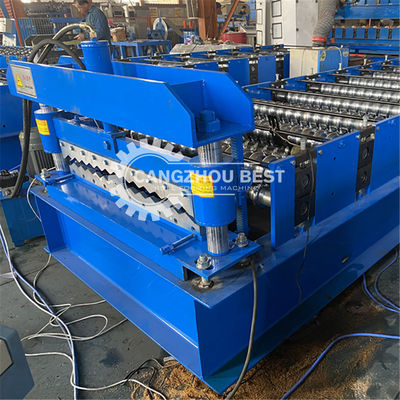

Roll Forming Machine
Material Thickness: 0.3-0.8mm PPGI and GI
Roller Stations: 11groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
Diameter of shaft: 70mm
Shaft Material: 45# steel
Frame panel thickness: 14mm
Bottom frame: 36# H-section steel
Motor Power: 3kw
Driven type: 0.6＂Chain
Speed:8-12m/min
Cutting Device
| Hydraulic Power | 3kw |
| Cutting Type |
Hydraulic, Automatic Cut-Off |
| Cutting Blade Material |
Cr12 steel after treatment |
Control System
Type: PLC Frequency Control System with touch screen
PLC Brand:Delta
Encoder Brand: Omron
Length Error: ±2mm
Language: English and Chinese
Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
Hydraulic Pump
| Motor Power | 3kw |
| Oil Type |
46# hydraulic oil |
|
Pump Brand |
China Brand |
Output Table
No power type
Length: 2m
Company Proifle
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
Packing Detall
1*40 GP container ; main machine naked and fastened with iron wire in the container.
2. rollers were painted with oil and packed with plastic film.
3. electrics devices be packed with wooden box.for Standard export packing.
4. All Components Fixed by steel wire with Container.
Our Service
| Pre-Sales-Service |
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face. |
| After-Sales-Service | Training how to instal the machine, training how to use the machine. Engineers available to service machinery overseas. If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things. |
FAQ
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4)Q:What can you do if the machine broken?
A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.
