Product Details:
|
| Name: | Steel Wave Profile Corrugated Roofing Sheet Panel Roll Forming Machine Line | Roller Material: | Hydraulic Cutting |
|---|---|---|---|
| Type: | Roll Forming Machine | Cutting Blade Material: | Cr12 |
| Delivery Time: | 25-30 Days | Shaft Material: | 45# Steel, Quenched |
| Control System: | PLC | Advantage: | High Speed, Low Energy Consumption |
| Speed: | 8-12m/min | Side Panel: | 20mm |
| High Light: | Profile corrugated roll forming machine,8m/min corrugated roll forming machine,20mm corrugated roll forming machine |
||

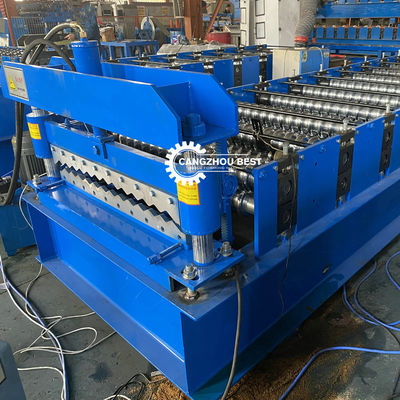

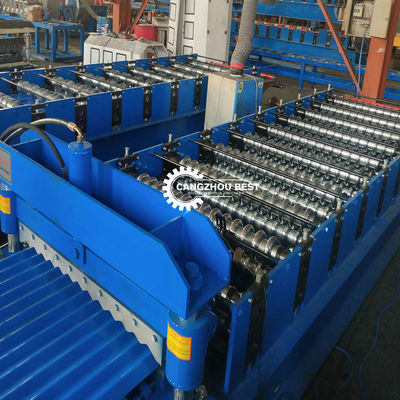

Steel Wave Profile Corrugated Roofing Sheet Panel Roll Forming Machine Line
| - Color Steel Sheet Roll Forming Machine processing galvanized steel thickness 0.2-0.8mm,more customers use 1250mm,1200mm,1000mm coil.We can customized it as your request. |
| - Corrugated is very popular design in all over of the world,it is used for roof and wall. |
| - Color Steel Sheet Roll Forming Machine can stable and long time working to satisfied high quantity production.Machine working speed is 10-15m/min. |
| - You can setting length and pieces in PLC,then the roll forming machine can automatic working.It is only need one or two workers. |
| - Every roll forming machine everyday working about 8 hours.Workers should be everyday clean the machine and add oil. |
| NO. | Item | Specification |
| 1 | Processing material | Color steel/galvanized aluminum/galvanized |
| 2 | Processing thickness | 0.4-0.7mm |
| 3. | main motor power | 4KW with Cycloidal reducer |
| 4. | Hydraulic station power | 4kw |
| 5. | Hydraulic oil | 36# |
| 6. | Diameter of principal axis | Φ70mm |
| 7. | Material expand width | 780mm |
| 8. | Galvanization thickness | 0.05mm |
| 9. | Processing precision | within 1.00mm |
| 10. | Transmission | Sprocket&Chain(1inch) |

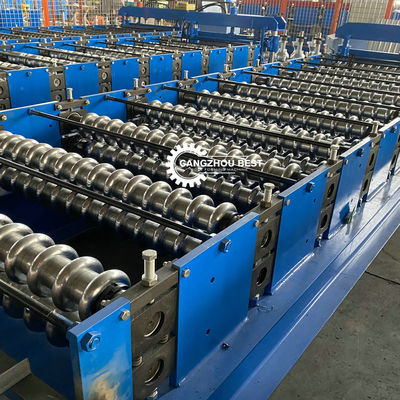

| 11 | Roller station | 14 Rollers |

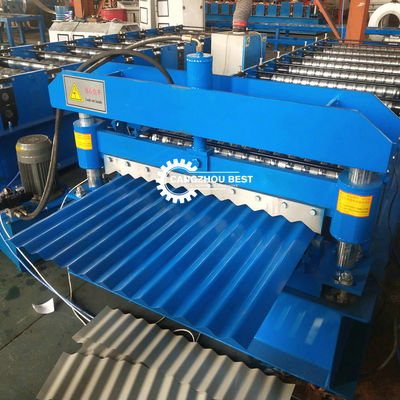

| 12 | Cutting type | Hydraulic cutting type |
3. Components of roll forming machine:
| No. | Item. | Unit. | Qty. |
| 1. | Manual decolier | set | 1 |
| 2. | Molding core | set | 1 |
| 3. | PLC control box | set | 1 |
| 4. | Hydraulic pump | set | 1 |
| 5. | Exit rack | set | 1 |
| 6. | Cutting system | set | 1 |
4. Guarantee:
12 Months guarantee. if some part of the machine is broken. we will supply the best part,but if the damaged parts due to operate error,buyer will pay for the shipping fee.
After-sale service:
We sent technician to your country to fix the machine.the buyer shoule bear all the cost includng:visa,roundtrip ticket and suitable accommodation,also buyer should pay the salary everyday
5. Packing:
- 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packedwith waterproof cloth and card board.
- 2.This producing line is maintained free of charge for 18 months.When the machine isused in China,we will install and debug the machine for free;if it is used at abroad,we willsend the professional technician to debug. Buyers should take all the fees for technicianstravelling abroad.
- 3 AlI the parts in the roll forming machine is free to maintain all the life,if in 18 months ourcompany bear the cost for exchanged the broken part like the new parts cost and expresscost,if more than 18 month,we also free to maintain the broken parts but for send the newparts,the buyer need bear the express cost.
- 4.When ship the roll forming machine,We will also send one set CD and specification(Chi-nese and English) to you with the machine,they can teach you how to operater themachines.
We can produce according to your requirements.
