Product Details:
|
| High Light: | 10m/Min Cold Roll Forming Machine,8kw Cold Roll Forming Machine,hydraulic gutter roll forming |
||
|---|---|---|---|

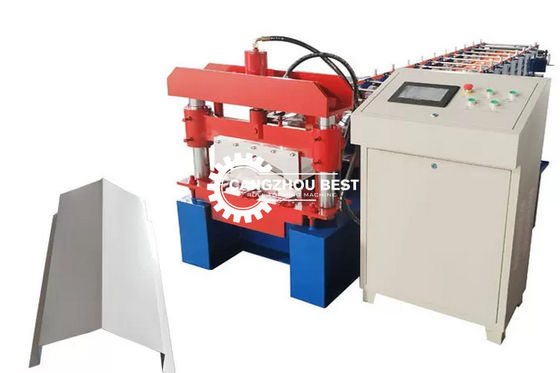

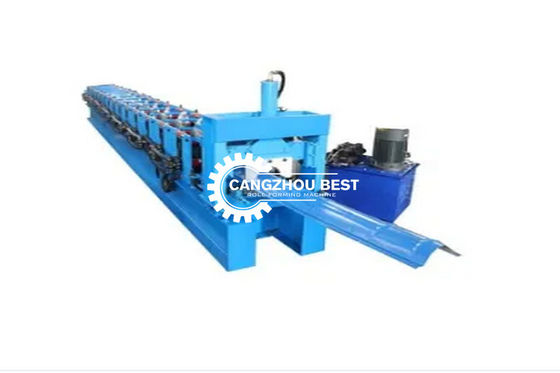

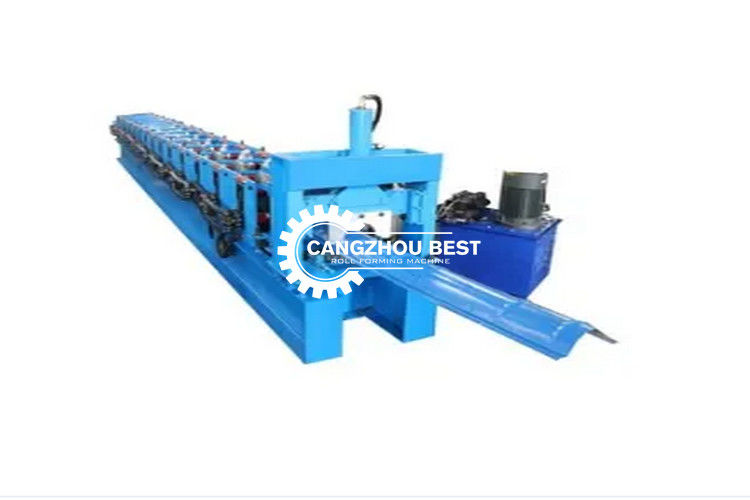

Computer control color steel ridge cap roll forming machine with hydraulic cutter
1. Computer control color steel ridge cap roll forming machine with hydraulic cutter
1). To design and make the best roll forming machine, we took EUROPEAN quality standard;
2). Choose the best material and components, and adopting our 17+ years experience;
3). We achieves that the machine capacity is double of the competitors;
4). The machine working speed can be 60m/min;
5). Very easy to install and operate the roll forming machine.
2. Computer control color steel ridge cap roll forming machine with hydraulic cutter parameters
| parameters | |
| Production Capacity | 10-15 m/min |
| Power(W) | 4+4KW |
| Voltage | 380V 50Hz 3phases |
| Dimension(L*W*H) | 4500*800*1500mm |
| Weight | 2.1T |
| Suitable material | Colored Steel plate, galvanized board, Aluminum plate |
| Width of the raw material | 333 mm |
| Rows of rollers | 12 rows |
| Material of roller | High grade 45# steel(plated chrome on surface) |
| Thickness of raw material | 0.2-0.8mm |
| Certification | ISO |
| Tile Type | Tile Cutting Machine |
| Machine Components | ||
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
3. roll forming machine company profiles
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
4. Comapny advantage:
In Botou, we start the pressure roll forming machine export business from 2008.
As a manufacturer we are specialized in all kinds of roll forming machine, we are not machine supplier, we are a roll forming solution provider.
Provide best price,good quality and fast delivery.
5. FAQ
1). What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
2). Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
3). You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.
4). Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.
5). How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
