Product Details:
|
| Name: | Automatic Galvanized Steel Profile W M Purlin Frame Roll Forming Machine Price | Material: | Galvanized |
|---|---|---|---|
| Control System: | PLC | Warranty: | 2 Years |
| Customized: | Yes | Place Of Origin: | Hebei, China |
| Work Pressure: | 16Mpa | Roller Material: | GCr15 |
| Usage: | Building | Weight: | 3.5tons |
| High Light: | M purlin roll former,w purlin roll former,16Mpa purlin roll former |
||
Automatic Galvanized Steel Profile W M Purlin Frame Roll Forming Machine Price
1. Technical Parameters
| No | Items | Technical Parameters | |
| 1 | De-coiler | ||
| Width of Strip | ≤550mm; | ||
| Thickness of Strip | ≤3mm; | ||
| Inner Diameter of Coil | 480-520 mm(according to customer’s requirements) | ||
| Outer Diameter of Coil | φ1300mm;Loading Weight:≤5T | ||
| Expand Way | Hydraulic,Manual | ||
| 2 | Roll Forming | ||
| Main forming: 18 stations forming (inside 1 station for forming flange, 87-95 degree adjustable), 13 stations CZ change mould, turnover 180 degree to finish the change.Changing the Specification size by means of an electric button. | |||
| Forming Station | 18 Stations | ||
| Driven | Gear | ||
| Pitches of Passes | 450mm | ||
| Max. Width of Strip | 550mm | ||
| Max. Thickness of Strip | 3mm | ||
| Roller Shafts | 70mm ,40Cr (quenching and tempering) | ||
| Roller Material | Cr12,Hardness HRC58-60° | ||
| Main Motor Power | 37KW | ||

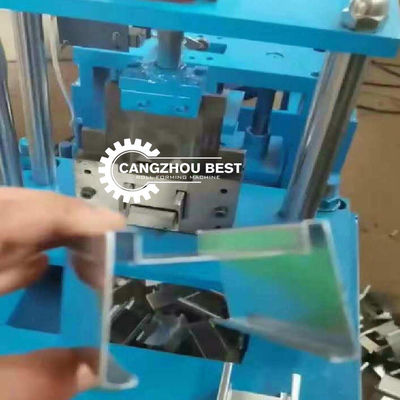

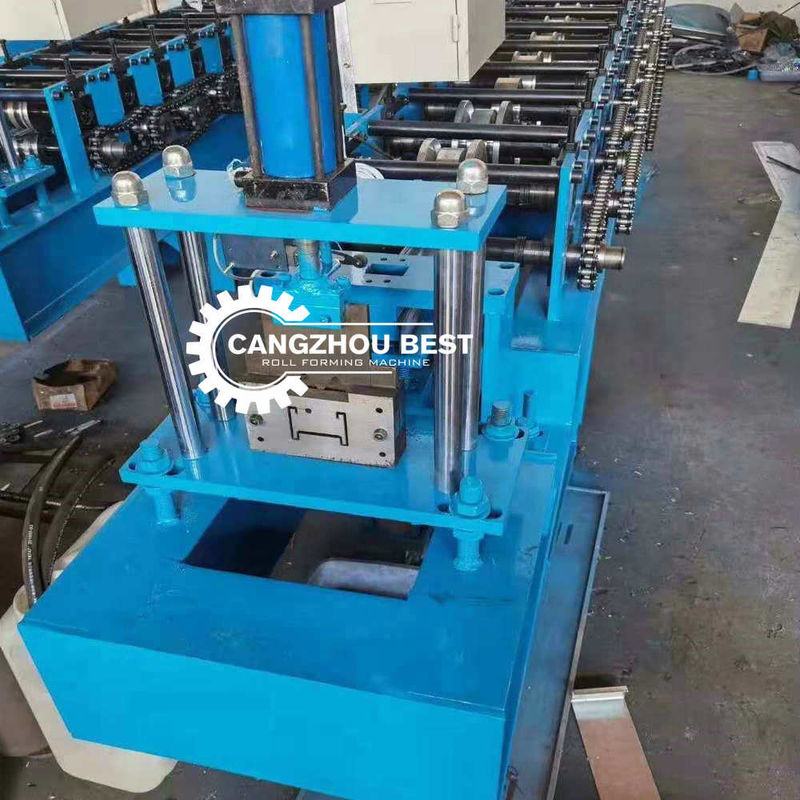

| 3 | Punch /Cutting Device | ||
| Punch/ Cutting Way | Hydraulic | ||
| Punch | punch single hole and dual hole after forming, extra each Φ14mm and Φ16mm single hole and dual hole 26*16mm and 26*14mm one set. | ||
| Cutting Accuracy | Length Encoder Control Full Length (+2MM) | ||
| Material of Cutting Blade | Cr12MoV | ||
| Hydraulic motor | out five-start piston rod | ||
| Hydraulic tank | motor power 22kw | ||
| Tank volume | 500L | ||
| 4 | Unloading | ||
| Manual blanking structure | Rollers | ||
2. Components of the machine
| No | Name | Quantity | Remarks | |
| 1 | Decoiler | 1set | Up to customer | |
| 2 | Main Machine | Leveling Device | 1set | |
| Punching Device | 1set | |||
| Roll Forming | 1set | |||
| Post Cutting | 1set | |||
| Hydraulic System | 1set | |||
| 3 | Electric Control System | 1set | ||
| 4 | Supporter | 2pcs | Up to customer | |
3. Why choose this machine?
1. Lifetime seivices
2. Introduced Mitsubishi PLC with touch screen to machine controll system.
3. One worker operation (minimum)
4. Lifetime>10years: roller cover with 0.05mm chrome
80mm diameter solid steel shaft
Cutting blade with heat treatment.
5. Cr12 mould steel cutter with quenched treatment.
6. Product cut-to-length.
8.Technician overseas installing and training available
4. FAQ:
Q: What's the payment terms of your machine?
A: Normally its 30% T/T in advance and 70% by T/T or LC before shipment.
Q: What's the delivery time of your purlin machine?
A: about 45-50 working days
Q: Did you test you machine before delivery?
A: Yes, all our machines will test 24 hours before leave factory.
Q: How can inspect the machine if I can't go to China?
A: We will send you machine testing video and also product sample if required.
Q: Do you provide installation and commissioning?
A: Sure, we have experienced and professional installation team which available for wordwide areas.
