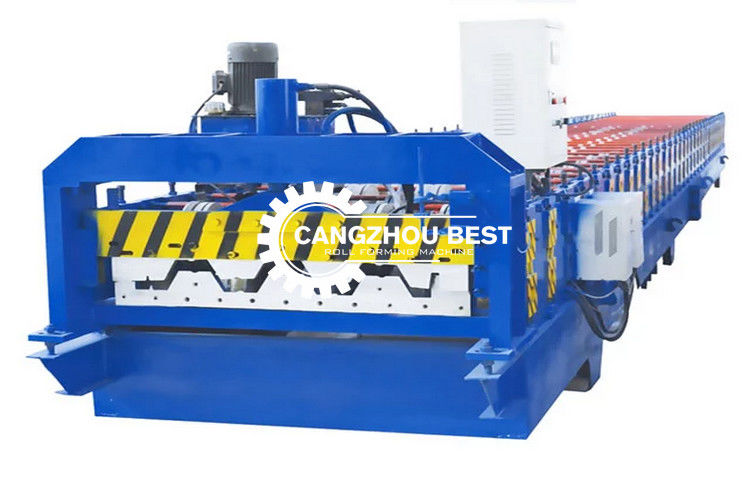

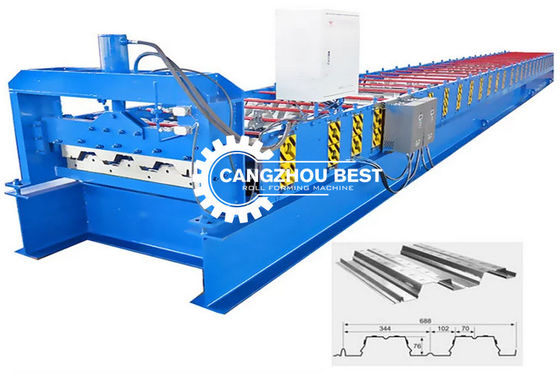

Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V 50Hz 3phases |
|---|---|---|---|
| Condition: | New | Weight: | About 13 Tons |
| Tile Type: | Colored Glaze Steel | Raw Material: | Galvanized Sheet |
| High Light: | 0.8mm floor deck roll forming machine,0.8mm floor deck forming machine,PLC floor deck roll forming machine |
||
Hot Sale Corrugated Roof Roll Forming Machine/Roof Tile Making Machine/Construction Building Material.
|
|
Automatic courrugated roofing&wall roll forming machine
|
||||
|
1
|
Forming size
|
|
Length
|
Width
|
Height
|
|
Ordinary tile
|
5000-5500mm
|
1400-2300mm
|
1300-1500mm
|
||
|
Glazed tile
|
5000-7500mm
|
1400-1500mm
|
1300-1500mm
|
||
|
2
|
Raw material
|
Suitable material
|
Coloerd steel coil,Galvanized coil,Aluminum coil
|
||
|
Feeding width
|
1000mm(Can be customized)
|
||||
|
Thickness
|
0.3-0.8mm
|
||||
|
3
|
Effective width
|
Ordinary
|
740-1250mm
|
||
|
Can be customized
|
|||||
|
4
|
Rollers
|
Material
|
45#Steel plated with chrome
|
||
|
Rows
|
11rows(Determined by the required equipment)
|
||||
|
5
|
Shafts
|
Material
|
45#Steel
|
||
|
Diameter
|
Φ70mm
|
||||
|
6
|
Cutting blade
|
Hydraulic cutting,Cr12 with quenching treatment
|
|||
|
7
|
Capacity
|
8000-40000mm/min
|
|||
|
8
|
Weight
|
3-6T(Determined by the required equipment)
|
|||
|
9
|
Control system
|
PLC control system with transducer inside
|
|||
|
10
|
Machine body
|
H-shape steel:300-450mm
|
|||
|
11
|
Middle plate
|
14-20mm(Determined by the required equipment)
|
|||
|
12
|
Chain
|
1-2Inches
|
|||
|
13
|
Shear blade heat treatment
|
HRC58-60 degree
|
|||
|
14
|
Length precision
|
±2mm
|
|||
|
15
|
Power of hydraulic station
|
3kw(Determined by the required equipment)
|
|||
| Total length of equipment |
5.1m (depend on design) |
Width |
1.5m (depend on design) |
height |
1.5m (depend on design) |
| Motor Power | 3Kw+3Kw | Operating Voltage | 380V | ||
| Production speed | 8 - 10 m / min | ||||
| Transfer method | Chain drive | ||||
| Machine forming shaft | 840 machines 11 rows, 900 machines 9 rows. Large frame: 250H steel, vertical plate 12mm | ||||
| Adjust the set | Using 45 # steel seamless steel pipe finishing | ||||
| Wheel material | 45 # steel hard chrome plated | ||||
| Shaft material | 45 # steel shaft diameter: 65mm solid shaft | ||||
|
Forming part |
Divided into Seiko wheel rotation molding, forming effect is good, reduce the wheel and the friction between the raw materials, debugging convenient, fast. | ||||
| Numerical control system |
PLC panel, KEL-320 displa |
||||
| Counter | The use of domestic photoelectric rotary encoder, A40S6-600-2-12-ACP | ||||
| Cut | 3Kw pumping station, shear pressure type equipment | ||||
| Pressure plate thickness | 0.3—0.8mm | ||||
| Random attachments |
The use of a manual, a gift rack |
||||
| Warranty period | 12 months | ||||
