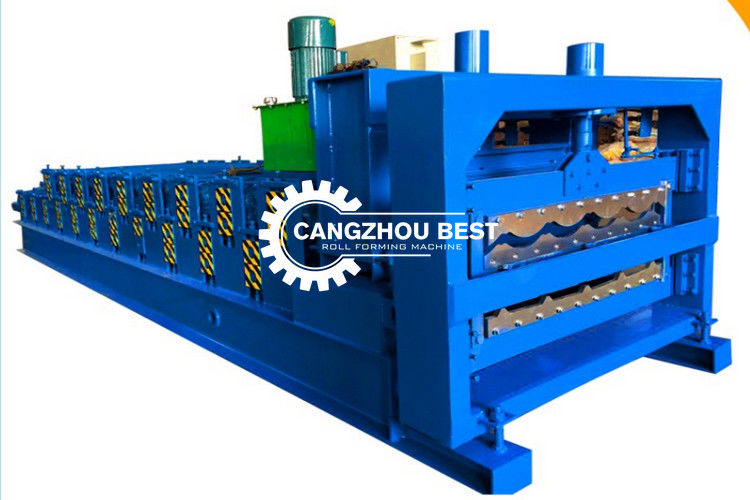

Product Details:
|
| Tile Type: | Colored Glaze Steel | Voltage: | 380V 50Hz 3phases |
|---|---|---|---|
| Condition: | New | Weight: | Around 10.0 Tons (depend On Final Design) |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Dimension(l*w*h): | 7600mm*1300mm*1450mm |
| High Light: | gi roofing sheet roll forming machine,gi tile roll forming machine,20m/min roofing sheet roll forming machine |
||
| No. | Item | Specification |
| 1 | Can Formed Material | PPGI,GI,AI |
| 2 | Equipment operation | Automatic |
| 3 | Voltage | 380V 60Hz 3Phase or as your requirement |
| 4 | Thickness of sheet (mm) | 0.2-1.0mm or as your customized |
| 5 | Material width(mm) | As your requirement |
| 6 | Cover Width of the sheet after formed | As your drawing |
| 7 | The size of the roll forming machine | 6500mmx1500mmx1200mm |
| 8 | Speed | 15-20m/min |
| 9 | Diameter of shaft | 70mm |
| 10 | Weight of the Machine | 4200-4500KGS |
| 11 | Material of rollers | 45# high grade steel |
| 12 | Motor brand | Siemens or Guomao |
| 13 | PLC | Siemens or Delta or Mitsubushi |
| 14 | Total power (kw) | 9kw |
| 15 | Power of hydraulic system | 4.5kw |
| 16 | Power of main molding core | 4.5kw |
| Size | 7500*1550*1650mm |
| Weight | 6000KGS |
| Voltage | 380V/50HZ/3PH |
| Motor Power | 5.5KW |
| Hydraulic Motor Power | 5.5KW |
| Air Cooling System Motor | 0.75KW |
| Forming Steps | 16 |
| Working Speed | 0-5m/min |
| Height of Roofing | 28mm |
| Effective Width | 828mm |
| Material Width | 1000mm |
| Thickness | 0.3-0.6mm |
|
Thickness for common use and test machine |
0.4mm or 0.5mm ( material: PPGI, G350Mpa) |
| Tolerance | ±2mm |
| Roller material |
High grade 45# forged steel, Plated hard chrome and polished all the rollers |
| No | Items | Quantity | Remarks | |
| 1 | Manual/Hydraulic Uncoiler | 1set | Up to customer | |
| 2 | Main forming machine | Pre-cutting device | 1set | Up to customer |
| Feeding device | 1set | |||
| Hydraulic system | 1set | |||
| Roll forming system | 1set | |||
| Hydraulic punching stamp device | 1set | |||
| Post cutting device | 1set | |||
| Protective cover | 1set | Up to customer | ||
| 3 | PLC control system with touch screen | 1set | ||
| 4 | Run out table | 4pcs | Up to customer | |
