Product Details:
|
| Tile Type: | Colored Glaze Steel | Voltage: | 380V 50Hz 3phases |
|---|---|---|---|
| Condition: | New | Weight: | 6T Roof Sheet Roll Forming Machine |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Dimension(l*w*h): | 7600mm*1300mm*1450mm |
| Use: | Roof And Wall Or Any | ||
| High Light: | 8kw roofing sheet roll forming machine,1.0mm roofing sheet roll forming machine,trapezoidal roofing sheet roll machine |
||
No. | Double Layer Glazed Tile roof panel step steel wall sheet roller tile roll forming machine | |
1 | Suitable to process | Colored Steel plate, galvanized board, Aluminum plate |
2 | Control system | PLC control |
3 | Productivity | Up layer: 0-3m/min, Down layer: 8-10m/min |
4 | Width of the raw material | 1000mm |
5 | Thickness of the plate | 0.3-1.0mm |
6 | Rollers | Up layer:15rows, Down layer:15 rows |
7 | Diameter of the rollers | Φ80mm |
8 | Rolling galvanization thickness | 0.05mm |
9 | Material of the cutting blade | Cr12 |
10 | Dimension | 6.5*1.5*1.5m |
11 | Weight | About 5T |
12 | Voltage | 380V 50Hz 3phases |
13 | Power | 4+4kw |
Item | Parameters | |||

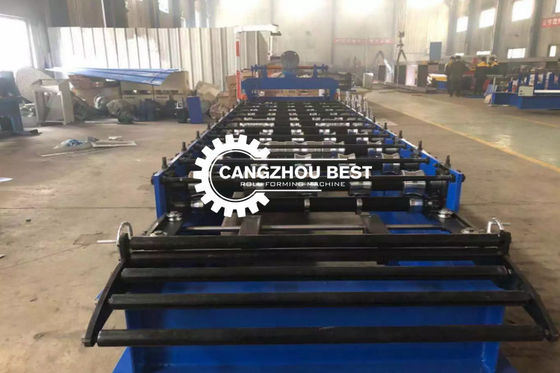

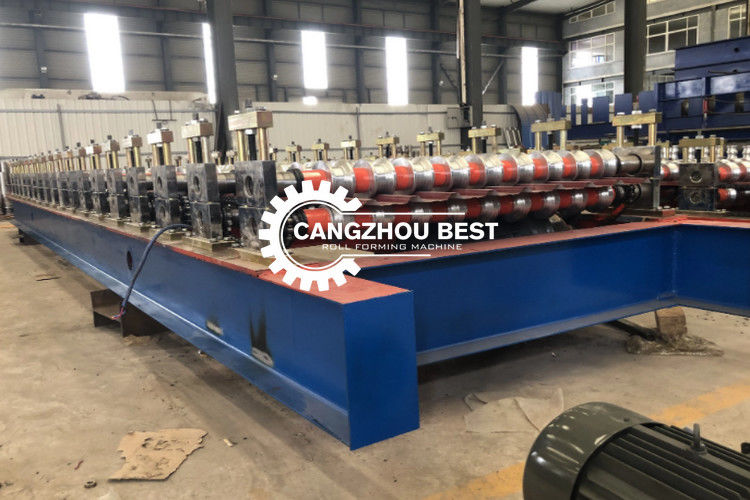

Name | Trapezoidal steel tile roll forming machine | |||
Product | Trapezoidal steel tile | |||
Forming speed(m/min) | 8~15 | |||
Roller material | #45 Steel | |||
Control system | Delta PLC control system | |||
Roller driven type | Chain transmission | |||
Operation | Touch screen and button | |||
Hydraulic station motor power(KW) | 4 | |||
Main motor power(kw) | 4 | |||
Total weight(kg) | 3800 | |||
voltage | 380V or customed | |||
color | According to customer requirements | |||
| Item | Specification | |
| Type | Aluminum coils & galvanized coils |
| Thickness | 0.5-0.6mm | |
| Yield strength | 235Mpa | |
| Roller material | 45#Chrome steel | |
| Forming speed | 15-20m/min | |
| Output speed | 5-6m/min | |
| Speed adjusting mode | AC Frequency | |
| Transmission way | Gear-box transmission (optional) | |
| Cutting mode | Hydraulic cutting | |
| Cutter material | Cr12 mould steel | |
| Length measurement | Encoder | |
| Control mode | Mitsubishi PLC | |
| Operating mode | Button + Mitsubishi Touch screen | |
| Main motor power | 5.5KW | |
| Hydraulic Station power | 5.5KW | |
| Decoiler | 1set |
| Feeding & guiding device | 1set |
| Main roll forming machine | 1set |
| Hydraulic pressing system | 1set |
| Hydraulic cutting system | 1set |
| Controlling system | 1set |
| Run out table | 1set |
