Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 1 Year |
|---|---|---|---|
| Weight: | 15 T | Voltage: | 380V.50HZ.3Phase |
| Dimension(l*w*h): | 13500mm*2700mm*1600mm | Condition: | New |
| High Light: | hollow highway guardrail roll forming machine,plc highway guardrail machine,3mm Highway Guardrail Roll Forming Machine |
||
1) Square pipe welding, strong and durable.
2) Adjustable fastener, safe feeding.
3) Automatic feeding without manual operation.
4) Automatic flattening, no need for secondary processing.

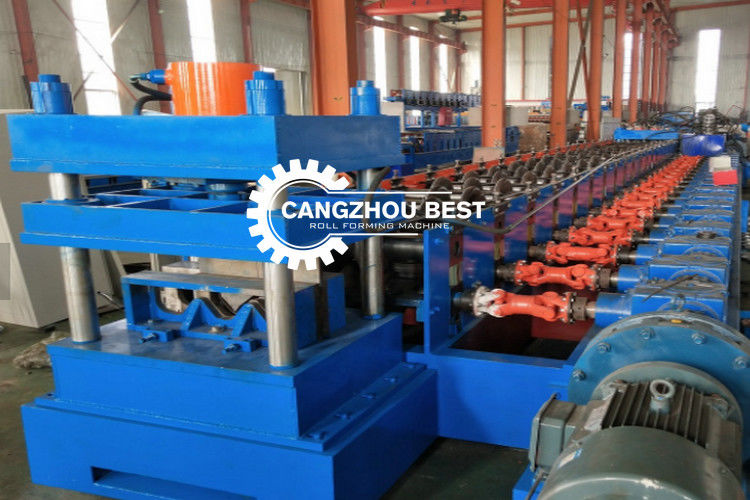

1) The punching mold can be adjusted freely according
to the demand.
2) PLC control, can accurately control the stamping
precision.
3) Automatic waste disposal without manual operation.
1) Gr15 steel rod, stable and durable material.
2) CNC lathe finishing, high precision mold.
3) Surface plating, not easy to corrosion.
1) The cutter materials is Cr12Mov steel which is stable and durable material.
2) The cutter adopts heat treatment technology, hard and durable.
3) PLC control cut off, without manual operation.
1)Panasonic/Mitsubishi PLC control system can be selected.
2)CHNT/Schneider/Omron electronic components can be selected.
3)Assembly line integrated control, no need to repeat operation
|
No. |

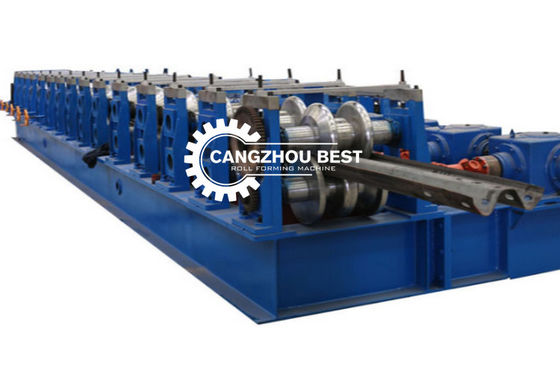

Automatic Freeway Crash Barrier / Highway Guardrail Roll Forming Machine | |
| 1 | Suitable material | galvanized sheet/black iron steel |
| 2 | Thickness of coil sheet | 3-4mm |
| 3 | Coil width | as customer's profile drawing requirement |
| 4 | Effective width | as customer's profile drawing requirement |
| 5 | Material of main frame | 400H-Beam |
| 6 | Diameter of Soild shaft | 90mm, high grade 45# steel |
| 7 | Roller | GCR 15 with hard chromed |
| 8 | Thickness of middle plate | cast iron Memorial archway |
| 9 | Forming station | 16 rows |
| 10 | Drive type | chain or gear box |
| 11 | Power of main motor | 22 kw, Lichao, Shanghai, with reducer |
| 12 | Pump motor | 5.5KW |
| 13 | Forming speed | About 15-20m/min |
| 14 | Hydraulic pump station | 5.5 kw, 40# hydraulic oil |
| 15 | PLC | DELTA(TAIWAN)/Mitsubishi |
| 16 | Material of cutting blades | Cr 12 mov, quenching 58-62℃ |
| 17 | Frequency converter |
It has the advantage of slowing down before cutting, to ensure the length accuracy ±1mm, far better than industrial standard ±3mm. |
| 18 | Switch | CHNT |
| 19 | Frequency changer | Delta,Taiwan |
| Uncoiler | 10T |
| Forming rows | 12 rows |
| Forming method | Roll forming |
| transfer method | 2.5 inch chain drive, side wall panel |
| Roller material | Gcr15 finishing, quenching |
| Roller shaft diameter | 45 # steel after processing Φ110mm |
| Punching method | Hydraulic punching |
| Forming machine power | 37kw |
| Input voltage | 380V, 50-60Hz |
| Hydraulic power | 11kw gear pump |
| Reducer | JZQ500 reducer |
| Coil thickness | 3.0-4.0mm |
| Length error | ± 2m |
| Shearing way | Hydraulic punching and shearing |
| Shear blade | cr12 |
What is the parameter?
| Technical Datas Highway Guardrail Roll Forming Machine | ||
| 1 | Material Width | 500-1000mm |
| 2 | Effective Width | 480-680mm |
| 3 | Thickness of Coil | 3-4mm |
| 4 | Application | Highway Guardrail |
| 5 | Estimated Dimension | 15000mmX1800mmX1200mm |
| 6 | Total Weight | 15 Tons |
| 7 | Main Power | 30 KW |
| 8 | Decoiler | Manual or Hydraulic Decoiler |
| 9 | Inner Diameter | 508mm |
| 10 | Outer Diameter | 1200mm |
| 11 | Loading Weight | 15T |
| 12 | Forming Speed | 6—10m/min |
| 13 | Forming Station | 12-15 |
| 14 | Bracket | Welded with 36 # I-steel |
| 15 | Material of Shaft |
High Grade 45# Steel with 1st Rough Finished and then 2th Refined Finished |
| 16 | Diameter of the Roll | 100mm |
| 17 | Material of Roller |
High Quality CGr15 Quenched HRC58-62 ° |
| 18 | Processing Technology | Rough Processing ---Refined Processing--Hard Chromium Plating. |
| 19 | Material of Rack |
Complete Welded Structure of A3 Steel Plate 20 mm Thickness |
| 20 | Transmission | Chain or Gear Box |
| 21 | Material of cutting blade | Cr12 with Quenched Treatment 60-62 ° |
| 22 | Cutting system | Hydraulic Stop or Tracking Cutting |
| 23 | Voltage | 380V/50HZ/3 Phase or as Customer Require |
