Product Details:
|
| Cutting Type: | Hydraulic | Automatic Grade: | Automatic |
|---|---|---|---|
| Job Thickness: | 1-2mm | Max Sheet Width: | 200-400 Mm |
| Power: | 15HP | ||
| High Light: | 15hp channel rolling machine,15hp channel roll forming machine,2mm channel roll forming machine |
||
Holding Weight: 5-6 tons
Working type: Manual
It uncoiling the coil for the forming machine.
It is manual type, need worker to reotate it to let the coil open.
Control Box
Function: control machine
It control the machine to work manual and automaticly. You can set the details length and pieces, and machine will work automatically, and stop when finish.
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished productsPacking & Delivery
|
Packaging
|
|
|
Size
|
8.3*1.45*1.51m
|
|
Weight
|
5.2T
|
|
Packaging Details
|
1.We have professional technicians for loading
Guaranteed the goods load into container without any damage. 2. Transportation : Machines need one 40 feet container to hold 3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you. |
Product Features And Descriptions

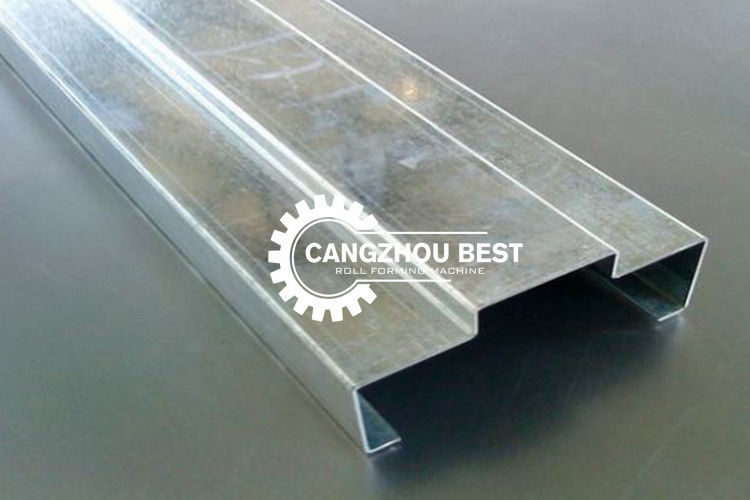

Door frame roll forming machine production door frame is also known as door, usually consists of two vertical frames and upper frame.When the door is bright, there is a middle frame.
Door frame is the contact member of door fan, bright son and wall.
Working flow
Uncoiler--Feeding--Punching--Leveling--Roll-forming--Hydraulic-cutting--Output table
Product Parameters
| Item NO |
Description |
Offered specification |
| 1 | Roll Forming Machine |
Door frame
|
| 2 | Coil width | According the profile |
| 3 | Rolling Speed | 12-15m/min(not include cutting & time) |
| 4 | Rolling Thickness | 0.7-1.2mm GI |
| 5 | Control System | PLC (Panasonic) as list in the note |
| 6 | Un Coiler | 3T manual decoiler |
| 7 | Roller Stations | About 18 stations (according the final design) |
| 8 | Roller Material | 45# forge steel, coated with chrome |
| 9 | Shaft Material and DIA | ￠65mm, material is 45# forge steel |
| 10 | Post cutting | Hydraulic cutting after forming |
| 11 | Maim Motor Power | 7.5kw |
| 12 | Hydraulic Station Power | 5.5kw |
| 13 | Hydraulic Pressure | 12-16Mpa adjustable |
| 14 | Material Of Cutting | Cr12Mov quenching 58-62℃ |
| 15 | Sturcture Of The Stations | Wall panel |
| 16 | Tolerance | 3m+-1.5mm |
| 17 | Electric Source |
380V, 50HZ,3 phase According to customer’s require
|
| 18 | Way Of Drive | By chain |
| 19 | Color Of The Machine | Yellow and blue |
Machine components
Decoiler,Punching-machine,Main forming machine,PLC control system,Hydraulic pump station,Post cutting,Electric motor,Output tabl
After sale services
1.Engineer will give free training lessons to labors in buyer’s factory.
2.The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD80 for engineer per day.
3.During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4.We will charge the buyer cost price of spare parts beyond 2 years and provide long-term technical guide.
FAQ
1. Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to produce.
2.Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.
3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.
4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.
5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.
6. May we visit your factory?
Sure,Warmly welcome to our factory at any time.
7.How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.
8.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.
9.Can we arrange shipment?
Yes, sure, we can arrange shipment for our customers and provide door-to-door service.
