25m/Min 0.8mm Metal CE Steel Door Frame Roll Forming Machine

Large Image : 25m/Min 0.8mm Metal CE Steel Door Frame Roll Forming Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	BEST
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD$20000---30000
Delivery Time:	30 work days
Payment Terms:	L/C,T/T
Supply Ability:	20 sets/month

Contact Now

25m/Min 0.8mm Metal CE Steel Door Frame Roll Forming Machine

Description

Type:

Tile Forming Machine

Special:

Hydraulic Cutting

Roller:

No.45 Steel With Heat Treatment

Service:

Whole Life

Highlight:

ce steel door frame roll forming machine

25m/min door frame roll forming machine

0.8mm steel door frame roll forming machine

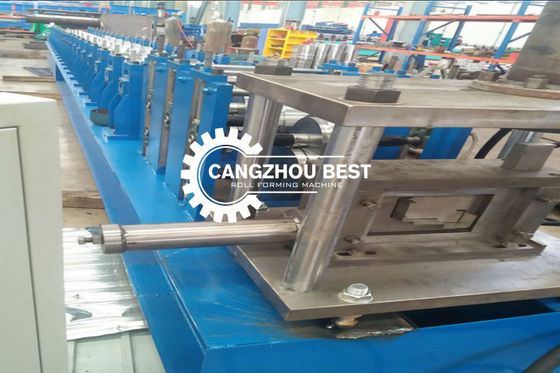

25m/Min 0.8mm Metal CE Steel Door Frame Roll Forming Machine

Professional steel metal window and door frame roll forming machine designed for high-efficiency manufacturing operations.

Technical Specifications

Suitable Material: Colored armor plate with bending intensity of 235MPA
Material Thickness: 0.8-1.5mm
Roller Material: CR12
Production Speed: 25m/min
Control System: PLC
Roller Diameter: 40mm
Main Structure Dimensions: 3800mm * 800mm * 1200mm
Weight: 2 Tons
Main Power: 5.5KW
Servo Motor (Punching): 3.8KW
Blade Material: CR12

System Components

Common Uncoiler: Supports steel coil and uncoils in turnable manner. Manual uncoiling with 5-ton capacity. Suitable for coiled steel with inside diameter 508mm.

Material Feeding Platform: Positions raw material (steel strip) for manufacturing process, ensuring products are neat, parallel, and uniform.

Molding Core: Welded sheet structure with motor reducer drive and chain transmission. Features polished roller surfaces, hard plating, heat treatment, and galvanization. Rolling galvanization thickness: 0.03mm. Rolling material: Forging Steel 45#.

Shearing Mechanism: Hydraulic drive with automatic location for dimension control and product cutting. Includes cutting tools, hydraulic tank, and cutter machine. Cutting blade material: Gcr12.

Hydraulic System: Gear wheel oil pump controlled system. Includes hydraulic tank, oil pump, hydraulic pipes, and electromagnetism valve. Oil pump power: 3kw. Hydraulic oil: 40#.

Computer Control Cabinet: Siemens control system with adjustable target piece length. Features automatic and manual operation modes with converter for error reduction.

Molded Pieces Receiving Table: Welded steel with supported roller transmission. Includes two frames with length of 4m/one or 2m/one of two.

Key Machine Components

Encoder
Encoder Wheel
Limit Switches
Main Motor

Main Technical Parameters

Suitable Material	Color steel sheet, galvanized steel sheet, aluminum sheet
Installation Dimension (LWH)	6.5m * 1.5m * 1.4m
Main Motor Power	4KW with Cycloidal reducer
Hydraulic Station Power	4KW
Hydraulic Oil Pump	CB-E 310
Material Thickness	0.3mm-1.0mm
Principal Axis Diameter	Φ70-90mm
Material Expand Width	1000-1250mm
Electric Tension	380V 3phase 50HZ or as customer requirements
Roller Material	High grade 45# forged steel plated with hard chrome plating
Controlling System	PLC
Processing Speed	8-12m/min (glazed tile is 2-3m/min)
Processing Precision	Within 1.00mm (depending on design)
Cutting Blade Material	Cr12 mould steel with quenched treatment
Drive Type	0.6 inch chain link bearing model 6210
Roller Station	11-20 Rollers
Roller Material	High grade 45# steel; Cr12 quenching
Leak Frame Load-bearing	4.6T

Packaging & Delivery

Packaging Details	Standard and safe export package, suitable for long term sea way shipping
Delivery Time	Within 30 working days after received deposit
