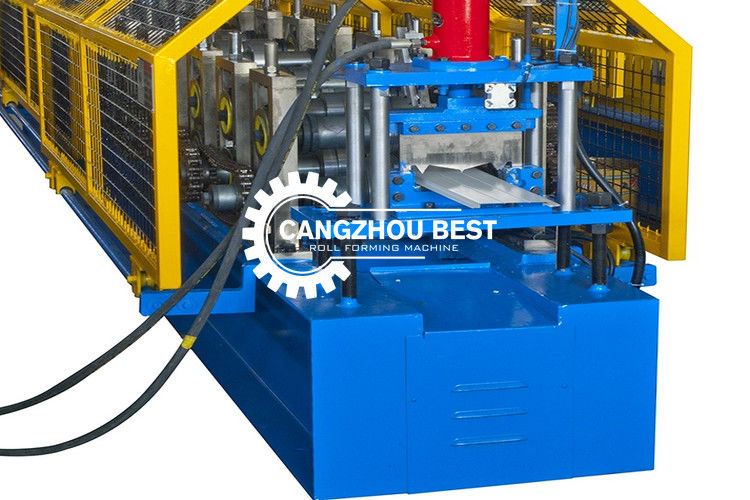

Door frame roll forming machine consists of hydraulic uncoiler, leveler, punching device, roll forming unit, shearing, run-out table, hydraulic station and electric control cabinet. The hydraulic station of the door frame roll forming machine adopts accumulator and PLC controller to generate a fast punching and shearing speed. When this cold roll forming line runs automatically, the maximum speed can reach up to 20 m/min with a stable and reliable performance.
Equipped with various hydraulic punching and notching unit, the machine can cut/ punch all the necessary holes/ notches online. After that, one piece of final product can be easily bended to a complete door or window frame, no need any further processing.
Uncoiler--Feeding--Leveling--Roll-forming--Punching--Hydraulic-cutting-- Output table
Technical Detail
A Sheet Specifications
| 1 | Coil Type | PPGI GI |
| 2 | Width | 450mm |
| 3 | Thickness | 0.8-2mm |
| 4 | Yield stress | Q235 |
| 5 | Effective | 300mm |
B Components Details
| Roller Material | High grade 45# steel. Hard chrome plating, 0.05mm. |
| Main Frame | 350# steel. More stable and no shaking. |
| Middle Plate |
16mm. We use thicker plates to ensure stability of our products. |
| Forming Steps | 15, according to the drawing. |
| Shaft Material | Φ70 mm, high grade 45# steel. |
|
Treating process: tempering- finish turning, high rigidity, hard to deform. |
|
|
Cutting Blade Material |
Cr12, hardness HRC60-62. |
| Treating process: heat treatment- plane abrasion- wire electrode cutting. |
C. Electric Components
| Suitable Power | 380V, 50 Hz, 3 phase or according to your need. |
| Screen | 7 inch touch screen, easy to operate. |
| PLC | Delta DVP 14ES |
|
well-adapted to various conditions, such as moisture, electromagnetic disturbance. |
|
| Frequency Converter |
Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
|
Length Measurement Device |
Omron, made in Japan. |
| It features with high accuracy and stability. |
