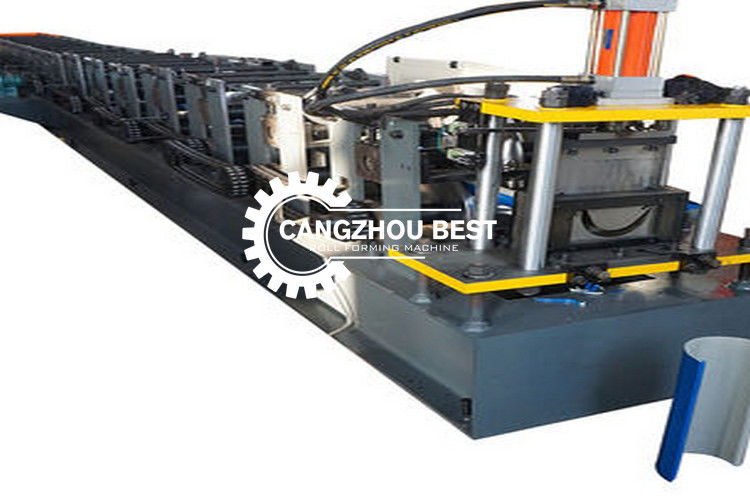

Hydraulic Post Cutting Water Gutter Roll Forming Machine 8-12m/Min

Hydraulic Post Cutting Water Gutter Roll Forming Machine 8-12m/Min
Hydraulic Post Cutting Water Gutter Roll Forming Machine 8-12m/Min
Hydraulic Post Cutting Water Gutter Roll Forming Machine 8-12m/Min Hydraulic Post Cutting Water Gutter Roll Forming Machine 8-12m/Min

Large Image :  Hydraulic Post Cutting Water Gutter Roll Forming Machine 8-12m/Min

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD$8000---10000
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 20 sets/month

Hydraulic Post Cutting Water Gutter Roll Forming Machine 8-12m/Min

Description
Certification: CE/ISO9001 Condition: New
Dimension(l*w*h): 7600mm*1300mm*1450mm Voltage: 380V 50Hz 3phases
Raw Material: Galvanized Sheet
High Light:

water gutter roll forming machine

,

12m/min gutter roll forming machine

,

8m/min gutter roll forming machine

K gutter rain or water gutter roll forming machine : uncoiler_main forming machine_hydraulic cutting system_runout table_control system

It’s a full automatic line. save labor and time.

The gutter is used in roof system to gather rain water, and then let rain go down .

The steel Rain Gutter Roll Forming Machine is used to produce the gutter sheets with the pre-painted steel coils ; and the steel roof tile that is produced by the gutter machine is widely used in village , hotel , exhibition , vocation vallage , family construction and outdoor decoration Specifications of k style gutter roll forming machine

1. Suitbale material: steel, Galvanized steel, pre-painted steel etc.

2. Material thickness: 0.25-0.8mm ( or 0.3-0.8mm, max to 1.5mm, just tell us your requirements)

3. Forming steps: 14-18 steps

4. Shaft: high grade 45#steel, forged, all solid

5. Rollers: GC15, quenched to 58-62 centi grade

6. Middle plate : thickness 16mm

7. Cutting system: Cr12Mov, quenched

8. Motor:5.5Kw+3, Brand: shanghai lichao/ Guomao

9. Control system: Panasonic/Delta PLC , TOUCH SCREEN ETC.

10. Power: 380V/50Hz/3Phase or as required

11. Forming speed: 12-15m/min

12. Driving method: single 1 inch chain.

No. Main Parmaters of Steel & Aluminium Gutter Sheet Manufacturing Machine
1 Suitable Raw Material Color or galvanised steel plate
2 Width of Raw Material 386mm
3 Thickness of Raw Material 0.3-0.8mm
4 Main Machine Dimensions 12*0.8*1 meters
5 Motor Power 7.5KW + 2.2KW
6 Rolling Material 45# steel (plated with chrome on surface)
7 Rollers Station of Rollformer 26 sets
8 Production Line Speed 15-20m/min
9 Diameter of the rollers Φ70 mm
10 Voltage 380V 50Hz 3phases
11 Material of the cutting plate Cr12 mould steel
12 Hydraulic oil 40#
13 Processing precision Within 1mm
14 Control system Mitsubishi PLC with touching screen





Hydraulic Post Cutting Water Gutter Roll Forming Machine 8-12m/Min 0
