Product Details:
|
| Name: | Roof System Corrugated Sheet Roof Panel Curving Crimping Bending Machine | Shaft Materia: | 45# Steel After Treatment |
|---|---|---|---|
| Roller Materia: | 45# Steel After Treatment | Shaft Diameter: | 70mm |
| Pressing Mould Material: | Cr12 Steel After Treatment | Motor Power: | 3kw |
| High Light: | 3kw corrugated sheet machine,3kw corrugated roof sheet machine |
||

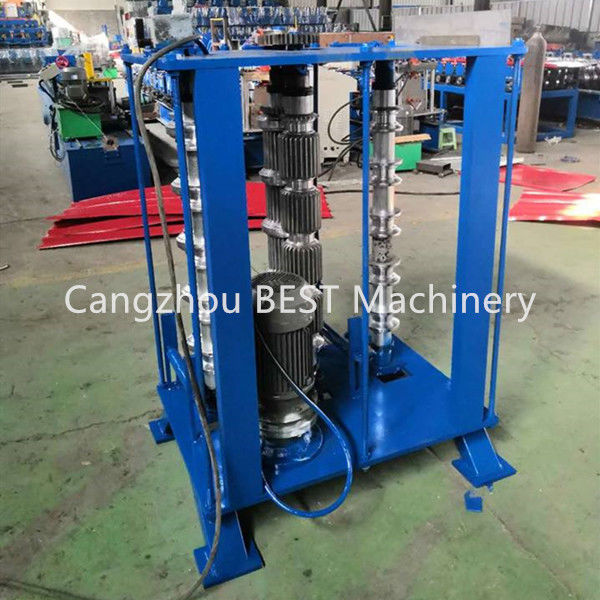

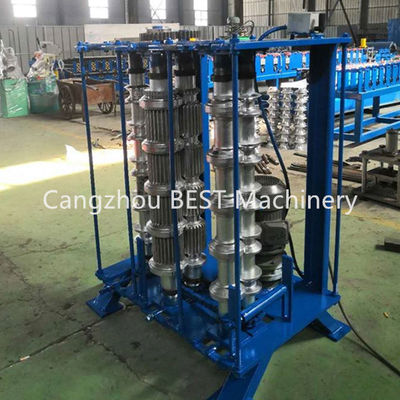

Roof system corrugated sheet roof panel curving crimping bending machine
1. Suitable to process: color steel plate, steel plate, galvanized sheet and so an.
2. Raw material thickness: 0.2-1.0mm
3. Raw material width: according to the roll forming plate profile
4. Motor power: 3 KW
5. Size: 1.2*1.0*1.5m
6. Weight: about 500 kgs
Technical Data:
| 1 | Suitable to process | Color steel |
| 2 | Width of the raw material | 1200 |
| 3 | Output width | 1035 |
| 4 | Rollers | 16 rows |
| 5 | Power | 4kw+4kw |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 1-3m/min |
| 8 | Diameter of the roller | 72mm |
| 9 | Weight | About 4 T |
| 10 | Voltage | 380V 50Hz 3phase |
| 11 | Received table | 4 meters |
| 12 | Raw material of the cutter | Cr12 |
| 13 | Raw material of the roller | Bearing steel |
Hydraulic pump
Installation and training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting,we will send you user manual and CD to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
