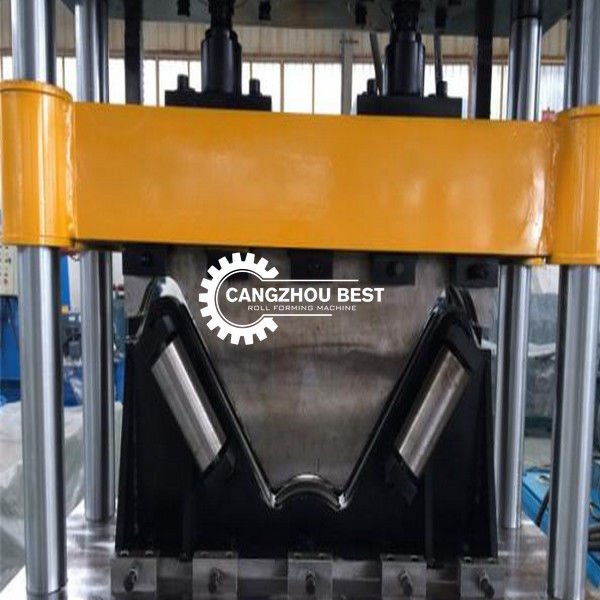

300mm Roof Panel K Span Roll Forming Machine Automatic Roll Forming Lines
Main features of machine
The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding.
It has the ability of strong loading and stable operation when running the machine.
All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming
Main details of roll machine
Item | Description |
Coil width | 600 mm |
Effective width | 300 mm |
Working speed | 12m—15m/min (not contain cutting) |
Roll station | 22 stations |
Material of roller | 45# forge steel, polished and coated with chrome |
Material of main shaft | 45﹟ forge steel |
Diameter roller | Ф76 mm |
Total power | 18.5 kw |
Forming thickness | 0.8mm—1.2mm galvanized steel or metal 195Mpa-345Mpa |
Transmission | by double line 1.0 inch Chains |
Size of machine | about 9000 x 1500 x1200 (L x W x H) |
Weight | about7 000Kgs |
Color | blue (it is also can changed depend on customer request) |
Main details of arching machine
Item | Description |
suited material | 0.8-1.6mm color steel coil |
Thickness | 0.8mm min semi diameter of radian: 16mm |
1.0mm min semi diameter of radian: 12mm | |
1.6mm min semi diameter of radian: 11mm | |
Speed of radian | 10m/min |
Roll station of radian | 2 stations |
Main power | 8.5KW |
Working type | standing, curving |
Control system | adopt transducer, Japan Brand |
Size of machine (mm) | 2000x1800x2000 |
Main details of cutting
Machine adopt hydraulic after cutting
Item | Description |
Cutting after forming | Cut the sheet after roll forming to required length |
Cutting motion |
The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start. |
Material of blade | CR12with heat treatment |
Length measuring | Automatic length measuring |
Tolerance of length | 3m+/- 1.5mm |
Main details of control sysytem
Item | Description |
Voltage, Frequency, Phase | 380 V, 50 Hz, 3Phase (this is can depend on customer request) |
Length measurement | Automatic |
Quantity measurement | Automatic |
Computer used to control length & quantity | |
Machine will automatically cut to length and stop when required quantity is achieved | |
Length inaccuracy can be amended easily | |
Control panel | Button-type switch and touch scree |
Unit of length | millimeter (switched on the control panel) |
Details of other parts
Item | Description | |
Manual de-coiler |
Dimensions | 1700mm*1000mm*800mm |
Width of feeding | 600mm | |
Capability | 5Ton | |
Inter diameter | 550-610mm | |
Mode of expand&fight | Inner expand&fight by manual | |
Way of feeding | Manual | |
Hydraulic station |
Hydraulic station power | 4KW |
Hydraulic pressure | 12Mpa | |
Manual out table |
Jointed by 60mm*40mmtube | |
Size | 1.0m long *0.8m wide *0.6-1m high | |
One out table with two support roller
|
||
Electri seaming machine | One unit main power | 0.75KW |
Composition of machine
Roll forming main machine……………………… 1 unit
Arching machine…………………………………… …1 unit
Manual decoiler………………..…………………… …1 unit
Control panel…………………………………………...1 unit
Hydraulic station…………………………………….…1 unit
Manual out table……………………… ……………….4 unit
Electric Seaming Machine………………………… 1 unit
Spare tools……………………………………………...one box
