Glazed Tile Panel 3kw 0.3mm Techo Tile Roof Sheet Making Machine

Glazed Tile Panel 3kw 0.3mm Techo Tile Roof Sheet Making Machine
Glazed Tile Panel 3kw 0.3mm Techo Tile Roof Sheet Making Machine Glazed Tile Panel 3kw 0.3mm Techo Tile Roof Sheet Making Machine

Large Image :  Glazed Tile Panel 3kw 0.3mm Techo Tile Roof Sheet Making Machine

Product Details:
Place of Origin: China
Brand Name: BEST
Certification: ISQ/CE
Model Number: XY-836
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 6500-13000/SET
Packaging Details: Main machine naked and fastened with wire rope in the container.All electrics devices be packed with plastic film.
Delivery Time: 35 days
Payment Terms: L/C, T/T
Supply Ability: 15 sets/ month

Glazed Tile Panel 3kw 0.3mm Techo Tile Roof Sheet Making Machine

Description
Machine Name: Glazed Tile Panel 3kw 0.3mm Techo Tile Roof Sheet Making Machine Material Of Roller: 45# Steel Polished And Coated With Chrome
Material Of Shaft: 45# Steel Polished And Coated With Chrome Diameter Of Shaft: 70 Mm
Frame Panel Thickness: 20 Mm Bottom Frame: 350 H-section Steel
Motor Power: 3kw Raw Material: 0.3-0.8 Mm
High Light:

glazed roof sheet making machine

,

3kw roof sheet making machine

,

0.3mm roof sheet making machine

Glazed Tile Panel 3kw 0.3mm Techo Tile Roof Sheet Making Machine



Different roof panel forming machines can produce different shapes of steel roof wall sheets according to the client's profile drawings and requirements. The steel roof, wall sheets are new building materials with various thickness and colors. The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.



Working flow:



Decoiler------feeding------roll forming------cut to length-----output table



Technical Parameter:

Suitable material Color steel sheet , galvanized steel sheet
Main motor power 5.5KW with Cycloidal reducer
Hydraulic station power 3KW
Hydraulic oil 36#
Thickness of material 0.3mm~0.8mm.
Diameter of principal axis Φ75mm
Material expand width 1050mm
Voltage Standard 380V 3phase 50HZ (For confirmation)
Roller Material High grade 45# forged steel
Galvanization thickness 0.05mm
Rolling speed 8-12m/min
Length Tolorance 1.00mm
Cutting Die Cr12 mould steel
Transmission Method 1 inch chain link bearing model 6210
Roller Stations 18 Steps



Main technical parameter:



1. DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs





2. ROLL FORMING MACHINE
(1) Material Thickness: 0.2-0.8mm PPGI and GI

(2) NO. of roller Stations: 16groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

(5) Diameter of shaft: 70mm

(6) Frame panel thickness: 20mm

(7) Bottom frame: 350 H-section steel
(8) Motor Power: 3kw

(9)Driven type: 1"Chain
(10)Speed:8-12m/min



3. CUT-OFF DEVICE

(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC55 – 60°
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kW





4. PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron

(4)Length Error: ±2mm

(5)Voltage: 380v/50HZ, 3Phase

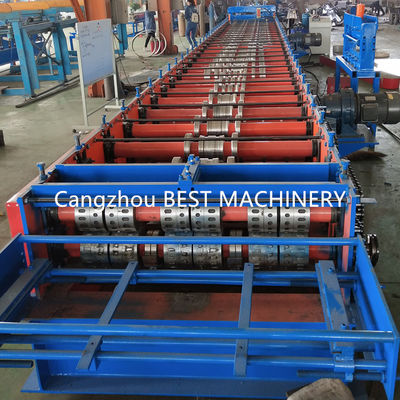

Glazed Tile Panel 3kw 0.3mm Techo Tile Roof Sheet Making Machine 0

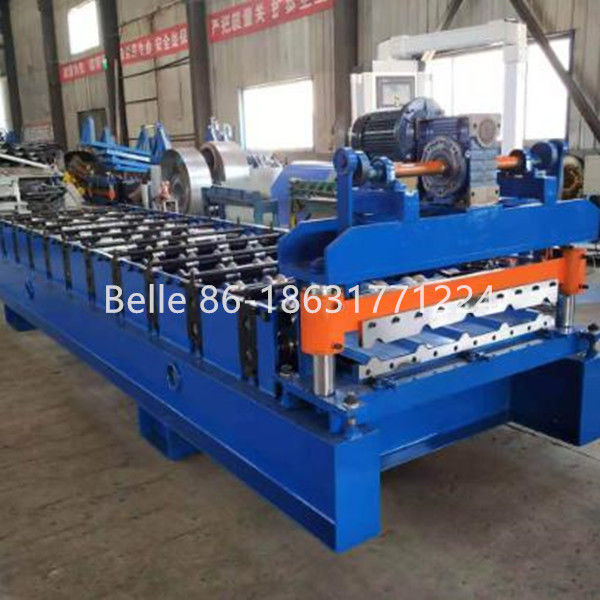

Glazed Tile Panel 3kw 0.3mm Techo Tile Roof Sheet Making Machine 1



Working conditions
1.working size 22m x 2m x 4m
2.Power supply 6kw
3.Frequency 50-60HZ
4.Wires/cables 4-6mm²(length according to workshop)
5. Labor cost 2 workers
6. Tools Spanners and screwdriver
7.Lift device 3-5t forklift or crane





Installation and Training:

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.
