Automatic Electrical Slot Wires Box PLC Cable Tray Making Machine

Automatic Electrical Slot Wires Box PLC Cable Tray Making Machine
Automatic Electrical Slot Wires Box PLC Cable Tray Making Machine

Large Image :  Automatic Electrical Slot Wires Box PLC Cable Tray Making Machine

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-900
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD14500-66500/set
Packaging Details: 40GP/20GP container
Delivery Time: 5-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

Automatic Electrical Slot Wires Box PLC Cable Tray Making Machine

Description
Name: Automatic Electrical Slot Wires Box Cable Tray Machine High Speed C Style Condition: New
Cutting Type: Non-stop Cutting PLC Brand: Delta
Voltage: 380V Or As Customize Production Capacity:: 8-15m/min
Cutting Blade: Cr12 Hydraulic Oil: 46#
Shaft Diameter: 80mm Decolier: Automatic
High Light:

PLC cable tray making machine

,

PLC cable tray machine

,

15m/min cable tray making machine



Automatic Electrical Slot Wires Box Cable Tray Machine High Speed C Style



1. What is the Application of cable tray machine?

Product Application

Cable ladder roll forming machine is commonly used for cable management in commercial and industrial construction. This intelligent roll former could produce different types of cable trays like: Solid bottom cable tray, Trough cable tray, Channel cable tray, Perforated cable tray, Non perforated cable tray and Trunking cable tray etc. with different raw materials like: hot-dip galvanized steel, pre-galvanized steel, hot-rolled and cold-rolled steel, stainless steel and aluminum. Thickness range of material is 0.6mm-1.2mm or 1-2mm. You could set up 10 different lengths for cable tray.

Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution



2. Parameters:

NO.
Name
QTY
Remark
1
5T hydraulic decoiler
1 set
1)Max 5T
2)Max coil:1000mm
3)Hydraulic inner expansion and motorized decoiling
2
Guiding,feeding Leveling
1 set
1)2 pinch rolls and 7 rolls leveling
2)Rolls material:40Cr
3)Leveling speed:max 20m/min
3
Servo-feeder system

1)Feeding speed:max 20m/min
2)Motor:1.8kw plus reducer
4
250T Punching press
1 set
1)Motor:15KW
2)Slide stroke:max 60 times /min
5
100-600mm Width holes punching&cutting mould

1 set
1)Mould material Cr12Mov
2)Combination mould to punch from 100mm to 600mm
3)Qty: 1 set
4)The punching heads will be controlled by air cylinders to punch rectangular holes and oval-shaped holes according to actual
production size.
6
Roll forming Machine

1)Cantilever type welded structure
2) 14 forming stations plus 4 vertical rolls
3)15KW motor made in China
4) Automatic size adjustment controlled by PLC
5) 1.2inch chain drive
6) Rolling speed:max 15m/min
7
Hydraulic post-cutting system

1 set
1) We adopt hydraulic post mould cutting
2) Cutting power:7.5kw
3) A set of cutting blade to cut from 100mm to 600mm
8
Run-out table
2pcs
Steel frame with Rollers
9
Electric panel
1set
PLC control system made in Japan
10
Hydraulic system
1 set
Solenoid is from chinese famous brand



3. Specifications:

Raw material
material spec colored steel sheet, galvanized steel sheet, aluminum sheet
thickness of coil sheet 0.8-1.5 mm
Side rail height 50-60mm
length Max3000mm
Width 50-500mm
Production capacity 8-15m/min
Machine details
roller material high grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material high grade NO. 45 carbon wrought steel
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 80mm or as your requirement
main frame

350 H steel

forming steps

24rows

hydraulic station power

15 KW

hydraulic pressure 10-12MPa
controlling system famous PLC computer control
material of cutting table Cr 12 mould steel with quenched treatment
hydraulic oil 40# hydraulic oil

After sale-services

Delivery time

30 workdays after receiving the deposit

Payments 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment





4. Equipment overview:

1. Double cantilever gear drives, the producing width of machine is adjust continually, it is possible to change the width and height.
2. Rolling stations is 24 steps ,the main machine consists of AC motor,reducer,high precision liner rail, transmission box on left and right, horizontal adjustment system and rolling moulds. The machine base and transmission adopts welding structure , with hardness treatment, the material of roller is 45# steel.
3. The roll forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check. The structure of the rollers is combined, so the line speed difference and resisting force of roll forming is small. The sheet is easy to feed. All these assure the accuracy and stable of the roll forming.



5. What we have?

Our machine

Influence of the machine

Main forming

machine body

High strength H300 or H350 steel.

machine through milling machine after

welding

Sturdy and durable,

ensure the plate standard

Material of the

roller

GCr15

Ensure the forming effect of

the panel and the use age will

be longer,the surface of the panel

Material of the

cutting

Cr12 steel with quenched treatment

Cutting is out of shape not easily

and use age will be longer,the panel

size precision

Material of the

active shaft

High grade No.45 forged steel,

Shaft diameter is 80 or 75mm.

Improve the integrated mechanic

feature of the shaft and keep product

standard

Control system

PLC control system,some elements are

imported from Japan and Germany

Machine become more accurate and

more stable



Our service:

Terms of Payment30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.

Delivery: 30 days after receipt of advance payment

Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Round trip tickets and suitable accommodation, also buyer should pay salary 80USD/day.

Warranty: 18 months limited warranty



During warranty: parts are free but buyer pay for the shipping fee.



Packing:

1.One 20ft and one 40ft container for loading one set machine with manual decoiler.

2.The whole wiped anti rust oil ,PLC controller covered by foam film.

3.Spare parts and some small parts packed in plastic tooling box.

4.All components of Heavy Duty Cable Tray Roll Forming Machinefixed by steel wire.



6. Photos:

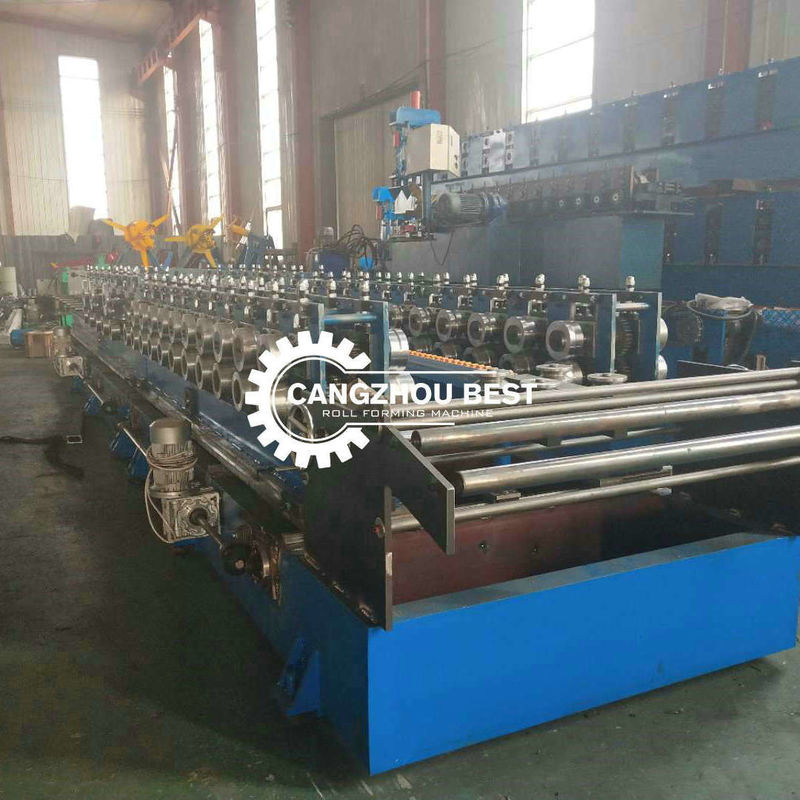

Automatic Electrical Slot Wires Box PLC Cable Tray Making Machine 0
