Product Details:
|
| Name: | 1200mm Hydraulic Roof Curve PV4 Trapezoidal Metal Sheet Roll Forming Machine | Roller Material: | Hydraulic Cutting |
|---|---|---|---|
| The Shaft: | 70mm | Cutting Blade Material: | Cr12 |
| Feature: | High Production Speed | Bottom Frame: | 350H Steel |
| Control System: | PLC | Shet Width: | 1200mm/1220mm |
| Suitable Material: | Q235 Or Similar | Side Panel: | 20mm |
| High Light: | trapezoidal metal sheet roll forming machine,1200mm metal sheet roll forming machine,trapezoidal roof sheet rolling machine |
||
1200mm Hydraulic Roof Curve PV4 Trapezoidal Metal Sheet Roll Forming Machine
1. Machine information:
Our machine(Maquinas para calaminas Wave roof tile corraugated roof sheet roll forming machine) has a long service life, simple operation and easy to use,we provide network after-sales service for life. A strong behind-the-scenes team makes your purchase worry-free.
2. Machine details:
| Name | 1200mm Hydraulic Roof Curve PV4 Trapezoidal Metal Sheet Roll Forming Machine |
| Suitable Material | Colored or galvanized steel coil, HRB60 or equivalent |
| Thickness Range | 0.3-0.8 mm |
| Coil Width Range |
914, 1000, 1220 or 1250 mm. According to your actual drawing. |
| Electric Power |
380V, 50 Hz, 3 phase or according to your need. |
| Dimension | About 7.2*1.3*1.1m(L*W*H), as per the drawing |
| Cutting | Automatically stop and cutting when it comes to the set length. |
| Length of the Sheet |
You can set the length according to your need. It is controlled by PLC length accuracy: ±1mm. |
3. Components roof sheet roll forming machine
| 1 | Manual uncoiler | 1 set |
| 2 | Sheet guiding equipment | 1 set |

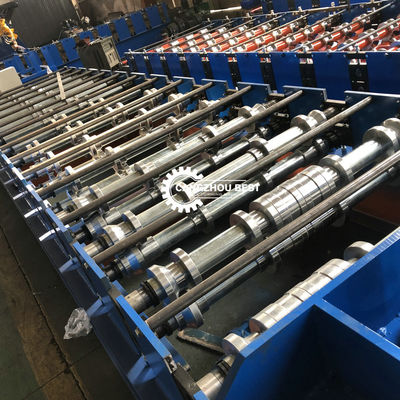

| 3 | Roll forming system | 1 set |
| 4 | Hydraulic station | 1 set |
| 5 | Electric controlling system | 1 set |
| 6 | Support table | 1 pieces |
|
Drawing confirmation After confirming the final profile with the customer, the team of 12 engineers worked out detail workable |
|
Start production
Our company owns 12sets rough lathe machine, 20sets precise lathe machine, and 30sets shearing machine, all machine parts start to manufacture.
|
|
Product Inspection
Our company Own 3sets hard test machine, and 4sets surface thickness Chromium test machine. Roller and shaft: Our Inspect team test 90% wheels and shafts, confirm all parts size precise and performance after processing. Our Inspect team test all roller surface, confirm all part surface paint above 5um.
Mainframe and medium plate: Our Inspect team tests the mainframe and plate cutting precise. |
| Assembling machine 5 workers assemble and welding one machine body frame by three days. |
| Machine painting Putty ensure weld parts surface smoothly, and environment-friendly paint ensures protect worker body and environment. Machine Manual use test Confirm the output sheet tolerance within 2mm. |

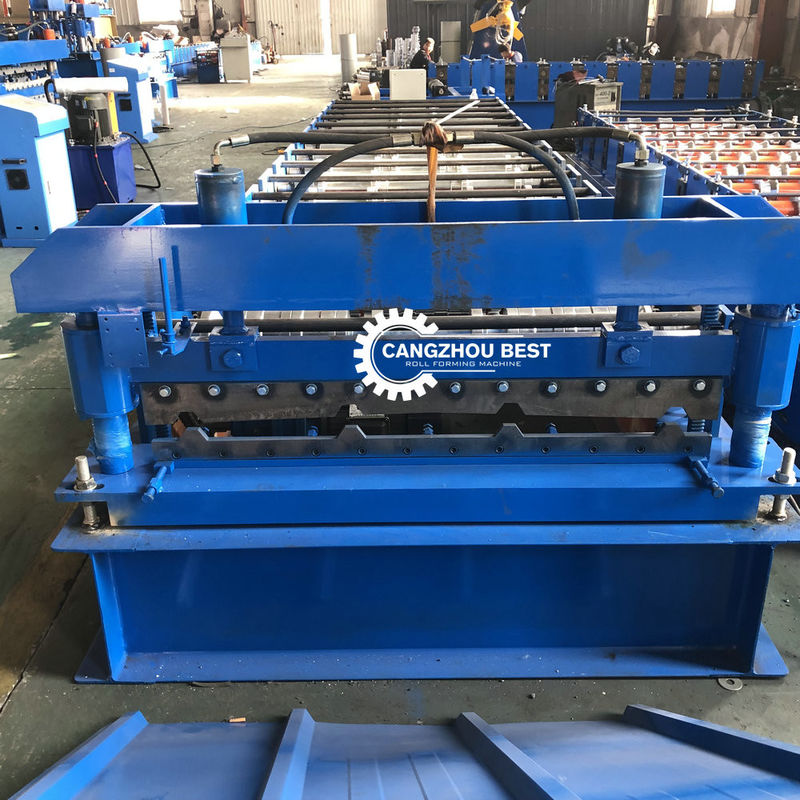

| Cutter production According to the finally manufacture sheet, confirm the blade precise profile, Cr12 MOV steel cutting knife finished by laser cutting. |
| Storage To protect the machine surface clear and without damage, we paint again and package by the film. |
5. Features of Automatic Steel IBR Profile Roof Sheet Roll Forming Machinery:
1) More stable frame for the machine, which we can customized as your prefer one or our standrad one all is ok.
2) Blade customized, if you have any more questions about the blade, or which type you prefer, you can also share with us, always welcomes for customized.
3) Plc customized. Which we also could be customized for you , such as english, spanish, or the Poland, all is ok.
4) The ran out table place, which we can all customized for you. just share with you prefer one is ok.
6. ♠Pre-sale Service
1.Supply item design, process design.
2.Help you to chose the fittest machine.
3.Making the machine according to your requirement.
♠Sale Service
1.Acceptance equipment together with you.
2.Help you to make the method statement and the details of the process.
♠After Service
1.Guarantee for a year
2.Quality problem, we will sent you the accessories.
3.Free repair whole using life(without the freight and accessories charge)
Raw materials
We can produce according to your requirements.
