Product Details:
|
| Name: | U/Z/C Light Steel Keel Purlin C U Profile Stud And Track Forming Machine | Thickness: | 0.6-1.2mm |
|---|---|---|---|
| Certification: | CE; ISO9001:2008 | Tolerance: | +/-0.1mm |
| Production Capacity: | 20-35m/min | Cutter Material: | Cr12Mov Tool Steel |
| Screen Type: | Touching Screen | Driven Type: | Gear |
| Voltage: | 380V.50HZ.3Phase | Cutting System: | Hydraulic |
| High Light: | 1.2mm Stud And Track Roll Forming Machine,1.2mm Profile Roll Forming Machine,CE Stud And Track Roll Forming Machine |
||

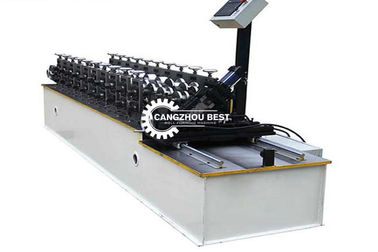

U/Z/C Light Steel Keel Purlin C U Profile Stud And Track Forming Machine
1. Product Description
Products made by this machine is easy to install, used together with different colors can make it appear dye-in-the-wood individual character. Width of 75, 100, 150, 200, and 300 C-shaped keel can be assembled arbitrarily, and they are connected tightly. They can be fixed on the device which is specially used for keels, they can tear down individually.Material for this machine is galvanized steel plate, snowflake plate and colored steel plate
2. What is the technical parameters of the omega roll forming machine?
Equipment parts
1. Steel strip supporting frame
2. Feeding platform
3. Automatic shearing system
4. Hydraulic system
5. Steel strip unfolding system
6. Computer control system (imported computer)
7. High-precision automatic counter
8. Receiving table
3. Techincal description:
1). Automatic inner tight decoiler
|
a. coil inner diameter 450mm-550mm b. maximum width of coiling600mm c. maximum weight of loading 2500kg |
2). Main forming machine
|
a. number of forming steps 11rows b. material of shaft 45# steel . Outer diameter 60mm c. main motor power: 5.5kw d. The speed of forming: 0-50m/min |
3). Hydraulic cutter
|
a. material of blade:Cr12 mould steel with quenched treatment 60-62 b. cutting system :adopt advanced hydraulic drive, after forming automatic cut, no distort, no wasting , high safe factor.(tracking cutting) |
4). The electrical control system
|
a. The Brand of display: DELTA b.The main computer (PLC): DELTA DVP14 |
5). Hydraulic system
|
a. Adopting advanced hydraulic system of Tai Wan b. Power:3kw |
6). The equipments coating , package
|
a. the coating adopt international general shade-guide b.The package :simple waterproof package. |
| Equipment weight | 3 tons |
| The motor power | Motor 5.5Kw pump station 5.5Kw working voltage 380V or customized |
| Production speed | 10--18 m/min |
| The transmission way | 1 inch chain drive |
| rack | Large frame: 350H section steel |
| shaft | 14row axis diameter 70 mm solid shaft |
| The thickness of the plate | 14 mm |
| Set of | Galvanized pipe finishing, electrostatic spraying |
| Wheel material | 45# steel hard chrome plating |
| The molding part | Divided into precision wheel rotation forming, forming effect is good, reduce the friction between wheels and raw materials, debugging convenient, fast. |
| Numerical control system | PLC panel, kel-320 display |
| counter | Domestic photoelectric rotary encoder, a40s6-600-2-12-acp |
| shear | Iron plate welding frame, hydraulic cylinder automatic shear, hydraulic cylinder automatic pressure |
| In the thickness of the plate | 0.3 mm - 1.0 mm |
| Into the plate width | 1000 mm |
| accessories | Two sets of feeding rack, vulnerable parts |
| Warranty period | 12 months |
4. Warranty
18 month, and we will provide technical support for wholelife of the equipment.
5. Installation And Charge
Purchaser pays all charges during period of install to overseas,
(include charges of food,lodging and round trip air tickets ,etc.)
Moreover,pay subsidy 60USD/day until Installation finished.
If problems happened out of warranty and need debugging overseas
Customer should pay for all the charges (including food,lodging and round trip air tickets etc.)
Moreover pay 100USD/day till install finished
6. Please inquiry me, learn more details.
