Product Details:
|
| Name: | Automatic Change Size C U W Dry Wall Profile Channel Stud Roll Forming Machine Former | Condition: | New |
|---|---|---|---|
| Weight: | 2t | Use: | Roof |
| Production Capacity: | 8-12m/min | Place Of Origin: | Hebei,China |
| Power(W): | 3+3kw | Warranty: | 2years |
| Driving System: | Gear Box Or Chain | Roller Material: | GCr15, Hard Chromed |
| High Light: | stud and track roll forming machine,12m/min stud roll forming machine,w stud and track roll forming machine |
||

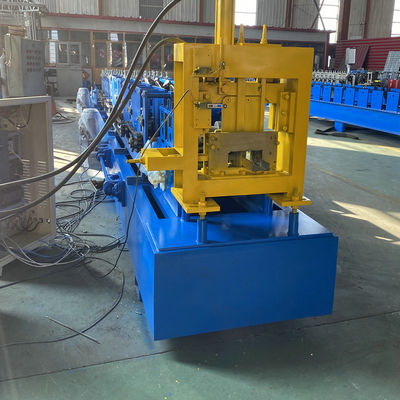

Automatic Change Size C U W Dry Wall Profile Channel Stud Roll Forming Machine Former
1. What is the technical parameters of the omega roll forming machine?
Techincal description:
1).Automatic inner tight decoiler
a.coil inner diameter 450mm-550mm
b. maximum width of coiling600mm
c. maximum weight of loading 2500kg
2). Main forming machine
a. number of forming steps 11rows
b. material of shaft 45# steel . Outer diameter 60mm
c.main motor power: 5.5kw
d. The speed of forming: 0-50m/min
3).Hydraulic cutter
a. material of blade:Cr12 mould steel with quenched treatment 60-62
b. cutting system :adopt advanced hydraulic drive, after forming automatic cut, no distort, no wasting , high safe factor.(tracking cutting)
4).The electrical control system
a. The Brand of display: DELTA
b.The main computer (PLC): DELTA DVP14
5).Hydraulic system
a. Adopting advanced hydraulic system of Tai Wan
b. Power:3kw
2. Working flow:
3. OEM Services
We can design and manufacture the machine according to the customers' requirement. You can send me the profile drawing and we will design the machine to you. provide you the machines not only with best quality, but also best service for you.
Service and Terms
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.
Delivery: 30 days after receipt of advance payment
Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Roundtrip tickets and suitable accommodation, also buyer should pay salary 60USD/day.
Warranty: 12 months limited warranty
During warranty: parts are free but buyer pay for the shipping fee
Advantages of the machine:
1.The design of the machine is convenient to adjust, for it owns reasonable structure, compact shape, high precision and high efficiency.
2.The manufacturing process of the complete machine is in strict accordance with the mechanical standards, tracking and controlling the manufacture of each part.
3.Professional team for technical research and development, providing users with automatic plate processing equipment of high quality and efficiency.
4.The entire line is controlled with PLC, with touch screen of display and operation and high automation.

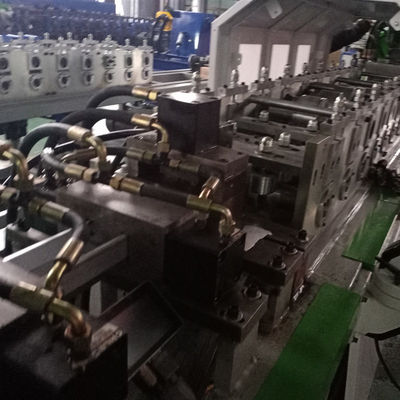

What is the double line c channel steel roll forming machine?
c channel steel roll forming machine is widely used around the world. This galvanized steel c channel forming mahcine have two forming lines, but they have seperated control systems, this kind of double line light gauge keel stud track c channel steel roll forming machine will save the space for the factory. And the products this machine produced is mainly used for the drywall and the ceiling structure. As a basic material, c channel is widely used for many aspects as assistant supporters.
1) Good quality: We have a professional designer and experienced engineer team.
2) Good service: we provide the technical support for whole life of our machines.
3) Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
4) Easy operation:All machine cotrolling by PLC computer controlling systerm.
5) Elegant apperance:Protect the machine from rust and the painted colour can be customized
6) Reasonable price:We offer the best price in our industry.
5. Please inquiry me, learn more details.
