Product Details:
|
| Product Name: | Metal Beam (W-Beam), Midwest Guardrail System (MGS), Thrie Beam Barrier Making Machine | Machine Speed: | 10m/min |
|---|---|---|---|
| Machine Dimention: | 7.5mx1.8mx1.4m | Machine Power: | 11kw+5.5kw |
| Driven System: | Chain Or Gear Box | Control System: | PLC |
| Cutting Type: | Hydraulic | Warranty: | 2 Years |
| High Light: | 10m/min w beam roll forming machine,10m/min beam roll forming machine,PLC w beam roll forming machine |
||

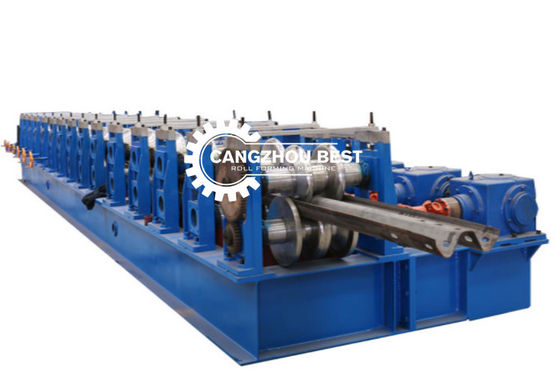

Metal Beam (W-Beam), Midwest Guardrail System (MGS), Thrie Beam Barrier making Machine
The C Z Purlin Roll Forming Machine can produce C and Z profiles. Produce the C and Z purlin by exchange one side of the roller up and down. Greatly improved the production efficiency and save the working space. The driving way is chain drive. Our C / Z channel purlin roll forming machine can be profile custom, and are lower cost, high efficiency, reliable working ,low energy consumption. We can do any type of equipment according to customer requirements.
Working flow
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table
Machine Component
| De-coiler | 1 set |
| Leveling device | 1 set |
| Forming machine | 1 set |
| punching device | 1 set |
| Cutting device | 1 set |
| PLC control box | 1 set |
| Hydraulic pump station | 1 set |
| Production support table | 1 set |
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Photo | ||
| Width | 500mm | 600mm |
| Capacity | 5000kgs | 5000kgs-8000kgs |
| Inner diameter | 450-550mm | 450-550mm |
| Outter dimater | 1500mm | 1800mm |
roll forming machine
| Item | Parameter detail | ||||||
| Processing Material | GI and Black Coils | ||||||
| Material thickness | 1-3mm(standard), 3-5mm(customized) | ||||||
| Machine frame | 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision | ||||||
| Machine siding panel |
|
||||||
| Forming stations | 13-18 stations (according to the material thickness) | ||||||
| Machine rollers |
high grade Gcr15 forged steel(bearing material), Hard quenching and hard chroming with thickness 0.05mm |
||||||
| Machine Shaft | φ80-90mm high garde No.45 steel after treatment, | ||||||
| Machine spacers | CNC lathing in high-precision and wire-electrode cutting | ||||||
| Machine bearings | China Haerbin bearing or SKF international bearing(option) | ||||||
| Driving system | 2 inch chain or gear box(option) | ||||||
| Machine power | 7.5kw-22kw(according to the size and thickness) | ||||||
| Machine working speed | without punching:8-12m/min or 10-30m/min(option) | ||||||
| Machine testing method | After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm |
Punching device
| Item | Parameter detail |
| Frame processing | the whole levelling surface is made by drilling machine |
| Mould material | Cr12mov |
| Mould processing | wire eletrode-cutting for the mould shape, it will save pressure |
| Hole size | According to your request |
| Hole number | According to your request |
| Pressure | 20Mpa |
Cutting device
| Type |
Mould cutting |
| Blade material | Cr12mov quenching and grinding |
| Blade processing | wire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology |
| Working | Hydraulic type |
Stacker
| Type |
Manual |
Auto(option) |
| Length | 2pieces, length is adjustable | according to your requirement |
PLC
| Main item | Parameter detail |
| PLC |
Delta(standard) or according to your request |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
Hydraulic pump
| Main Item | Parameter detail |
| Motor |
3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system |
Cooling fan |

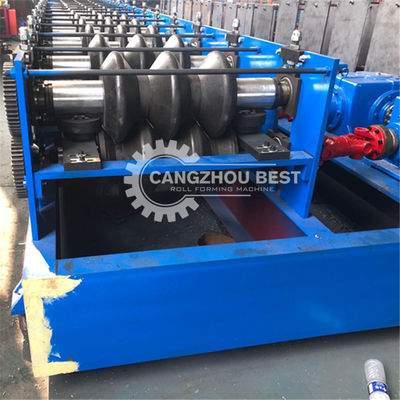

Machine Photo
Features of 2021 Hot Sale Road Used Hydraulic Galvanized Steel High Way Guardrail Roll Forming Machine :
1) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. it has the ability of strong loading and stable operation when running the machine.
2) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
3) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
4) It is very easy to install the equipment and suitable for producing in the factory.
5) The machine has features of low noise and high efficiency.
