Powerful PPGI Double Layer Profile Roof Tile Roll Forming Machine

Powerful PPGI Double Layer Profile Roof Tile Roll Forming Machine
Powerful PPGI Double Layer Profile Roof Tile Roll Forming Machine
Powerful PPGI Double Layer Profile Roof Tile Roll Forming Machine Powerful PPGI Double Layer Profile Roof Tile Roll Forming Machine Powerful PPGI Double Layer Profile Roof Tile Roll Forming Machine Powerful PPGI Double Layer Profile Roof Tile Roll Forming Machine

Large Image :  Powerful PPGI Double Layer Profile Roof Tile Roll Forming Machine

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY-1044
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

Powerful PPGI Double Layer Profile Roof Tile Roll Forming Machine

Description
Product Name: Powerful Double Layer Metal Roofing Tile Roll Forming Machine Profile Material: PPGI
Marketing Type: New Product 2020 Driven System: Chain
Control System: PLC Cutting Type: Hydraulic
Sidewall Thickness: 20mm Usage: Roof Building
Decoiler: 5T Manual Decoiler Rolling Thickness: 0.3-0.8mm
High Light:

profile roof tile roll forming machine

,

double layer profile roof tiles machine

,

PPGI roof tile roll forming machine



Powerful Double Layer Metal Roofing Tile Roll Forming Machine Profile





As a professional manufacturer,we can make Double layer Galvanized Corrugated Metal Roofing Sheets Forming Machine by customer`s demand, with a profile drawing and thickness, we can design the machine quickly.Until now,we can do many kinds of roof panel machine,such as trapezoidal sheet making machine, corrugated sheet making machine, glazed tile making machine, Double Layer Roll Forming Machine and so on.

1 Double layers color steel sheet roll forming machine can produce two designs,this machine process galvanized steel and color steel sheet,thickness is 0.3-0.7mm.
2 This machine the best advantage is save space.But three layers can not working in the same time.PLC can choose working by up layer,or down layer.
3 We can make Double Layers Color Steel Sheet Roll Forming Machine as your request, our engineer will make drawings before you order.If you have drawing,please offer it to us,our engineer will confirm it and will give advise.
4 We are professional in roll forming machines,we have more than 20 years in this area.



Machine components

1 Manual uncoiler 1 set
2 Sheet guiding equipment 1 set
3 Roll forming system 1 set
4 Pressing device 1 set
5 Post-cutting equipment 1 set
6 Hydraulic station 1 set
7 Electric controlling system 1 set
8 Support table 2 pieces




Machine Parameters:

Technical Parameters (some depend on the final design)
1 Style Bolivia glazed roof tile double layer roof sheet roll forming machine
2 Machine dimension 7500*1600*1650mm
3 Total wight 5800kgs
4 Forming steps Up layer :11rows Down layer :13rows
5 Forming speed Glazed design :1.5-3.0m/min Wave design:10-15m/min
6 Hydraulic station power(Kw) 4kw
7 Diameter of shaft 70mm
8 Hydraulic pressure 18-20 MPa
9 Electric condition(Voltage ) 380V/3Phase/ 50HZ (or based on customer's need ,for example :220V 440V 415V or 2Phase 60HZ )
10 Suitable to process Color steel plate(G330 or G350 ) galvanized steel coil
11 Manual uncoiler max capacity 5000kgs
12 Control system PLC
13 Raw material thickness 0.3-0.8mm
14 Effective width 800mm and 836mm
15 Material width 1000mm and 1000mm
16 Main motor 5.5Kw
17 Material of the cutting blade Cr 12 quenched treatment 58℃-62℃
18

Main Shaft Material



45# steel with finish turning
19 Roller materials 45# Forging Steel with Chromium Plate
20 Machine Under Frame 400 H beams and side wall 20mm



Our Roll Forming Machine’s advantages



1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong



2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.



3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.



4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.



5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.



6. powerful driving system: big inch train,or gear box driving system.



6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.



Terms:

Delivery:in stock
Package:export standard package for container
Payment:TT (30% by TT in advance,70% by TT after you inspect machine we need)
Delivery date:within 30 working days after receiving deposit
Products Warranty:18months,and we will provide the technical support for whole life of the equipment.



Pre-sale Service

1) Send you invitation letter, If you wanna visit our factory and check the machines.

2) Good Quality Manufacturer competitive price Quick Response Reliable Service for you.



Selling Service

1) Short delivery time after deposit 30-40 days.

2) Email you the production schedule and make prompt delivery for you.

3) We will count the cheapest shipping cost and fastest forwarder for you and send documents promptly.

4) Always be here for your service 12 hours per day.



After-sale Service

1) We welcome all feedback about our products and prices and services from our customers.

2) Any questions, please contact with us freely by E-mail or Telephone.



Packing and delivery:

- 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.

- 2.This producing line is maintained free of charge for 18 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.

- 3.All the parts in the roll forming machine is free to maintain all the life,if in 18 months our company bear the cost for exchanged the broken part like the new parts cost and express cost,if more than 18 month,we also free to maintain the broken parts but for send the new parts,the buyer need bear the express cost.

- 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.



Photos

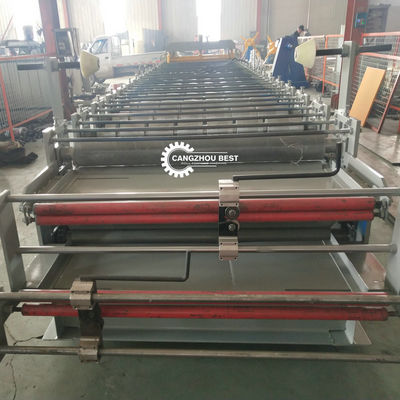

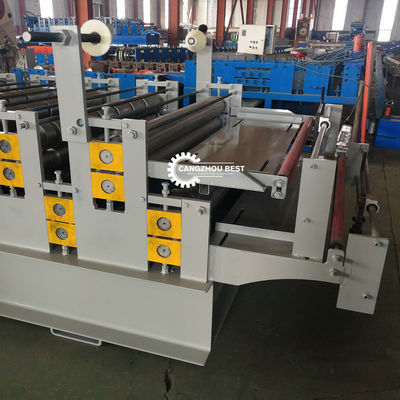

Powerful PPGI Double Layer Profile Roof Tile Roll Forming Machine 0

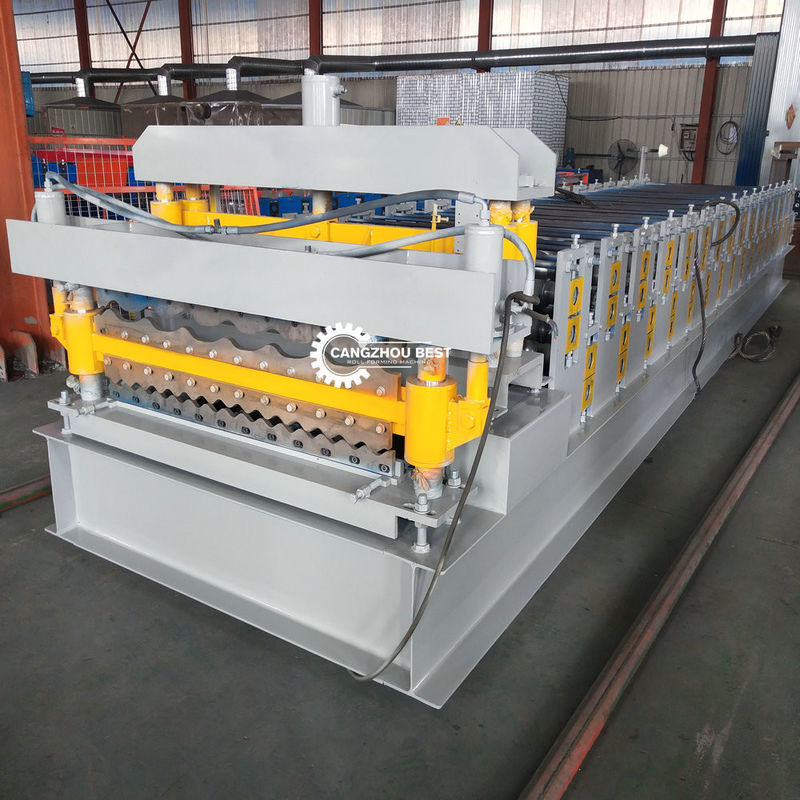

Powerful PPGI Double Layer Profile Roof Tile Roll Forming Machine 1
