Product Details:
|
| Name: | Color Steel Red&Grey Corrugated Profile Roof Sheet Roll Forming Machine Automatic Cutting | Material: | PPGI/GI |
|---|---|---|---|
| Color: | As Your Require | Shaft Material: | 45# Steel |
| Conreol System: | PLC | Warranty: | 2 Year |
| High Light: | PPGI corrugated sheet rolling machine,PPGI corrugated sheet roll forming machine,0.3mm corrugated sheet roll forming machine |
||

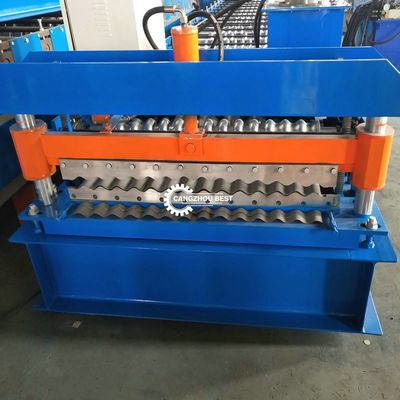

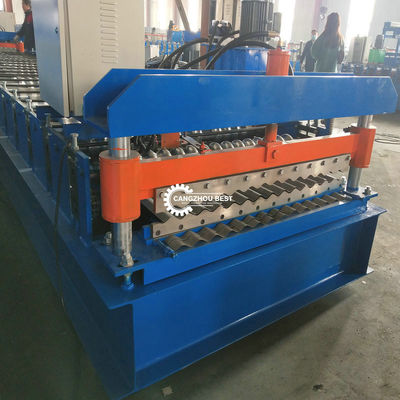

Color Steel Red&Grey Corrugated Profile Roof Sheet Roll Forming Machine Automatic Cutting
Parameter
| material | colored steel sheet, galvanized steel sheet, aluminum sheet |
| thickness of coil sheet | 0.3-0.8 mm |
| material expand width | 1000mm |
| Efficiency width | 836mm/858 |
| Machine details | |

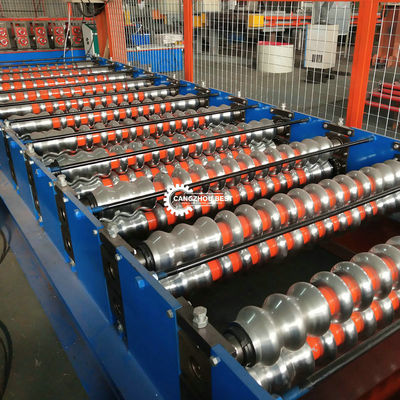

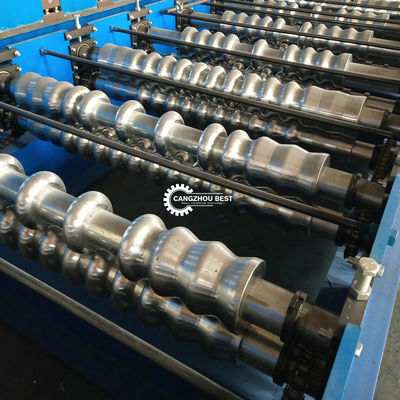

| roller material | high grade NO. 45 forged steel with 0.05mm hard chrome plating |
| shaft material | high grade NO. 45 carbon wrought steel |
| cutting blade | Cr12 mould steel with quenched treatment |
| diameter of shaft | 70mm or as your requirement |
| main frame | 300 H steel |
| forming steps |
up layer:14rows down layer:16 stations |
| productivity | 20-25m/min |
| hydraulic station power | 3.7 KW |
| hydraulic pressure | 10-12MPa |
| appearance size | 8700mm*1500mm*1500mm |
| hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirement |
| Cut Mode | Hydraulic forming after cutting off |
| Cutter materia | Cr12 Heat Treatment |
| Electronic control system | PLC, Touch Screen, Encoding counter |
| Color | Blue, green or yellow or as your requirement |
| Rolling material | 45# steel,roller surfaces polishing, hard plating |
Components
| No. | Name | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | Set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | post cut | set | 1 |
| 6 | electric motor | set | 1 |
| 7 | output table | set | 1 |
Main Features
1.This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2.Rollforming process:uncoiler, rollforming, forming step effect, cut to length.
3.Fully Automatic Control System with PLC.
4.Easy operation: Key in the length and quantity on the control panel.
5.two years warranty for free, and beyond two years if any part broken, tell us and pay us we delievery any part u need. And support technical skills for machine for whole life.
6.we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
7.One roll forming machine only can produce one profile. and we also can produce double or three layer roll forming machine
Our servie
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine,and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2.After Sevice
3.a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
