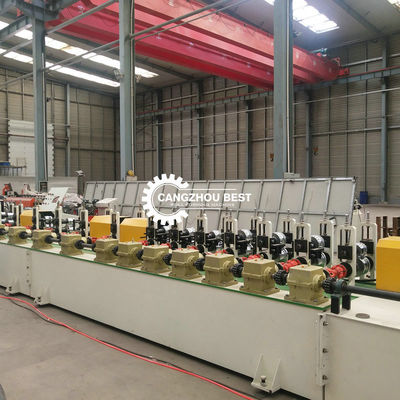

Pu Injection Foam PPGI Rolling Shutter Door Slats Roll Forming Machine

Certification
China Cangzhou Best Machinery Co., Ltd certification
I'm Online Chat Now

Pu Injection Foam PPGI Rolling Shutter Door Slats Roll Forming Machine

Pu Injection Foam PPGI Rolling Shutter Door Slats Roll Forming Machine
Pu Injection Foam PPGI Rolling Shutter Door Slats Roll Forming Machine Pu Injection Foam PPGI Rolling Shutter Door Slats Roll Forming Machine Pu Injection Foam PPGI Rolling Shutter Door Slats Roll Forming Machine Pu Injection Foam PPGI Rolling Shutter Door Slats Roll Forming Machine

Large Image :  Pu Injection Foam PPGI Rolling Shutter Door Slats Roll Forming Machine

Product Details:
Place of Origin: China, Hebei
Brand Name: CHBEST
Certification: CE/ISO
Model Number: CHBEST-55
Payment & Shipping Terms:
Minimum Order Quantity: 1sets
Price: USD+7500+SET
Packaging Details: Standard
Delivery Time: 35days
Payment Terms: L/C, T/T, Western Union, MoneyGram

Pu Injection Foam PPGI Rolling Shutter Door Slats Roll Forming Machine

Description
Name: PU Injection Foam Roller Door Shutter Steel Profile Roll Forming Machine Color: As Your Require
Voltage: 380V/50HZ/3PHASE Material: PPGI/GI
Frame Panel Thickness: 14mm Warranty: 2 Year
High Light:

PPGI shutter roll forming machine

,

14mm shutter roll forming machine

,

rolling shutter door slats roll forming machine

                         PU Injection Foam Roller Door Shutter Steel Profile Roll Forming Machine ​



Technical parameters

Technical parameters:
1 Name of commodity & specification slat machine
2 Main motor power 5.5kw, 3 phase
3 Hydraulic motor power 3kw
4 Hydraulic Pressure 10-12MPa
5 Voltage 380V /3phase/ 50 HZ (or as your requirement)
6 Control System PLC Delta Inverter
7 Main Frame 300mm H-Beam
8 Backboard Thickness 14mm
9 Chain Size 20mm
10 Feeding Material color steel coils
11 Feeding Thickness 0.2-0.4mm
12 Productivity 6m/min
13 Roll Station 38rows
14 Roller Diameter 70mm
15 Roller material 45# steel
16 Cutter material Cr12 , quenched
17 Cr-Plating Size 0.05mm
18 Overall Size 11000×800×1000mm
19 Total Weight 8T
20 Components Manual Uncoiler -------------------1 set
Guiding Platform------------------1 set
Coil Strip Leveler------------------1 set
Main Machine of Roll Forming------1 set
Electric-Motor---------------------1 set
Cutting Device--------------------1 set
Hydraulic Station------------------1 set
PLC Control-----------------------1 set
Supporter Table-------------------1 set
21 Workflow Manual decoiling----feeding and guiding----roll forming----cut to length----run out table
22 Package nude in the container
23 Minimum order quantity 1 set
24 Payment terms

T/T(30% T/T pay in advance, the remaining

70% pay before ship)

25 Delivery time 60 working days later after receiving the deposit
All technical parameters can be changed, according to user's need.

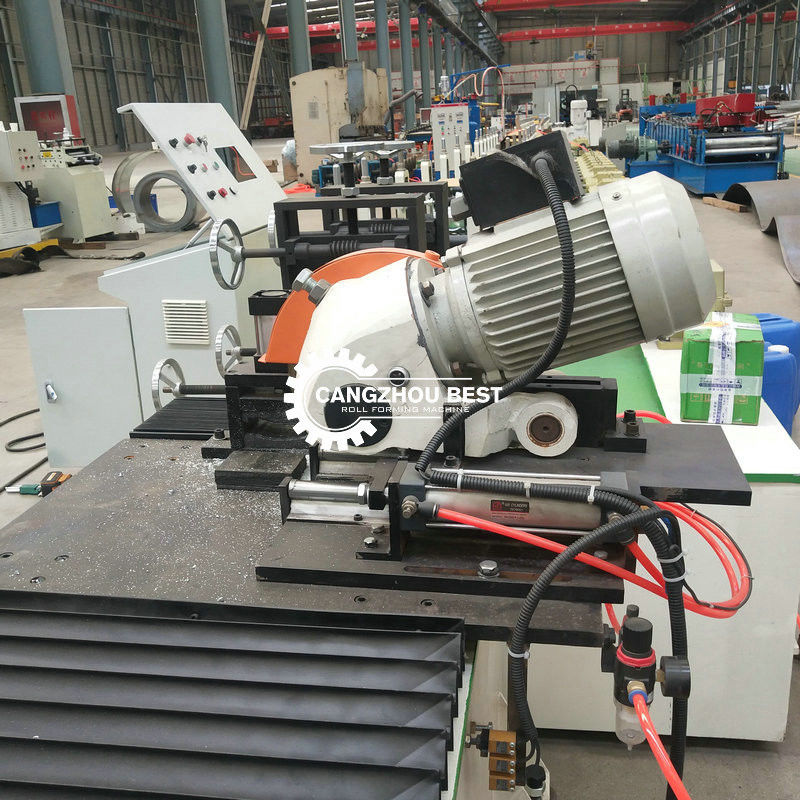

Put the steel coil on the un-coiler—→feeding—→Roll-forming Machine—→PU foam—→Punch hole after roll forming----Flying saw cutting—→output table

Machine Parts

Name:Decoiler
Usage: It is used to support the steel coil and uncoil it in a turntable way.
Inner diameter:350-450mm
Outer diameter:450mm
Coil width:300mm
Capacity:1.5T
Main Features

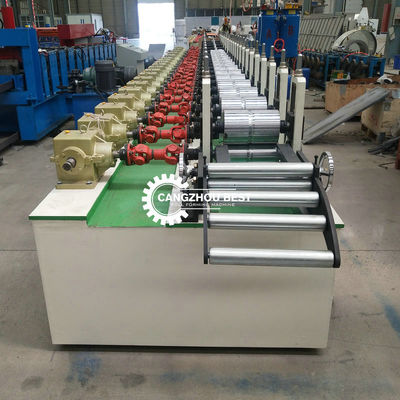

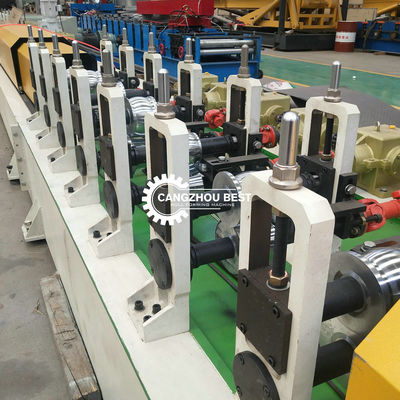

Name: Main Roll Forming Part
Forming steps: 12 steps
Shaft diameter: 50mm
Roller material: GB Cr12Mov
Shaft material: GB 45# forged steel
Voltage: 380v-50hz-3phrase.

Name: Control System
Usage: Automatic length and quantity measurement.
Screen: touch screen
Frequency:Delta
PLC control
PLC:Delta



Warranty
1.One year,and we will provide the technical support for the whole life.
2.Training:The buyer should charge of visa,return ticket,food and accommodation overseas and USD100/person/day for salary.
3.Need one technician.
4.Training time:one week(contains the time of installation and adjustment)
