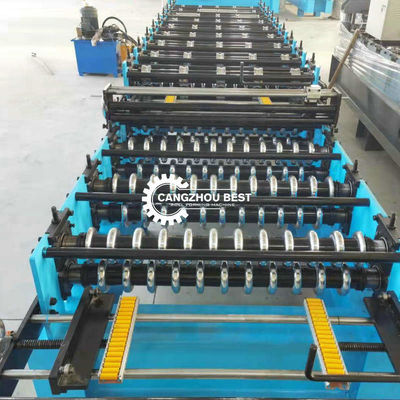

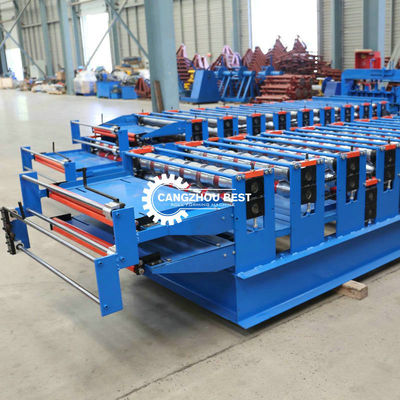

Large Image :  5v and Corrugated Roof Double Layer Deep Rib 0.3mm Steel Profile Roll Forming Machine

Product Details:
Place of Origin: HEBEI CHAIN
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: CB800
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD12500
Packaging Details: naked
Delivery Time: 35days
Supply Ability: 15sets/month

5v and Corrugated Roof Double Layer Deep Rib 0.3mm Steel Profile Roll Forming Machine

Description
Name: Color Coated Matt Grey Steel Profile Bricktile/Q Tile Roll Forming Machine Control System: PLC
Machine Speed: 8-12m/min Shaft Diameter: 70mm
Shaft Material: 45#steel Material Thickness: 0.3-0.8mm
High Light:

deep rib profile roll forming machine

,

0.3mm profile roll forming machine

,

0.3mm double layer roll forming machine

Color Coated Matt Grey Steel Double Layer Deep Rib Profile Roof Sheet Roll Forming Machine

Specifications

1.

Power

requirement



Type 380v/3ph/60hz
    Main Motor power 4kw
    Cutter power 4kw
2. Forming speed(m/min) 8-15 Not include the time of cutting
3. Forming stations 10/11 Depend on actual design
4. Thickness of structure 14mm
5. Forming shaft diameter(mm) 70
6. Chains 1 inch
7. Sleeve galvanized pipe with color coating
8. Type of cutting Roll formed and length-set cutting
9. Control system PLC Panasonic Inverter Schneider
10. Install dimension(depend on the final design) 5.8m×1.5m×1.2m Without panel length
11. Total weight (Approx) 5T Depend on final design
12. Screen Text screen /touch screen




Decoiler

1.Features:
Mandrel and basement are the two components of the decoiler, the mandrel is shrinking expanding by mechanical device manually, after fix coil to mandrel, then put back the coil with mandrel together to basement.
2.Power: None
3. Power of the open and closure of segments: Mechanical
4.Power of rotation of segment: Pull by forming system
5.Number of segment: 4
6.Range of segment expansion: 480 ~ 520mm
7.Height of center of the mandrel: 0.65m
8.Feeding speed with push: 0~30m/min
9.Approximate Size: 1.5 m * 1.1m *1.2 m
10.Speed control: By mechanical brake
11.Methods of operation: Manual.



Material Feeder

1.Features: Ensure smooth& precise material feed.
2.Components: steel plate platform, two pitching rollers, position stopping block.
3. The coil is guided in the correct position and passed to the roll forming equipment.



Main spec of roll forming equipment

1.Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and coated with hard chrome
2.Shaft:70mm manufactured with 45# high grade steel by CNC machine tools
3. Supporting frame: steel wallboard to guide the forming station bearing basement
4.The finished products will change if using different material and thickness
5.Driving of machine:by one inch chain



Hydraulic cutting

1.Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
2.Power supply: hydraulic station
3.Frame: welding steel frame
4.Stroke switch: non-contact photoelectric switch
5.Cutting before forming: cut the sheet after roll forming to required length
6.Length measuring: automatic length measuring



Control system:

The whole line is controlled by PLC and touch screen. The PLC system is with high-speed communication module, it is easy for operation. The technical data and system parameter can be set by touch screen, and it is with warning function to control the work of whole line.
1.Control the cutting length automatically
2.Automatic Length measurement and quantity counting
(precision 3m+/-3mm)
3.Voltage:380V, 3 Phase 60Hz (As per buyer`s request)

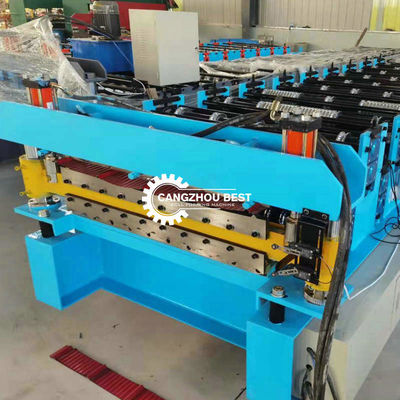

5v and Corrugated Roof Double Layer Deep Rib 0.3mm Steel Profile Roll Forming Machine 0

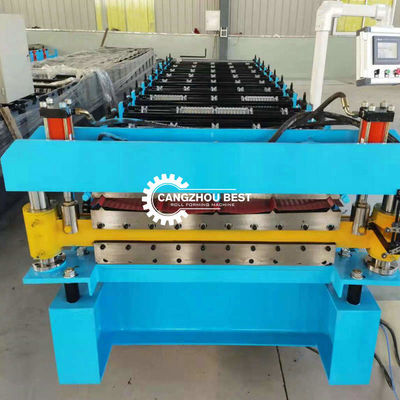

5v and Corrugated Roof Double Layer Deep Rib 0.3mm Steel Profile Roll Forming Machine 1
