Full Automatic High Speed 2mm C Channel Purlin Roll Forming Machine

Description
Name: Full Automatic High Speed 2mm C Channel Purlin Roll Forming Machine Manufacturer Condition: New
Color: As Your Request Customized: Yes
Material: Galvanized Power: 18.5kw
Kind Of Drive: 2 Inch Chain Warranty: 2 Years
Cutting Type: Hydraulic Cutting Blade: Cr12 Steel
High Light:

fully automatic purlin roll forming machine

,

2mm c channel rolling machine

,

2mm purlin roll forming machine

Full Automatic High Speed 2mm C Channel Purlin Roll Forming Machine Manufacturer



Product advantages

We are the first hydraulic drive roll forming machine manufacturer in north of China, and the most authoritative and professional hydraulic drive roll forming machine manufacturer in local. 1The finsihed purlins are standard as the profile drawings 2 The finished purlins are straightness and perpendicularity to standard 3 The finished purlins with stamping and punching precision and punching error within 1mm



1. Processing technique and deployment of used c z purlin roll forming machine

Flow chart : Decoiler-- Roll Forming--PLC System—Hydraulic System –Pressing --Cutting —Output Table



2. Components of line of used c z purlin roll forming machine

No. Name Unit Qty
1 Decoiler set 1
2 Entry Beach set 1
3 Main Machine for roll forming set 1
4 Cutting System set 1
5 punching set 1
6 Output Table set 1
7 Control System(PLC) set 1
8 hydraulic station set 1



3.Decoiler and raw material

Usage:It is used to support the steel coil and uncoil it in a turnable way.

Passive uncoil pulled by roll forming system

Loading capacity 5T
Uncoiling width 1000mm
Inner diameter: 450-550mm

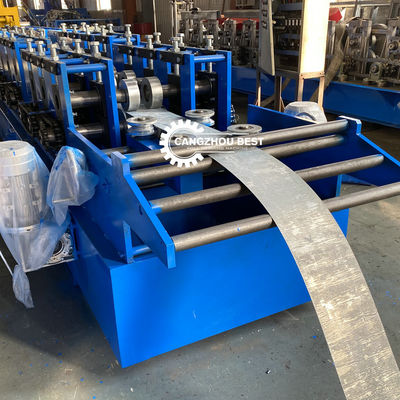

4.Feeding

Usage:Put the raw material(steel plate) through the beach to manufacture and process,4 down and 3 up , it can guarantee that the products are neat, parallel and everything is uniformity.

Material of axis 45#steel
Number 3 up,4 down
Diameter of axis 100mm
Forming round Material bearing steel (GR15), quenching 60-62 °C



Advantage:Automatic length cutting, automatic punching, high degree of automation, quick and easy installation

Length of the main part 6800mm*800mm*1200mm
Weight of main part 7.2 tons
Voltage 380V 50HZ 3Phase
Frame 400 H steel
Drive mode differential gear
Main axle material GR15
Material of shafts 45# steel
Diameter of shafts φ80mm
Number of rollers 12 rollers
Main power 11kw(cycloidal planetary gear speed reducer)
Forming speed 8m-10m/min
Adjustment method Half seams type Looper

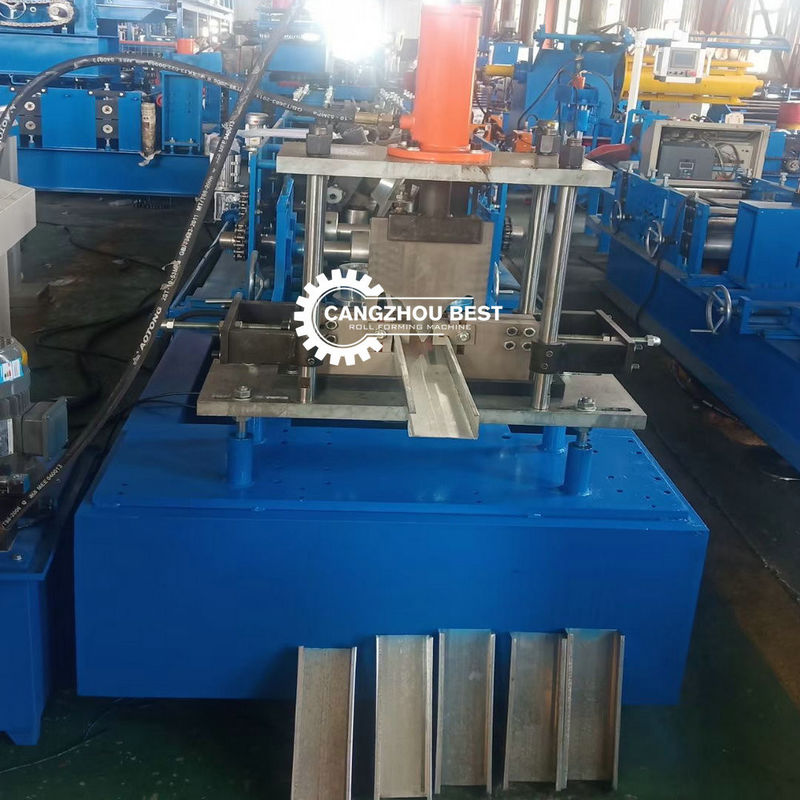

6.cutting part

Features: The hydraulic broken C-beam machine roll bending finished with good compression performance, good flatness, automatic fixed-length cutting, automatic punching, high degree of automation, quick installation

7.Punching part of high quality used c z purlin roll forming machine

Features: punching is added to the flying saw cutting part, by the hydraulic control, mainly in the red c-shaped steel in the hole based, can be set up according to their needs, can be washed from time to punch, simple to use, the durability

Main power: 4kw
Power 4kw (double valve)
Cylinder 2
Material: Cr12 quenching
Quantity 2



8.Hydraulic station

It is controlled by gear wheel oil pump. Afer filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job

Power 3kw
Hydraulic oil 46#

Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes.and two sets of electromagnetism valves.



9.Electric Control System

Adopted PLC , transducer, touch panel from Mitsubishi Japan to ensure high speed with stability, precision and lifetime.

Other electric element are Schneider

Equipped with movable switch , air break, radiator, transformer & electric leakage protector for operation convenience and safety.



10.Counter

One counter gauges length,pulses,and decides length

Omron encoder for length measurement

Products receiving tables

It adopts welded steel and supported roller to transmit the products.



11.Products receiving tables

It adopts welded steel and supported roller to transmit the products.



Sales terms:

  • Payment Method

30% as deposit ,balance payment after inspection while before delivery.

  • Production Period

30 days after the 30% deposit.

  • Packing Method

Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.

  • After-sell Service

In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.

  • Installation

If installation is needed, the seller will dispatch a technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist the seller to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the buyer shall make the following preparation before arrival of technicians.

Position the machine in the buyer’s factory.

Prepare necessary electric wiring.

Prepare material of trial running.

Provide labors for assistance and installation during installation.



FAQ:

1. what is your guarantee period?

Guaranteed against malfunctions due to manufacturing defects for 18 months from the date of loading.



2. Do you provide training for my workers?

The machine has been installed and tested well before shipping. It is easy to operate.

Normally speaking, our customer follows the instruction book and can operate the machine well.?

You can also come to our factory to check the machine and learn how to operate before shipping. It only needs 2 hours and you can operate well.



3. I do not know about the machine and do not know how to install it. Can you install the machine in my factory?

If you need us to send engineers to your factory, you will pay for the travel expense such as visa, round tickets, hotel, food Salary of 100 USD per day per person (from departure from our factory, until we are back to our factory). You also need to take care of his safety.



4. What is included in the machine?

The process for work: decoiler→feeding→roll forming→measuring length→cutting to length→product to stand

The whole line includes a manual decoiler, roll forming machine and product stand. when you get the machine in your factory, you just need to do following 3 things, and then you can start working.

a. Put the machine on the flat level ground.

b. Inject gear oil and hydraulic oil.

c. Connect 3 phase electric wire.
