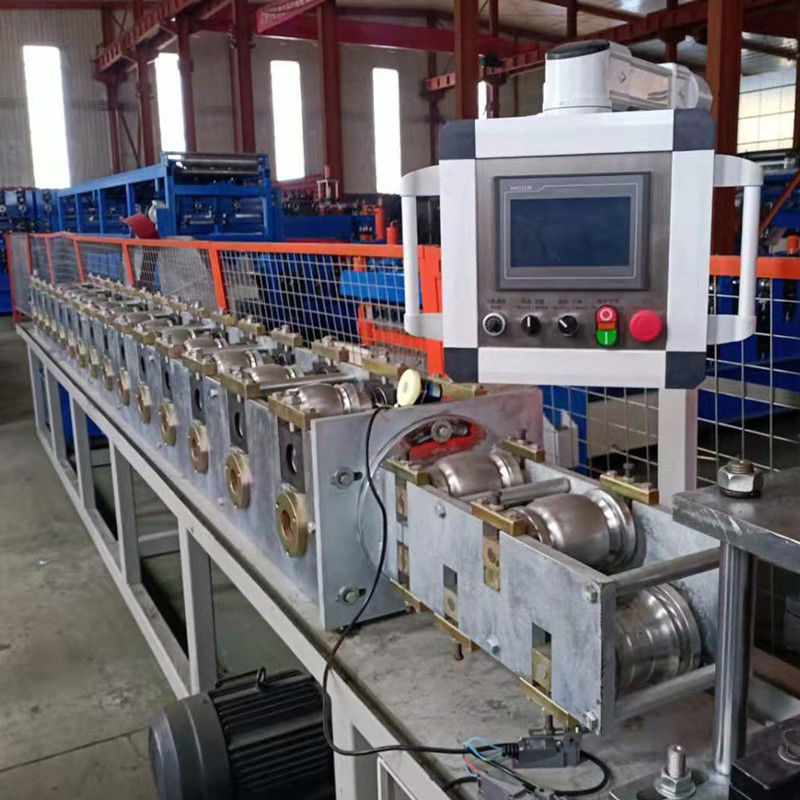

Steel Roll Up Shutter Door Roll Forming Machine 12m/Min

Steel Roll Up Shutter Door Roll Forming Machine 12m/Min
Steel Roll Up Shutter Door Roll Forming Machine 12m/Min Steel Roll Up Shutter Door Roll Forming Machine 12m/Min

Large Image :  Steel Roll Up Shutter Door Roll Forming Machine 12m/Min

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY77
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

Steel Roll Up Shutter Door Roll Forming Machine 12m/Min

Description
Product Name: Steel Roller Shutter Door Roll Forming Machine Roll-up Door Slat Making Machine Machine Speed: 8-12m/min
Driven System: Chain Or Gear Box Control System: PLC
Cutting Type: Hydraulic Warranty: 2 Years
High Light:

steel shutter door roll forming machine

,

shutter door roll forming machine 12m/min

,

gearbox driven automatic rolling shutter machine

Steel roller shutter door roll forming machine

Roller Shutters are one of the most versatile door products available for access control to almost all sizes of opening and perfect for covering and securing doorways, windows and other apertures.

Our factory is specialize in designing, making and installing roller shutter door forming machine. Our machines are selled all over the world.

Working flow
Steel Roll Up Shutter Door Roll Forming Machine 12m/Min 0
Machine components

No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Hydraulic Cutting Device 1 Set
4. PLC Control Box 1 Set
5. Hydraulic Pump 1 Set
6. Output table 1 Set



Decoiler

Type Manual type(standard) Hydraulic type(option)
Width 300mm 500mm
Capacity From 3-5tons From 5-15 tons
Inner diameter φ450-550mm φ450-550mm
Outer diameter φ1500mm φ1800mm


roll forming

Item Parameter detail
Processing Material GI and PPGI
Material thickness 0.25-0.8mm
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel
plate type Pillar type(option)

Plate thickness:20mm Pillar thickness:30mm
Painting:normal painting painting:Chroming
Forming stations 10-22 stations(according to the profiles)
Machine rollers

high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming

Machine Shaft φ60-70mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision
Machine bearings China Haerbin bearing or SKF international bearing(option)
Driving system 1 inch chain or gear box(option)
Machine power 3kw-5.5kw(according to the profiles)
Machine working speed 8-12m/min or 10-30m/min(option)
Machine adjust type After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm


Cutting

Type

Mould cutting type

Blade material Cr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision

Blade processing wire-electrode cutting, but the upper balde can not be straight. this is technology
Working Hydraulic type


Stacker

Type

Manual

 Auto(option)

Length 1.5m-2m 6m or 12m


PLC

Main item Parameter detail
PLC

Delta(standard) or according to your request


Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase


Hydraulic pump

Main Item Parameter detail
Motor

3kw China brand or according to your request

Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan

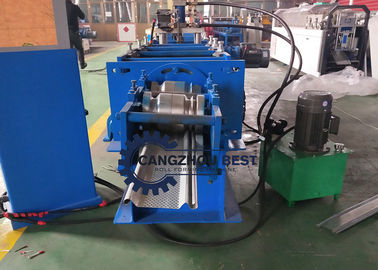

Steel Roll Up Shutter Door Roll Forming Machine 12m/Min 1

Steel Roll Up Shutter Door Roll Forming Machine 12m/Min 2

Steel Roll Up Shutter Door Roll Forming Machine 12m/Min 3
FAQ

1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

2) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly

3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.

4) Q:What can you do if the machine broken?
A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.

6) Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil
