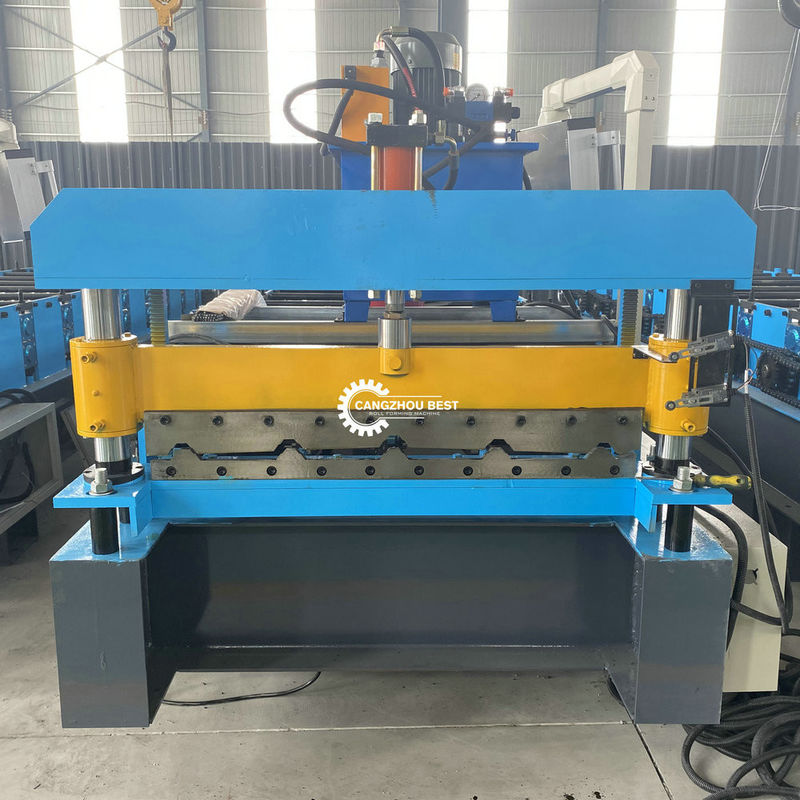

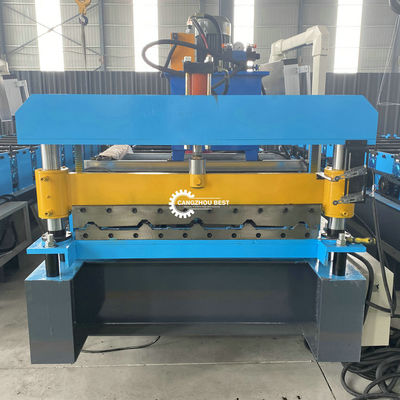

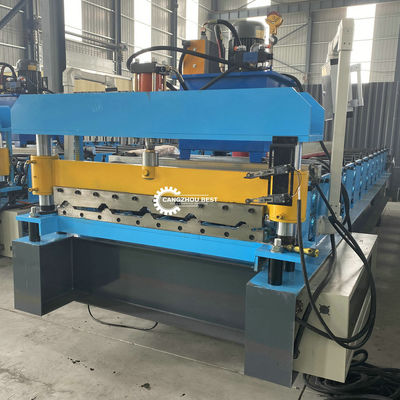

0.8mm Ibr Double Layer Roofing Sheet Roll Forming Machine Supplier

0.8mm Ibr Double Layer Roofing Sheet Roll Forming Machine Supplier
0.8mm Ibr Double Layer Roofing Sheet Roll Forming Machine Supplier 0.8mm Ibr Double Layer Roofing Sheet Roll Forming Machine Supplier

Large Image :  0.8mm Ibr Double Layer Roofing Sheet Roll Forming Machine Supplier

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE BV SGS
Model Number: YX-840
Payment & Shipping Terms:
Minimum Order Quantity: 1set/month
Price: USD6500-25500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

0.8mm Ibr Double Layer Roofing Sheet Roll Forming Machine Supplier

Name: 0.8mm IBR Sheet Trapezoidal Roof Press Making Machine Roll Forming Machinery Roller Material: 45# Steel
The Shaft: 70mm Cutting Blade Material: Cr12
Screen: Color Touch Screen Control System: PLC
Sheet Width: 840mm Speed: 8-12m/min
Rolling Thickness: 0.25-0.8mm
High Light:

ibr double layer roofing sheet roll forming machine


0.8mm double layer roofing sheet roll forming machine


ibr double layer forming machine

0.8mm IBR Sheet Trapezoidal Roof Press Making Machine Roll Forming Machinery​


1. Company information:

    Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.


2. Main Parts of Roll Forming Machine

The forming machine is mainly composed of manual decoiler, the main frame, rollers, a hydraulic station, the electric motor, a hydraulic cutter, and a PLC control cabinet.
1.Manual decoiler:It is used to support the steel coil and uncoil it in a turnable way.Loading capacity:about 5T
2.Main frame:The main frame is made of 300mm H-shaped steel, which is firm and stable
3.Solid rollers:Multi-row rollers are used for molding, solid rollers are more conducive to molding than hollow rollers, and they are strong and durable.
4.Hydraulic station & Main electric motor:This is the main source of power for the machine
5.PLC control cabinet:It mainly controls machine production, and can adjust the production speed and quantity

3. Parameters

Main Frame
300/350/400mm H beam steel
Manual decoiler or Hydraulic decoiler or No decoiler
Forming speed
12-20rows of rolles
Shafts materials
45# steel
Shafts diameter
70mm to 90mm
Roller materials
Main motor power
Cutter stype
Hydraulic cutting
Hydraulic power
3kw to 4kw(It can be customized)
This machine will automatically measure and cut the length and quantity
as per clients set on the PLC touch screen
Length cut Accuracy
PLC control system
Delta or Siemens


4. Machine production process

Drawing confirmation
After confirming the final profile with the customer, the team of 12 engineers worked out detail workable
parts CAD drawings; After 5 recheck, the production manager arrangement the material for all machine parts.
Start production
Our company owns 12sets rough lathe machine, 20sets precise lathe machine, and 30sets shearing machine, all machine parts start to manufacture.
Product Inspection
Our company Own 3sets hard test machine, and 4sets surface thickness Chromium test machine.
Roller and shaft: Our Inspect team test 90% wheels and shafts, confirm all parts size precise and performance after processing. Our Inspect team test all roller surface, confirm all part surface paint above 5um.
Mainframe and medium plate: Our Inspect team tests the mainframe and plate cutting precise.
Assembling machine
5 workers assemble and welding one machine body frame by three days.
Machine painting
Putty ensure weld parts surface smoothly, and environment-friendly paint ensures protect worker body and environment.
Machine Manual use test
Confirm the output sheet tolerance within 2mm.
Cutter production
According to the finally manufacture sheet, confirm the blade precise profile, Cr12 MOV steel cutting knife finished by laser cutting.
To protect the machine surface clear and without damage, we paint again and package by the film.


Why choose us?

1. Our company owned a professional design team, we can design different profiles according to customer’s demands.
2. We design and manufacture machines using advanced standard technology. We have strict control over the quality of the machines, our principle is that “never let one unqualified Machine leave our factory”.
3. Our machines are controlled by computer, PLC display, simple operation, stable and reliable operation, durable and maintenance-free.
4. Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
5. Our machine has a long warranty and you can use it without worry after purchase.
6. After purchasing our machine, we will offer easily damaged parts freely.
7. All use well-known brand appliances.
8. Multilingual control system, including Spanish, Russian, English and Chinese.
9. Powerful teach teams with more than 12 years of working experience will help you, improve the design if it is not perfect before selling.
10. 24*7 hours before and after service in English, Russian, Spanish and others.

5. Packing

Package & Payment & Delivery
1 Package details Nude fasten up in container or under your requests
2 Payment terms

30% TT for deposit balance against copy of B/L

100% L/C at sight

3 Delivery time Within 30 days after receipt deposit
4 Port of shipment XINGANG TIANJIN



6. Installation and Training:

1. Installation and training:

A.If buyers visit our factory and check the machine, we will teach you how to install and use the machine,

and also trainyour workers/technician face to face.

B.Without visiting, we will send you user manual and video to teach you to install and operate.

C.If buyer needs our technician to go to your local factory, please arrange board and lodging and

other necessary things.

2. after Service
A.One year guarantee for whole machine.
B.24 hours technical support by email or phone call.
C.If there is any problem found of the machine, we will repair it for free in one year.


Raw materials

In order to help customer save time find good supplier for materials: Prepainted galvanized steel coil, galvanized steel coil, galvalume steel coil (Aluzinc coil), aluminium coil and so on, we can directly provide customer high quality coil with compatitive price

We can produce according to your requirements.
