Product Details:
|
| Name: | Double Layer 5v Roofing Panel Sheet Roll Forming Machine Popular | Warranty: | 2 Years |
|---|---|---|---|
| Condition: | New | Place Of Origin: | Hebei,China |
| Roller Material: | 45# Steel | Custom: | Yes |
| Production Capacity: | 10-15m/min | Voltage: | 380v |
| Cutting Blade: | Cr 12 High Grade Steel | Power: | 3+3kw |
| High Light: | 5v roofing sheet roll forming machine,double layer roofing sheet roll forming machine,5v sheet double layer forming machine |
||
Double Layer 5v Roofing Panel Sheet Roll Forming Machine Popular
Chile popular Double layer roofing machine: can produce two type sheets, The input material are both 1000 mm width with thickness 0.3-0.8mm. Machine speed is 15m per minute. With pre-cutting device and double inches chain. This machine cheaper and stable. Widely used. We can also supply you the PPGI and GI coils. We can put the coils with the machine in the same container.
1. Machine Advantage:
1) Forming machine rollers are manufactured from high quality bearing 45 # steel(not A3 steel), which make roller more wearable and longer life;
2) Forming machine housing is manufactured from H steel(not angle iron),which the machine run in stable situation and avoid vibration to affect forming precision;
3) The key components of PLC control system, electric switches, electric motors, drives and hydraulic componentsare famous brands to ensure the machines in good and stable working order for long time;
4) Forming machine all parts with special treatment for anti-corrosion and long life(shaft chromeplated, straining beam galvanized ,screw rod black painted);
5) Forming machine all parts baking finishing and then assembly
2. Machine Specifications
| 1 | Coil Type | Pre-painted coil,Galvanized steel |
| 2 | Width | 1000mm |
| 3 | Thickness range | 0.2-0.6mm |
| 4 | Yield stress(mm) | Q235 |
| 5 | Effective width | 870/900mm |
|
1 |
Power Requirement
|
Voltage | (380V 50HZ),or according client require |
| Main Motor power | 5.5kw | ||
| Cutter power | 5.5kw | ||
| 2 | Forming speed | 10-15m/min | |
| 3 | Forming stations | 900:11row axis 870:13 row axis diameter 70 axis | |
| 4 | Main Frame | 300H beam | |
| 5 | Sidewall thickness | 14mm | |
| 6 | Forming shaft diameter | 70mm 0.01mm-0.03mm(Grinding) | |
| 7 | Chains | 1inch chain drive | |
| 8 | Type of cutting | Roll formed and length-set cutting | |
| 9 | Control system | PLC control | |
| 10 | Install dimension(depend on the final design) | 7.3m×1.2m×1.3m | |
| 11 | Total weight (Approx) | 5T | |
| 12 | Roller | High grade 45# steel, hard chrome plated | |
| 13 | Feeding system | Guide type | |
| 14 | Cutting blade | Cr12 | |
| 15 | Frequency changer | Delta | |
2)Components and Function
|
Manual Decoiler
|
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled automatically. Loading capacity:5T Inner diameter: 450-508mm |
|
Guiding Device
|
Adopt guiding bar and sliding block to control the width and position of the steel sheet. Pre-cutter used to cut sheet before roll forming , saving material . |
|

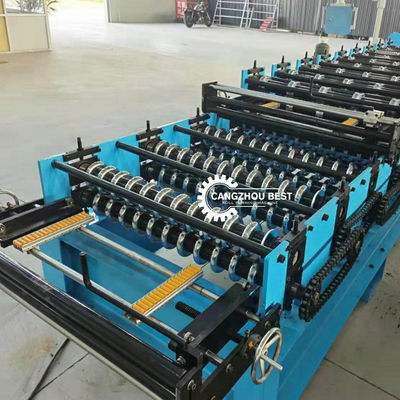

Roll Forming System
|
Material of rollers:High grade 45# steel,roller surfaces polishing, hard plating chrome coated 0.05mm , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped. the 5mm thick sleeve instead of galvanized pipe.To make the shaft and rollers more stable in order to make the profile formed fitted. |
|

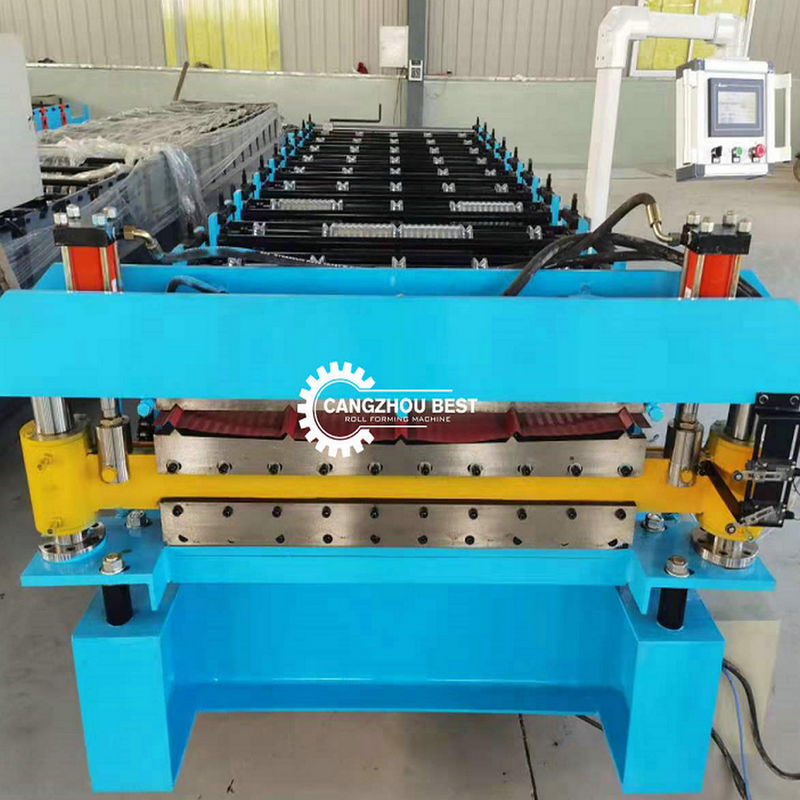

Cutting device
|
A. Adopts post cutting, the cutting blade material is Cr12 with quenched treatment, after cutting, there is no material wasted. B. Adopts welded frame for good rigidity. C. The cutting action is drove by the power from hydraulic station which guarantees the procession of the cutting and low noisy, long life. |
| Hydraulic System | It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. |
|
PLC Control System
|
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use PLC:Delta |
| Run out table | To receive the finished products. |
High quality rollers will help to produce the beautiful and high quality profile. That will satisfy your customers.
Using high qualiy thick shaft, the strength is more durable.
The main body of the body without welding, all the use of cast steel, prevent the host body deformation.
PLC Control System
Usually we prodvide the Delta PLC control system, but we can make that according to your need.
4. our service
Free technical support and free accessories supply.
Engineer available to service machinery overseas.
One year warranty is provided.
Long life technical guidance for free.
We always offer technical support, quick response, all your inquire will be replied in 24 hours.
5. Application:
